HorizonREF: TECH2026040ac6
HORIZON SPF-10II | Unkn.
Available Nowused
Spécifications Techniques
Catégorie
Folding Machines
Marque
Horizon
Modèle
HORIZON SPF-10II
Couleurs d'Impression
4 Colors
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | HORIZON SPF-10II |
| Format Max Feuille | 330 × 470 mm |
| Dimensions | 2,130 × 610 × 850 mm |
| Poids | 280.00 kg |
Description

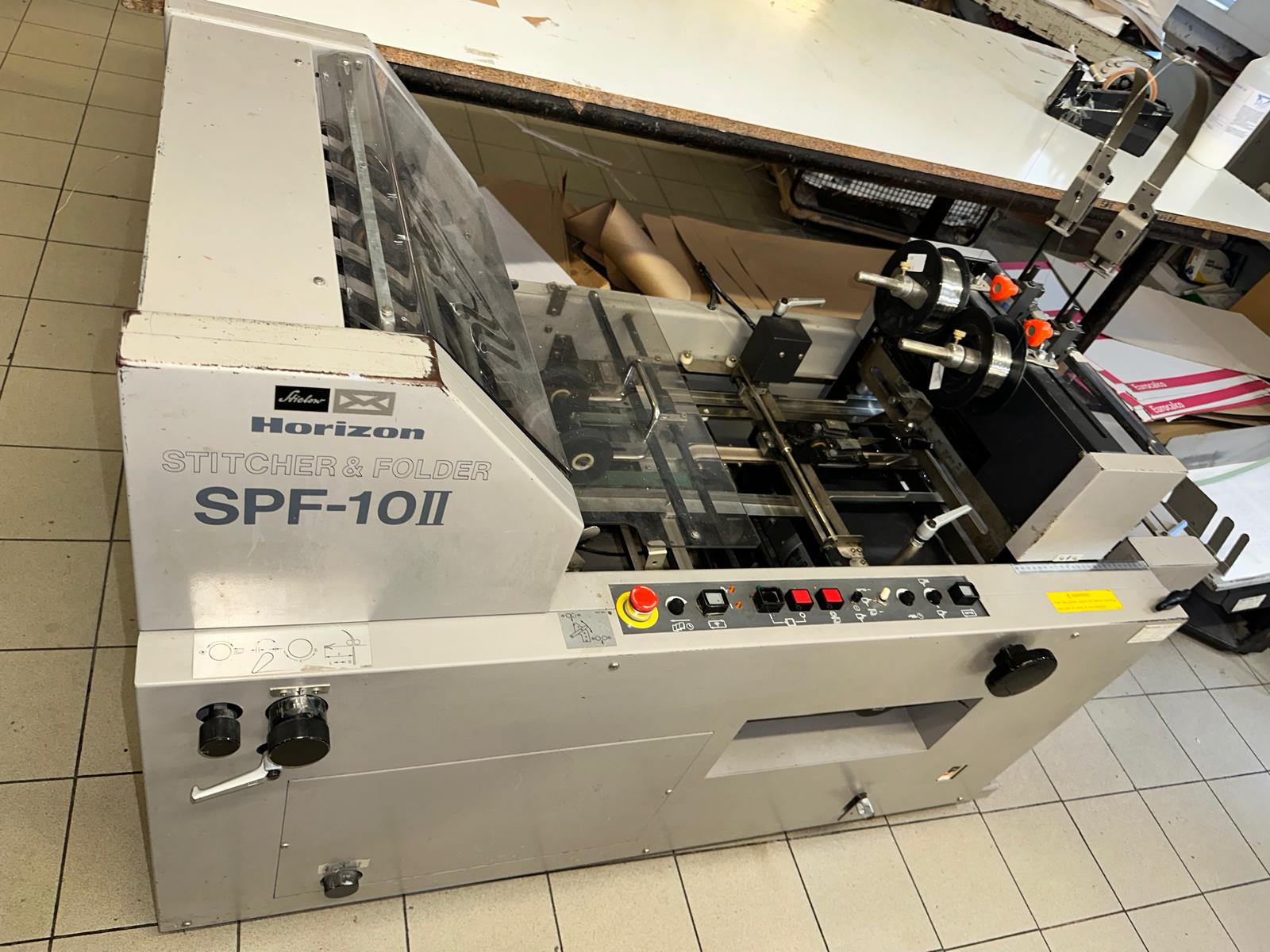

Configuration: Saddle stitching and folding unit (booklet maker)
Brand: Horizon International Inc. (Kyoto, Japan)
Model: SPF-10II
Format Adjustment: Manual
Stitching Heads: 2 standard, expandable up to 4
Stitching Options: Saddle stitch, block/side stapling, corner stapling, ring eyelet stitching (with optional heads)
Min Infeed Format: 148 × 148 mm
Max Infeed Format: 330 × 305 mm
Min Sheet Size (Stitching & Folding): 210 × 210 mm
Max Sheet Size (Stitching & Folding): 330 × 470 mm
Min Sheet Size (Top Stitching): 148 × 210 mm
Max Sheet Size (Top Stitching): 330 × 364 mm
Processing Thickness: Min. 2 sheets – Max. 4 mm
Min Staple Spacing: 73 mm
Stitching Wire Gauge: 26–28
Stitching Wire Diameter: 0.52 mm
Production Speed: Up to 2,800 booklets/hour
Control System: Manual setup with motor on/off control
Applications: Booklet making, brochure production, saddle-stitched documents, corner stapling
Compatible Modules: FC-10II front trimmer, MC-80 / VAC-100 collators, short conveyor
Machine Dimensions (L × W × H): 2,130 × 610 × 850 mm
Weight: 280 kg
Power Supply: 230V, 50Hz, single phase
Power Consumption: 0.5 kW
