RuizhiREF: TECH202604478a

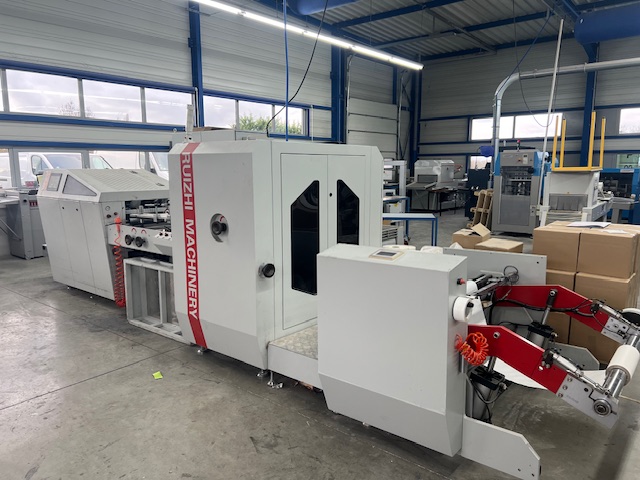

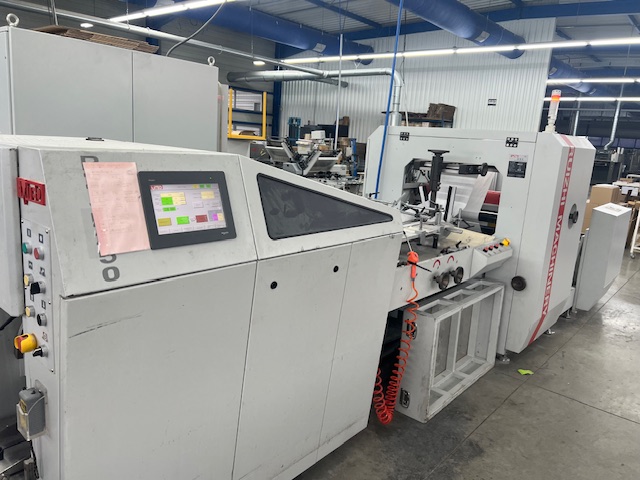

Ruizhi RZJD G250J Paper Bag Machine | 2019
Available Now2019used
Spécifications Techniques
Catégorie
Paper bag
Marque
Ruizhi
Modèle
Ruizhi RZJD G250J Paper Bag Machine Flat V‑Bottom
Année
2019
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Ruizhi RZJD G250J Paper Bag Machine Flat V‑Bottom |
| Format Max Feuille | 45 x 25 cm (17 x 9 inch) |
| Vitesse d'Impression Max | 50 – 320 bags/min (up to ~350 depending on configuration) |
| Dimensions | 7100 x 3000 x 2200 mm |
| Poids | 4500.00 kg |
Description
Configuration: Automatic V-bottom / flat bottom paper bag making machine (roll-fed production line).
Year: 2019.
Type of bag: V-bottom / flat bottom paper bags (food packaging, kraft paper bags, shopping bags).
Max paper size (feed width): 160 – 780 mm.
Min paper size: approximately 70 mm bag width capability.
Bag length range: 100 – 450 mm.
Bag width range: 70 – 250 mm.
Gusset range: 20 – 120 mm.
Production system: Continuous roll-to-bag forming line with integrated gluing, tube forming, bottom folding, and cutting.

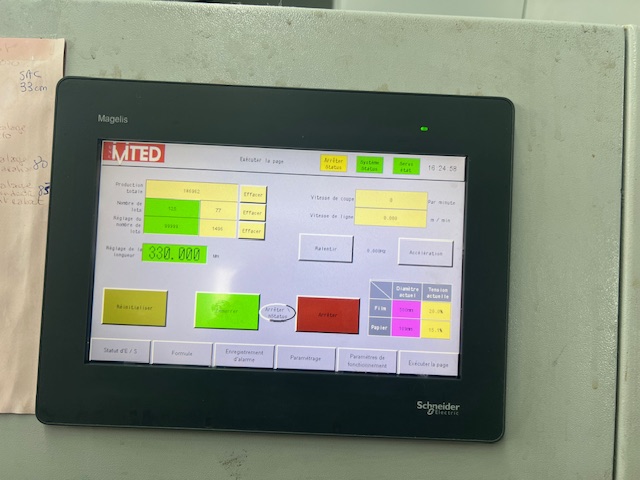

Control system: PLC-based servo system (TRIO controller + HMI touch screen).
Servo system: Japanese servo motors with automated tension and registration control.
Max speed: approximately 50 – 320 bags/min (up to ~350 depending on configuration).
Production capacity: high-speed continuous industrial output for medium and large-scale production.
Paper material range: 35 – 80 g/m² kraft or printed paper.

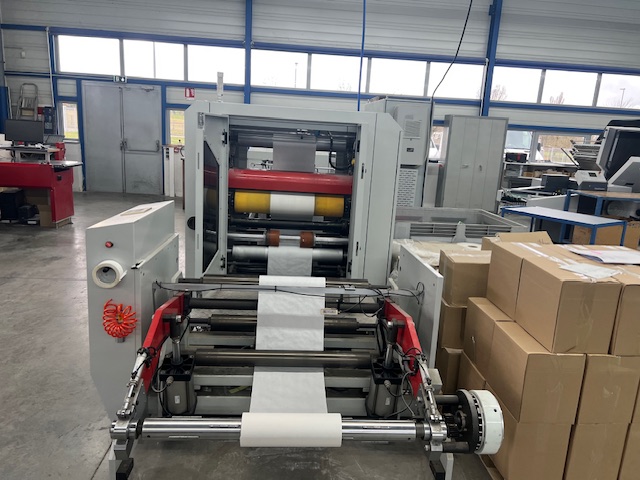

Roll diameter: up to 1000 mm.
Core diameter: 76 mm.
Gluing system: Hot melt / side glue + bottom forming adhesive system (automatic application).
Tension control: Automatic constant tension unwinding system.
Registration system: Photoelectric color mark tracking for printed rolls.
Air requirement: ≥ 0.12 m³/min at 0.6–1.2 MPa.
Power consumption: approximately 17 – 24 kW (depending on configuration).

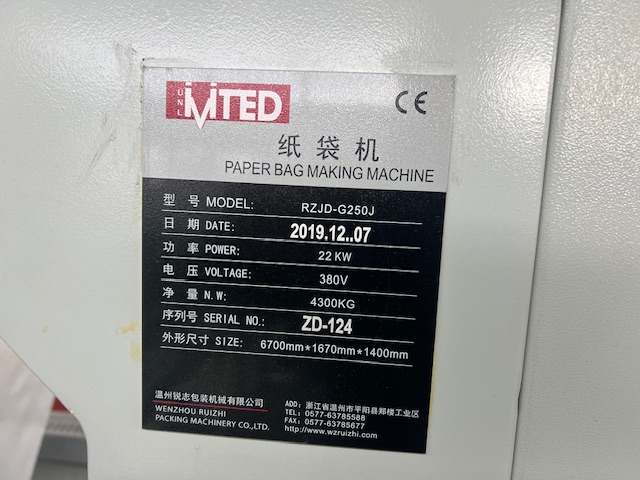

Voltage: 380V, 3-phase industrial supply.
Total weight: approximately 4,500 kg.
Machine dimensions (L x W x H): approximately 7100 x 3000 x 2200 mm.
Applications: Paper shopping bags, food packaging bags, bakery bags, kraft bags, and eco-friendly retail packaging.
Year: 2019.
Type of bag: V-bottom / flat bottom paper bags (food packaging, kraft paper bags, shopping bags).
Max paper size (feed width): 160 – 780 mm.
Min paper size: approximately 70 mm bag width capability.
Bag length range: 100 – 450 mm.
Bag width range: 70 – 250 mm.
Gusset range: 20 – 120 mm.
Production system: Continuous roll-to-bag forming line with integrated gluing, tube forming, bottom folding, and cutting.
Control system: PLC-based servo system (TRIO controller + HMI touch screen).
Servo system: Japanese servo motors with automated tension and registration control.
Max speed: approximately 50 – 320 bags/min (up to ~350 depending on configuration).
Production capacity: high-speed continuous industrial output for medium and large-scale production.
Paper material range: 35 – 80 g/m² kraft or printed paper.
Roll diameter: up to 1000 mm.
Core diameter: 76 mm.
Gluing system: Hot melt / side glue + bottom forming adhesive system (automatic application).
Tension control: Automatic constant tension unwinding system.
Registration system: Photoelectric color mark tracking for printed rolls.
Air requirement: ≥ 0.12 m³/min at 0.6–1.2 MPa.
Power consumption: approximately 17 – 24 kW (depending on configuration).
Voltage: 380V, 3-phase industrial supply.
Total weight: approximately 4,500 kg.
Machine dimensions (L x W x H): approximately 7100 x 3000 x 2200 mm.
Applications: Paper shopping bags, food packaging bags, bakery bags, kraft bags, and eco-friendly retail packaging.
