HeidelbergREF: TECH202604972a
Heidelberg GTO 52-1 DDS | 1999
Available Now1999used
Technical Specifications
Category
Offset Printing Presses
Brand
Heidelberg
Model
Heidelberg GTO 52-1 DDS
Year
1999
Printing Colors
1 Color
Location
L'Isère, France
Technical Specifications
| Model | Heidelberg GTO 52-1 DDS |
| Max Sheet Size | 52 x 36 cm (20 x 14 inch) |
| Max Printing Speed | 8000 sheets / hour |
| Dimensions | 1.62 m x 1.45 m x 1.55 m |
| Weight | 1220.00 kg |
Description
Configuration: 1-color offset press (Single color).
Year: 1999 (later production version of the GTO series).

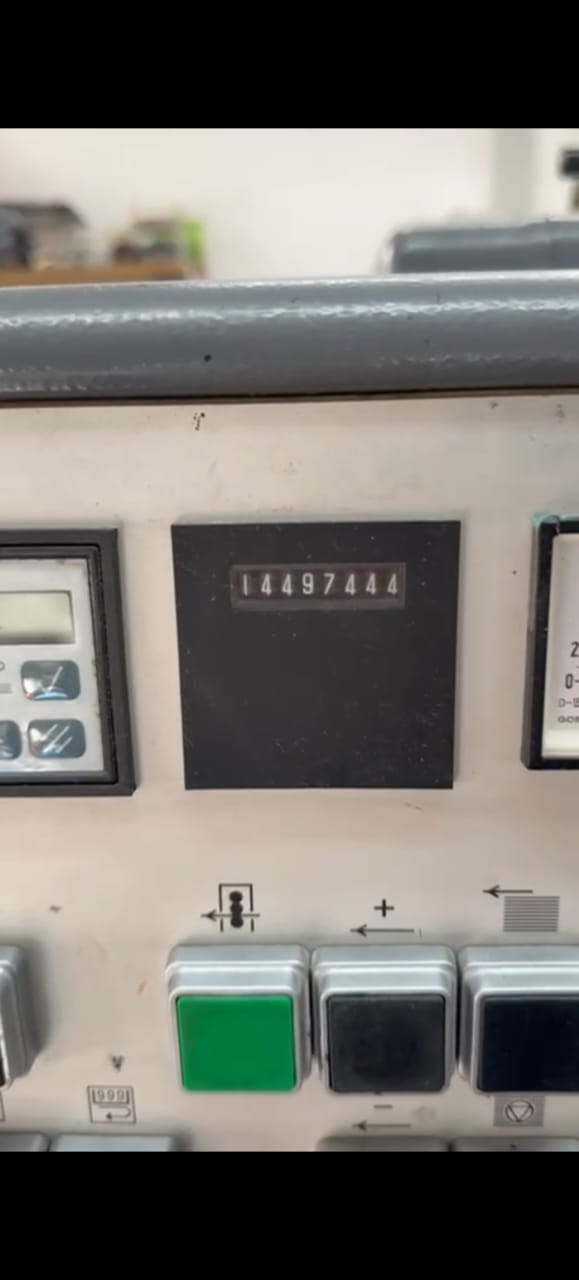

Impressions: Varies by unit (typically 15 to 45 mio.).
Max paper size: 36 x 52 cm (14.17 x 20.47 inches).
Max printing size: 34 x 50.5 cm.
Dampening system: DDS (Direct Dampening System) / Heidelberg continuous alcohol dampening.
Plate changing: Manual plate clamps with quick-action tensioning.
Max speed: 8,000 sheets / hour.
Inking control: Manual duct adjustment with laser-cut ink blades.
Washing devices: Manual (standard) or automatic roller wash-up (optional).
Powder spray system: Mediprint or Weko powder sprayer.
Delivery capacity: Standard low pile delivery.
Substrate thickness: 0.03 mm to 0.40 mm.
Registration: Mechanical pull side guide and swinging gripper.
Total weight: approximately 1,220 kg.
Machine dimensions (L x W x H): 1.62 m x 1.45 m x 1.55 m.
Power consumption: approximately 4.5 kW to 6 kW.
Year: 1999 (later production version of the GTO series).
Impressions: Varies by unit (typically 15 to 45 mio.).
Max paper size: 36 x 52 cm (14.17 x 20.47 inches).
Max printing size: 34 x 50.5 cm.
Dampening system: DDS (Direct Dampening System) / Heidelberg continuous alcohol dampening.
Plate changing: Manual plate clamps with quick-action tensioning.
Max speed: 8,000 sheets / hour.
Inking control: Manual duct adjustment with laser-cut ink blades.
Washing devices: Manual (standard) or automatic roller wash-up (optional).
Powder spray system: Mediprint or Weko powder sprayer.
Delivery capacity: Standard low pile delivery.
Substrate thickness: 0.03 mm to 0.40 mm.
Registration: Mechanical pull side guide and swinging gripper.
Total weight: approximately 1,220 kg.
Machine dimensions (L x W x H): 1.62 m x 1.45 m x 1.55 m.
Power consumption: approximately 4.5 kW to 6 kW.
