HohnerREF: TECH202604fde1

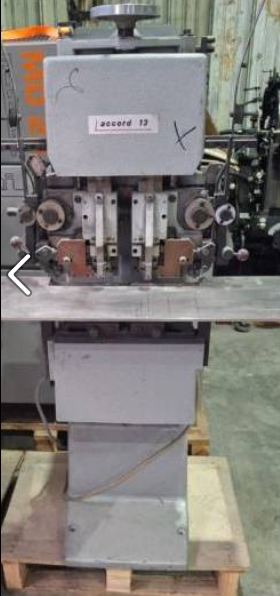

Hohner Accord 13 | 1985
Available Now1985used
Technical Specifications
Category
Post-Press
Brand
Hohner
Model
Hohner Accord 13
Year
1985
Location
L'Isère, France
Technical Specifications
| Model | Hohner Accord 13 |
| Max Printing Speed | 180 stitches / minute |
| Dimensions | 0.85 m x 0.75 m x 1.45 m |
| Weight | 230.00 kg |
Description
Configuration: Single-head heavy-duty wire stitcher.
Year: 1985.
Stitching capacity (thickness): 0.2 mm to 30 mm (up to 40 mm with special accessories).
Stitching types: Saddle stitching (for brochures) and block stitching (for pads).
Table type: Tilting table (switches between flat and saddle mode).
Wire types: Round wire (No. 21 to 28) or flat wire (No. I to VI).
Crown width: 13 mm (Standard).
Max speed: 180 stitches / minute.
Operation: Electric motor with foot pedal activation.
Clamping: Automatic clamping of the material before stitching for precision.
Total weight: approximately 230 kg (507 lbs).
Machine dimensions (L x W x H): 0.85 m x 0.75 m x 1.45 m.
Power consumption: approximately 0.75 kW to 1.1 kW.
Power supply: Typically 3-phase (400V) but can be found in single-phase versions.
Year: 1985.
Stitching capacity (thickness): 0.2 mm to 30 mm (up to 40 mm with special accessories).
Stitching types: Saddle stitching (for brochures) and block stitching (for pads).
Table type: Tilting table (switches between flat and saddle mode).
Wire types: Round wire (No. 21 to 28) or flat wire (No. I to VI).
Crown width: 13 mm (Standard).
Max speed: 180 stitches / minute.
Operation: Electric motor with foot pedal activation.
Clamping: Automatic clamping of the material before stitching for precision.
Total weight: approximately 230 kg (507 lbs).
Machine dimensions (L x W x H): 0.85 m x 0.75 m x 1.45 m.
Power consumption: approximately 0.75 kW to 1.1 kW.
Power supply: Typically 3-phase (400V) but can be found in single-phase versions.
