HohnerREF: TECH2026040dbc

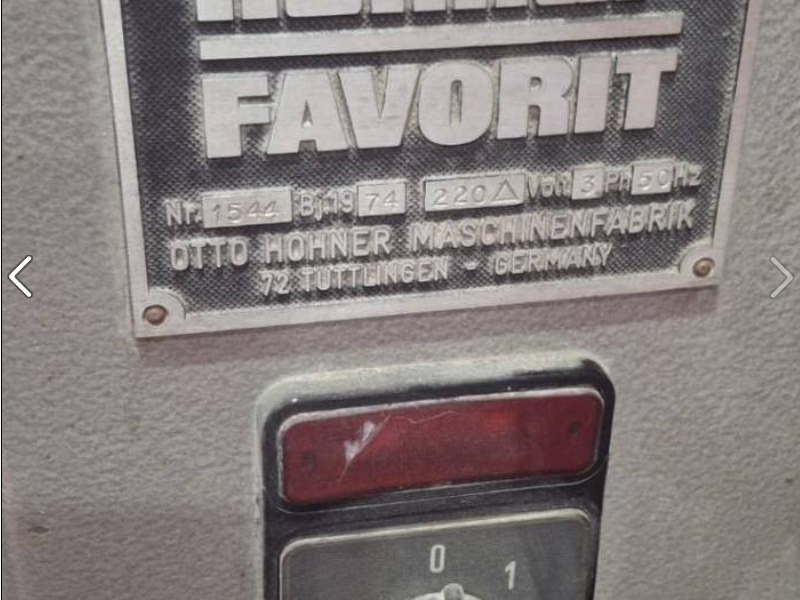

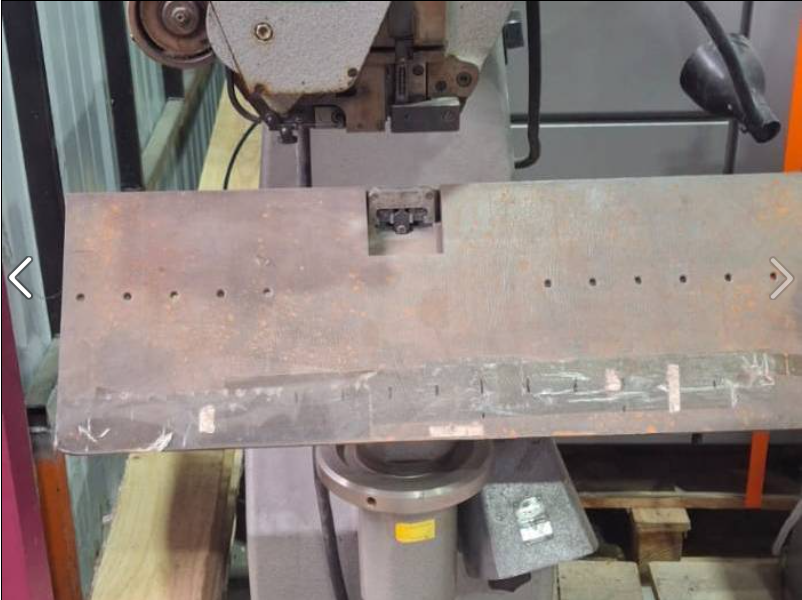

Hohner Favorit stitcher | 1974
Available Now1974used
Spécifications Techniques
Catégorie
Post-Press
Marque
Hohner
Modèle
Hohner Favorit stitcher
Année
1974
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Hohner Favorit stitcher |
| Vitesse d'Impression Max | 120 to 150 stitches / minute |
| Dimensions | 0.70 m x 0.70 m x 1.25 m |
| Poids | 150.00 kg |
Description
Configuration: Single-head manual wire stitcher.
Year: 1974.
Stitching capacity (thickness): 0.2 mm to 18 mm.
Stitching types: Saddle stitching (for booklets) and block stitching (for pads).
Table type: Tilting table for easy conversion between flat and saddle stitching.
Wire types: Round wire (No. 21 to 30) or flat wire (No. I to III).
Crown width: 14 mm (Standard).
Max speed: 120 to 150 stitches / minute.
Operation: Foot pedal activated mechanical clutch.
Safety: Standard finger guard and motor protection switch.
Total weight: approximately 150 kg (330 lbs).
Machine dimensions (L x W x H): 0.70 m x 0.70 m x 1.25 m.
Power consumption: approximately 0.55 kW.
Power supply: Usually single-phase (220V/240V) or 3-phase depending on the motor installed.
Year: 1974.
Stitching capacity (thickness): 0.2 mm to 18 mm.
Stitching types: Saddle stitching (for booklets) and block stitching (for pads).
Table type: Tilting table for easy conversion between flat and saddle stitching.
Wire types: Round wire (No. 21 to 30) or flat wire (No. I to III).
Crown width: 14 mm (Standard).
Max speed: 120 to 150 stitches / minute.
Operation: Foot pedal activated mechanical clutch.
Safety: Standard finger guard and motor protection switch.
Total weight: approximately 150 kg (330 lbs).
Machine dimensions (L x W x H): 0.70 m x 0.70 m x 1.25 m.
Power consumption: approximately 0.55 kW.
Power supply: Usually single-phase (220V/240V) or 3-phase depending on the motor installed.
