JUDREF: TECH20260433c1
JUD 72 | Unkn.
Available Nowused
Spécifications Techniques
Catégorie
Guillotine
Marque
JUD
Modèle

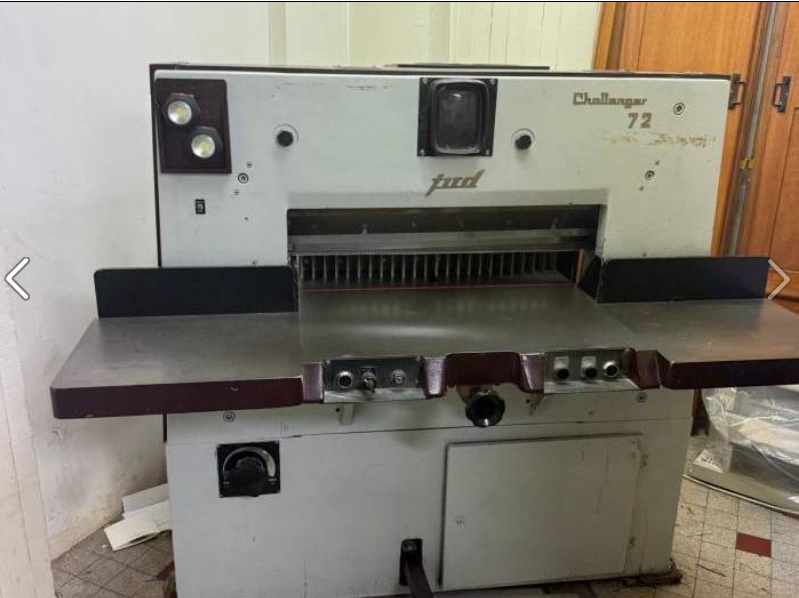

JUD 72 Guillotine
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | JUD 72 Guillotine |
| Format Max Feuille | 72 x 72 cm (28 x 28 inch) |
| Dimensions | 2.08 m x 1.46 m x 1.47 m |
| Poids | 1000.00 kg |
Description
Configuration: Programmable electrical paper guillotine.
Max Paper Width: 72 cm (approx. 28.3 inches).
Max Paper Length: 72 cm.
Pile Height (Thickness): 80 mm (8 cm).
Minimum Cut: 25 mm.
Control System: Programmable electronic controls (often fully refurbished units feature modern digital upgrades).
Safety Features: Equipped with infrared (IR) photo cells and safety covers to protect the operator.
Total Weight: Approximately 840 kg to 1,000 kg depending on specific frame and side table configurations.
Machine Dimensions (L x W x H): Approximately 2.08 m x 1.46 m x 1.47 m.
Power Consumption: Approximately 3.5 kW.
Power Requirements : 380 V / 50 Hz (3-phase).
Max Paper Width: 72 cm (approx. 28.3 inches).
Max Paper Length: 72 cm.
Pile Height (Thickness): 80 mm (8 cm).
Minimum Cut: 25 mm.
Control System: Programmable electronic controls (often fully refurbished units feature modern digital upgrades).
Safety Features: Equipped with infrared (IR) photo cells and safety covers to protect the operator.
Total Weight: Approximately 840 kg to 1,000 kg depending on specific frame and side table configurations.
Machine Dimensions (L x W x H): Approximately 2.08 m x 1.46 m x 1.47 m.
Power Consumption: Approximately 3.5 kW.
Power Requirements : 380 V / 50 Hz (3-phase).
