PolarREF: TECH2026047041

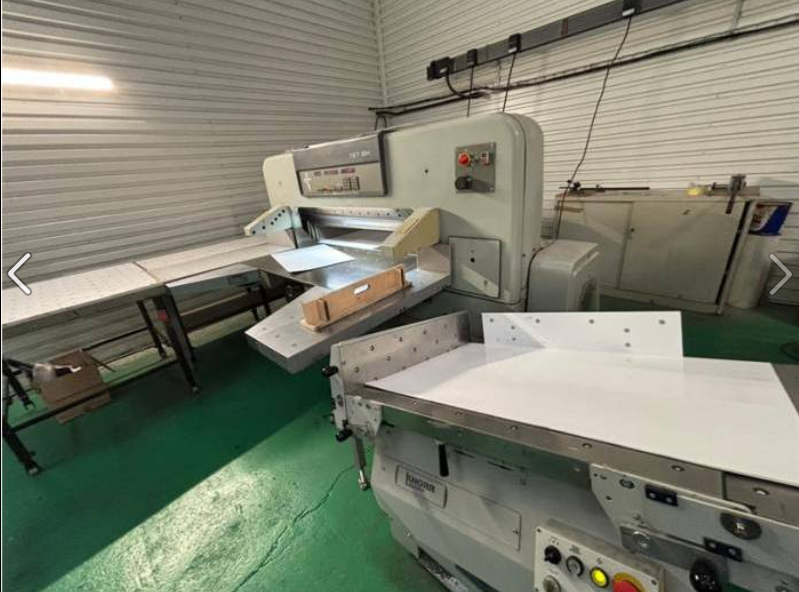

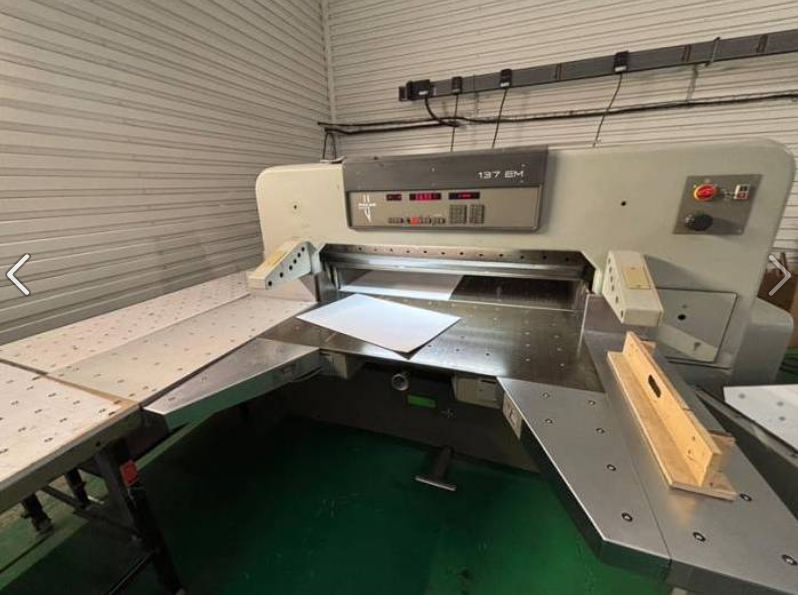

Polar 137 EM | 1992
Available Now1992used
Spécifications Techniques
Catégorie
Guillotine
Marque
Polar
Modèle
Polar 137 EM
Année
1992
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Polar 137 EM |
| Format Max Feuille | 137 x 137 cm (53 x 53 inch) |
| Vitesse d'Impression Max | 45 cycles / minute |
| Dimensions | 2.85 m x 2.65 m x 1.71 m |
| Poids | 4120.00 kg |
Description
Configuration: Programmable hydraulic paper cutter.
Year: 1992.
Cutting width: 137 cm.
Feeding depth: 137 cm.
Feeding height (pile height): 16.5 cm.
Clamp pressure: Minimum 150 daN / Maximum 4,500 daN.
Control system: EM model (Electronic Monitor) with digital display and programmable memory.
Safety features: Infrared light barriers and two-hand cut engagement.
Backgauge speed: 30 cm / second.
Smallest cut without false plate: 2.5 cm.
Smallest cut with false plate: 9.0 cm.
Table type: Chrome-surface air table (main and side tables).
Knife speed: 45 cycles / minute.
Total weight: approximately 4,120 kg.
Machine dimensions (L x W x H): 2.85 m x 2.65 m x 1.71 m.
Power consumption: approximately 5.5 kW to 6.5 kW.
Power supply: 3-phase 380V/400V.
Year: 1992.
Cutting width: 137 cm.
Feeding depth: 137 cm.
Feeding height (pile height): 16.5 cm.
Clamp pressure: Minimum 150 daN / Maximum 4,500 daN.
Control system: EM model (Electronic Monitor) with digital display and programmable memory.
Safety features: Infrared light barriers and two-hand cut engagement.
Backgauge speed: 30 cm / second.
Smallest cut without false plate: 2.5 cm.
Smallest cut with false plate: 9.0 cm.
Table type: Chrome-surface air table (main and side tables).
Knife speed: 45 cycles / minute.
Total weight: approximately 4,120 kg.
Machine dimensions (L x W x H): 2.85 m x 2.65 m x 1.71 m.
Power consumption: approximately 5.5 kW to 6.5 kW.
Power supply: 3-phase 380V/400V.
