PolarREF: TECH2026048d14
Polar 92 EMC MON | 1992.
Sold1992used
Spécifications Techniques
| Modèle | Polar 92 EMC |
| Format Max Feuille | 92 x 92 cm (36 x 36 inch) |
| Dimensions | 2.12 m x 1.80 m x 1.47 m |
| Poids | 2000.00 kg |
Description
Configuration: High-speed programmable hydraulic paper cutter.
Year: 1992.
Max paper width: 92 cm (36.22 inches).
Max paper length: 92 cm.
Max pile height: 11 cm to 13 cm (approx. 4.5 to 5.1 inches).
Dampening/Drive system: Gear box driven knife with hydraulic clamping.

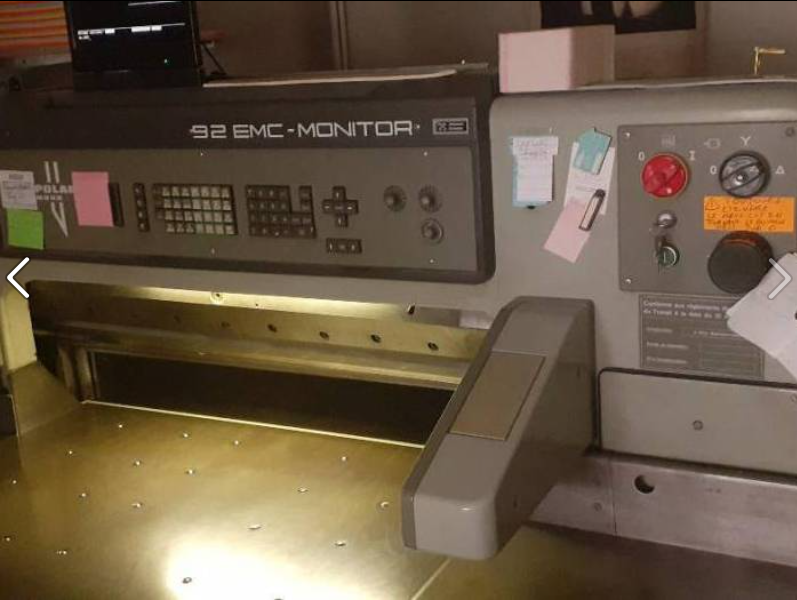

Control system: EMC (Electronic Memory Computer) with programmable digital display.
Clamp pressure: Minimum 150 daN / Maximum 3,000 daN.
Safety features: Infrared photo eyes (light barriers) and two-hand cut engagement.
Backgauge drive: Precision drive for accurate positioning.
Smallest cut: 2.5 cm (or 1 inch).
Table type: Air table (usually chromed) with standard or enlarged side tables.
Total weight: approximately 1,890 kg to 2,000 kg.
Machine dimensions (L x W x H): 2.12 m x 1.80 m x 1.47 m.
Power consumption: approximately 3 kW (4.1 HP) for the main drive.
Power supply: typically 3-phase 220V/380V/400V depending on local configuration.
Year: 1992.
Max paper width: 92 cm (36.22 inches).
Max paper length: 92 cm.
Max pile height: 11 cm to 13 cm (approx. 4.5 to 5.1 inches).
Dampening/Drive system: Gear box driven knife with hydraulic clamping.
Control system: EMC (Electronic Memory Computer) with programmable digital display.
Clamp pressure: Minimum 150 daN / Maximum 3,000 daN.
Safety features: Infrared photo eyes (light barriers) and two-hand cut engagement.
Backgauge drive: Precision drive for accurate positioning.
Smallest cut: 2.5 cm (or 1 inch).
Table type: Air table (usually chromed) with standard or enlarged side tables.
Total weight: approximately 1,890 kg to 2,000 kg.
Machine dimensions (L x W x H): 2.12 m x 1.80 m x 1.47 m.
Power consumption: approximately 3 kW (4.1 HP) for the main drive.
Power supply: typically 3-phase 220V/380V/400V depending on local configuration.
