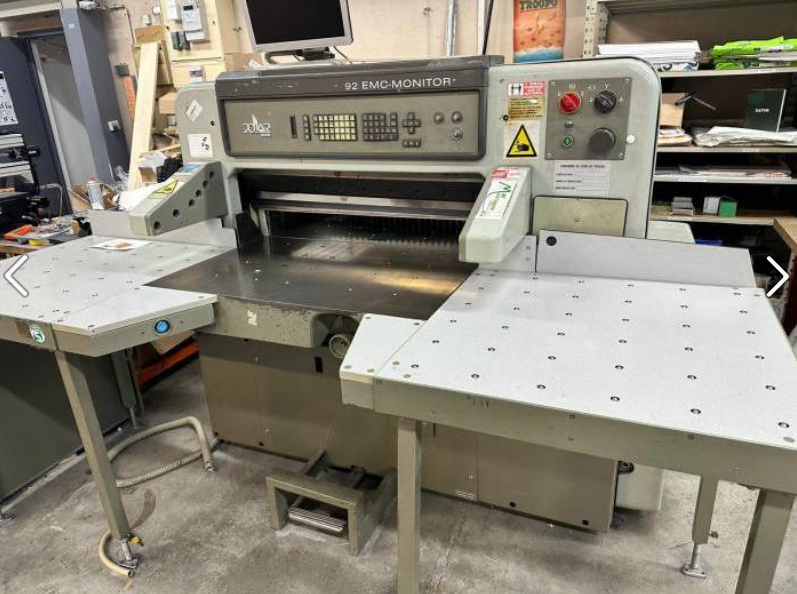

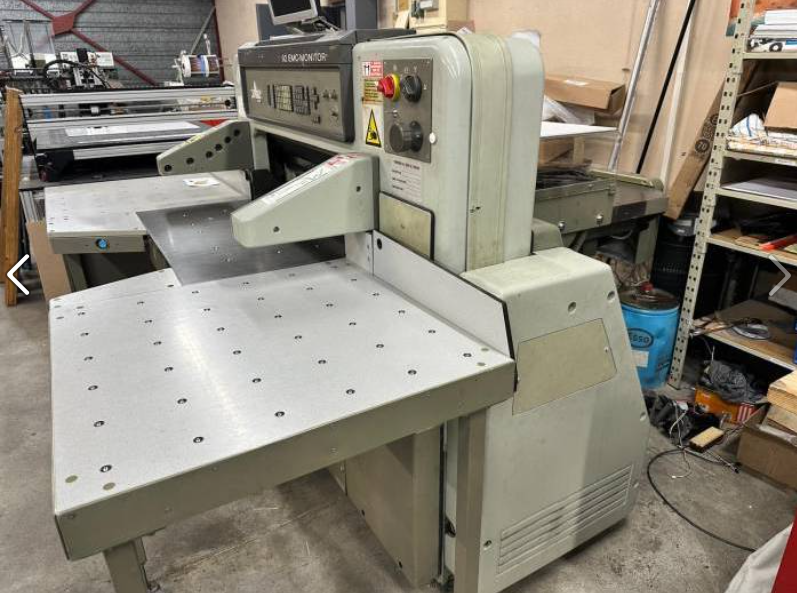

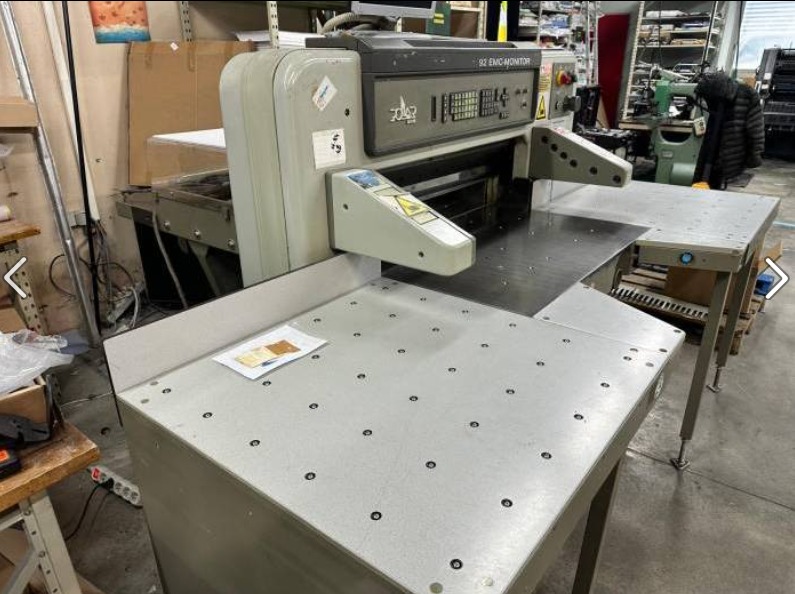

Polar 92 EMC- MONITOR | 1995
Sold1995used
Spécifications Techniques
| Modèle | Polar 92 EMC- MONITOR |
| Format Max Feuille | 92 x 92 cm (36 x 36 inch) |
| Vitesse d'Impression Max | 30 cm / second |
| Dimensions | 2.12 m x 2.16 m x 1.54 m |
| Poids | 1890.00 kg |
Description
Configuration: High-speed programmable hydraulic paper cutter with CRT monitor.
Year: 1995.
Cutting width: 92 cm.
Feeding depth: 92 cm.
Feeding height (pile height): 13 cm.
Clamp pressure: Minimum 150 daN / Maximum 3,000 daN.
Control system: EMC-MONITOR (Electronic Memory Computer) with a 12-inch screen and advanced graphic operator guidance.
Safety features: Infrared light barriers, self-checking safety system, and two-hand operation.
Backgauge speed: 30 cm / second.
Smallest cut without false plate: 2.5 cm.
Smallest cut with false plate: 9.0 cm.
Table type: Chrome-plated air table with standard side tables.
Knife speed: 45 cycles / minute.
Total weight: approximately 1,890 kg.
Machine dimensions (L x W x H): 2.12 m x 2.16 m x 1.54 m.
Power consumption: approximately 3.0 kW.
Power supply: 3-phase 380V/400V.
Year: 1995.
Cutting width: 92 cm.
Feeding depth: 92 cm.
Feeding height (pile height): 13 cm.
Clamp pressure: Minimum 150 daN / Maximum 3,000 daN.
Control system: EMC-MONITOR (Electronic Memory Computer) with a 12-inch screen and advanced graphic operator guidance.
Safety features: Infrared light barriers, self-checking safety system, and two-hand operation.
Backgauge speed: 30 cm / second.
Smallest cut without false plate: 2.5 cm.
Smallest cut with false plate: 9.0 cm.
Table type: Chrome-plated air table with standard side tables.
Knife speed: 45 cycles / minute.
Total weight: approximately 1,890 kg.
Machine dimensions (L x W x H): 2.12 m x 2.16 m x 1.54 m.
Power consumption: approximately 3.0 kW.
Power supply: 3-phase 380V/400V.
