HeidelbergREF: TECH2026047689

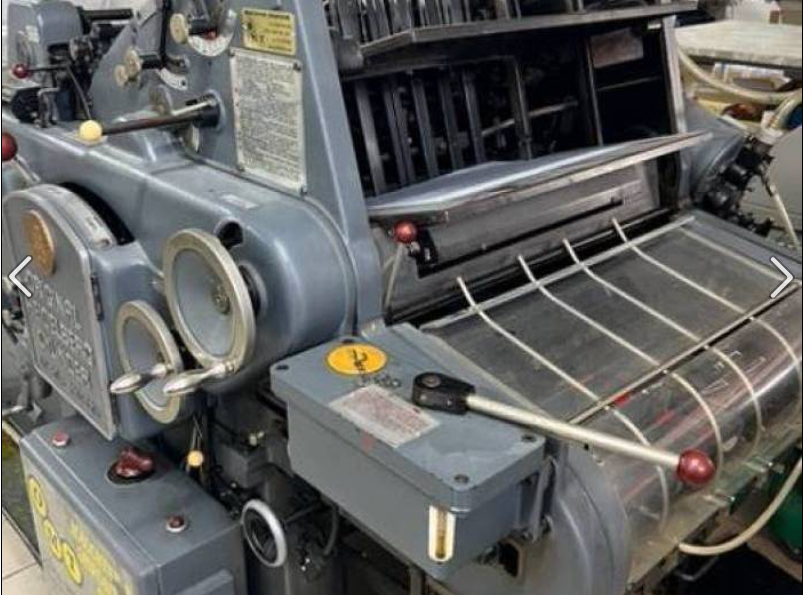

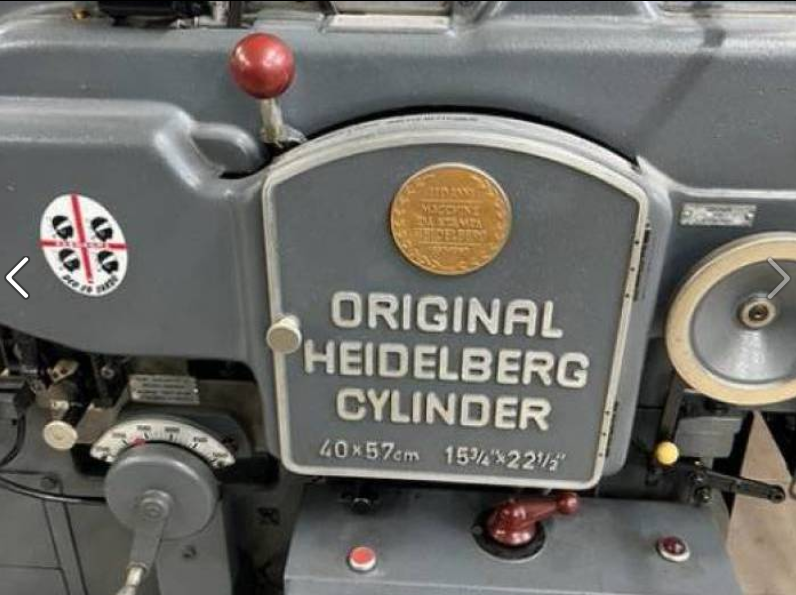

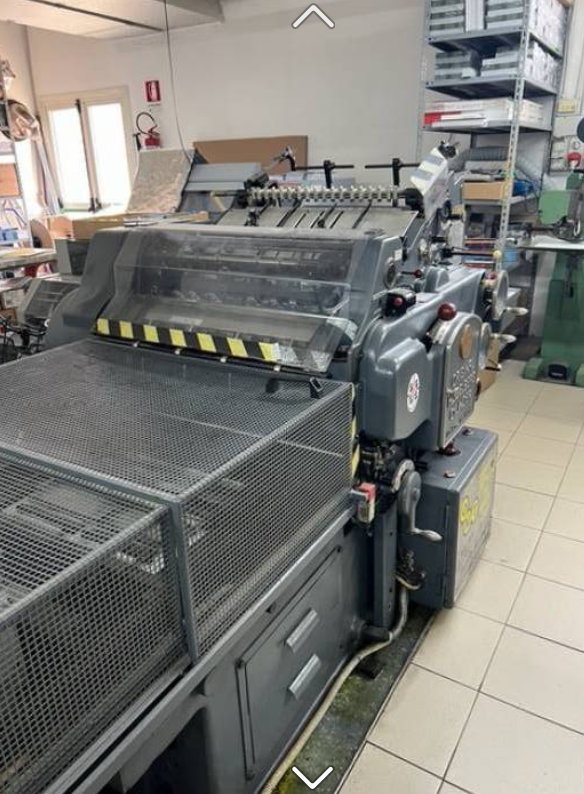

Heidelberg KSB Cylinder 40x57 | 1963.
Available Now1963used
Technical Specifications
Category
Packaging
Brand
Heidelberg
Model
Heidelberg cylinder 40x57
Year
1963
Location
L'Isère, France
Technical Specifications
| Model | Heidelberg cylinder 40x57 |
| Max Sheet Size | 57 x 40 cm (22 x 15 inch) |
| Max Printing Speed | 5,000 sheets / hour |
| Dimensions | 2.70 m x 1.45 m x 1.50 m |
| Weight | 3500.00 kg |
Description
Configuration: Cylinder letterpress (Original Heidelberg Cylinder).
Year: 1963.
Max paper size: 40 x 57 cm (15.75 x 22.5 inches).
Min paper size: 13 x 18 cm.
Max printing size: 38 x 55 cm.
Inking system: Large ink fountain with multiple distribution and form rollers.
Form locking: Traditional chase and furniture system.
Max speed: 5,000 sheets / hour.
Inking control: Manual screw adjustment on the ink duct.
Washing devices: Manual.
Powder spray system: Optional (usually Weko).
Delivery capacity: Standard high pile delivery.
Substrate thickness: 0.04 mm to 0.70 mm (excellent for heavy cardboard and die-cutting).
Registration: High-precision mechanical grippers and side lays.
Total weight: approximately 3,500 kg (7,716 lbs).
Machine dimensions (L x W x H): 2.70 m x 1.45 m x 1.50 m.
Power consumption: approximately 3.0 kW to 4.0 kW.
