HeidelbergREF: TECH202604a8fb

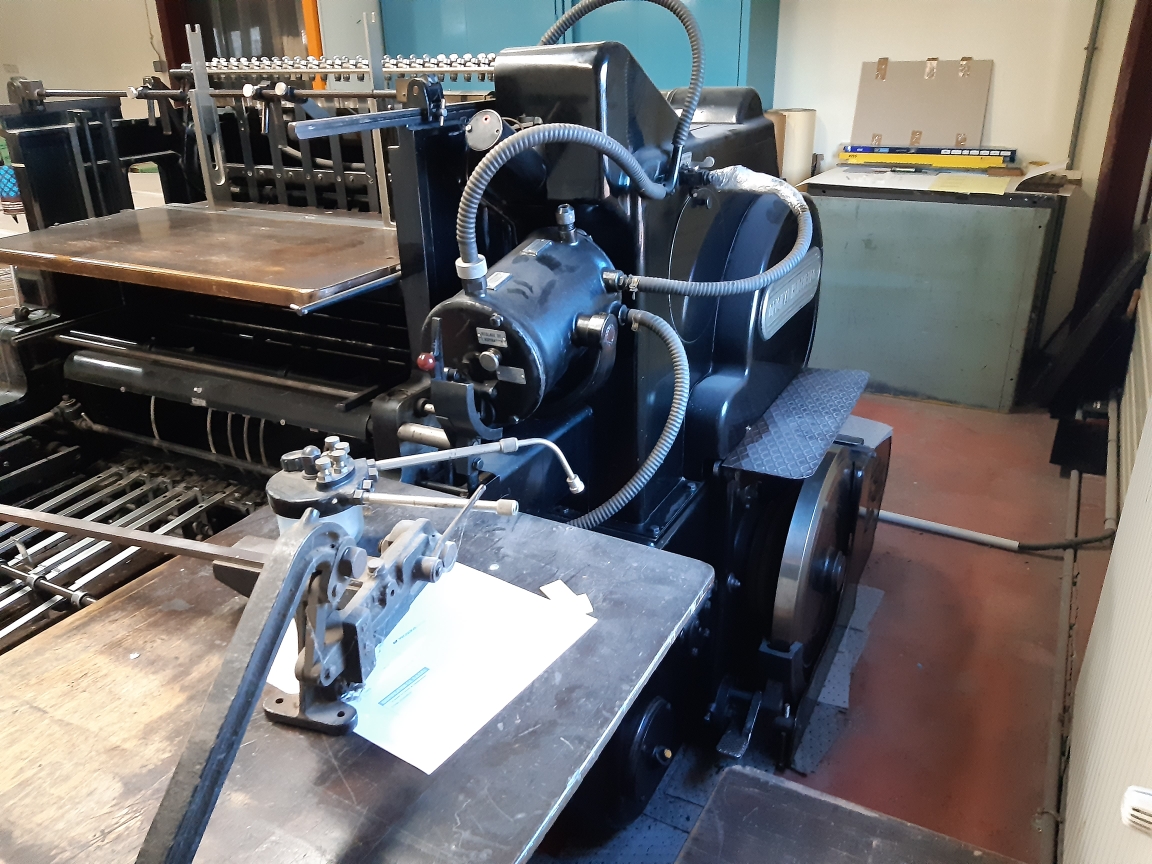

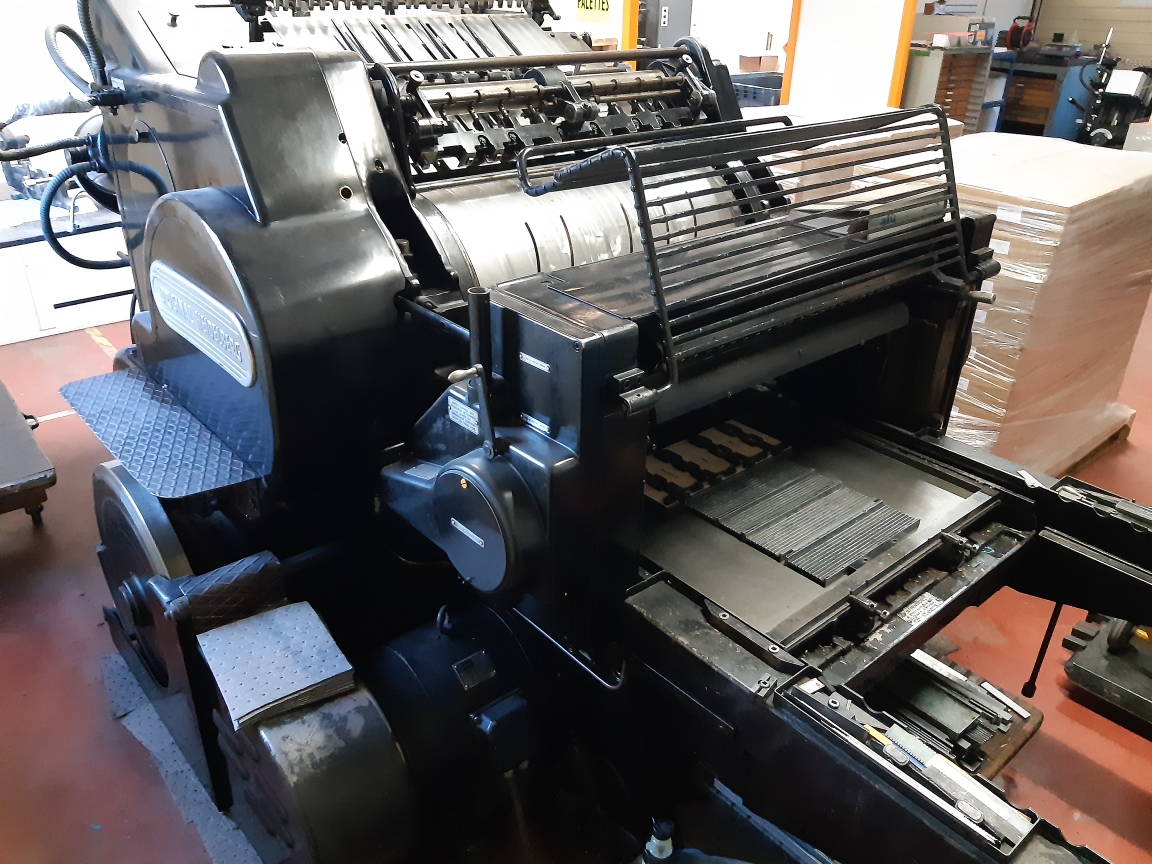

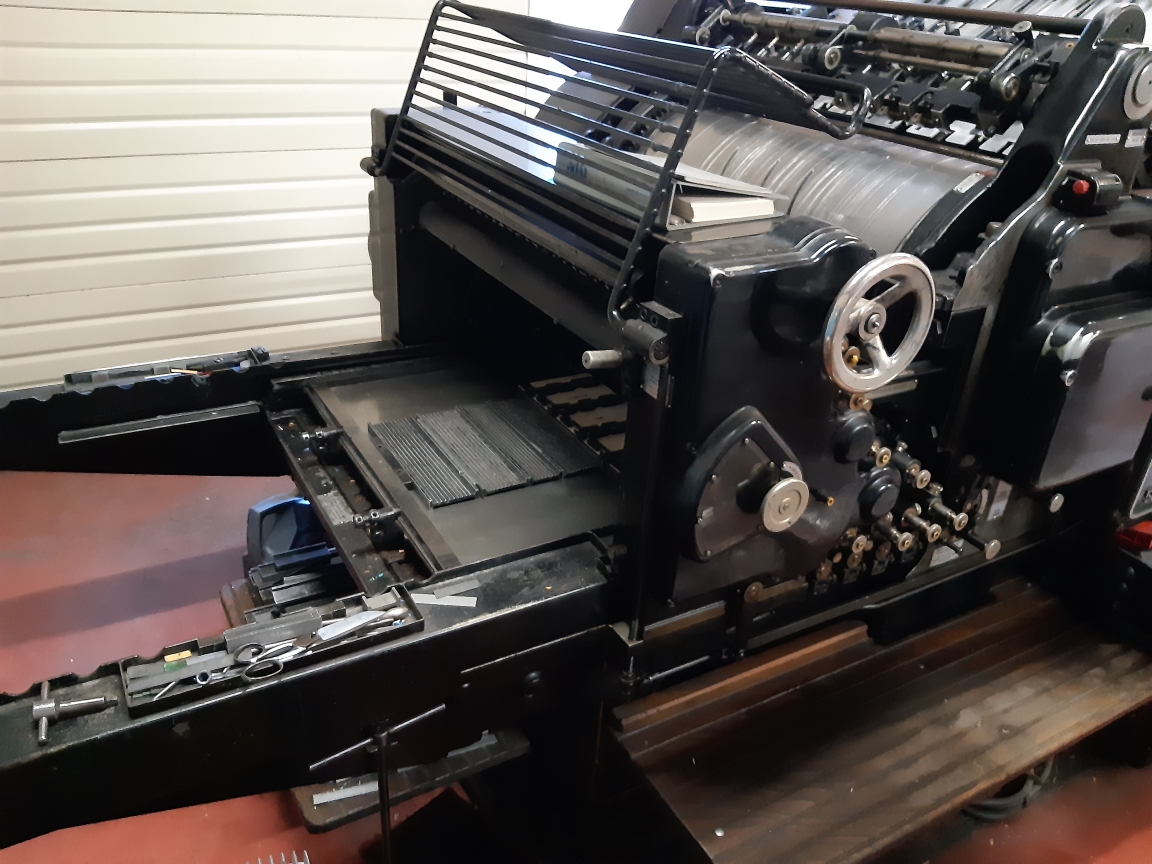

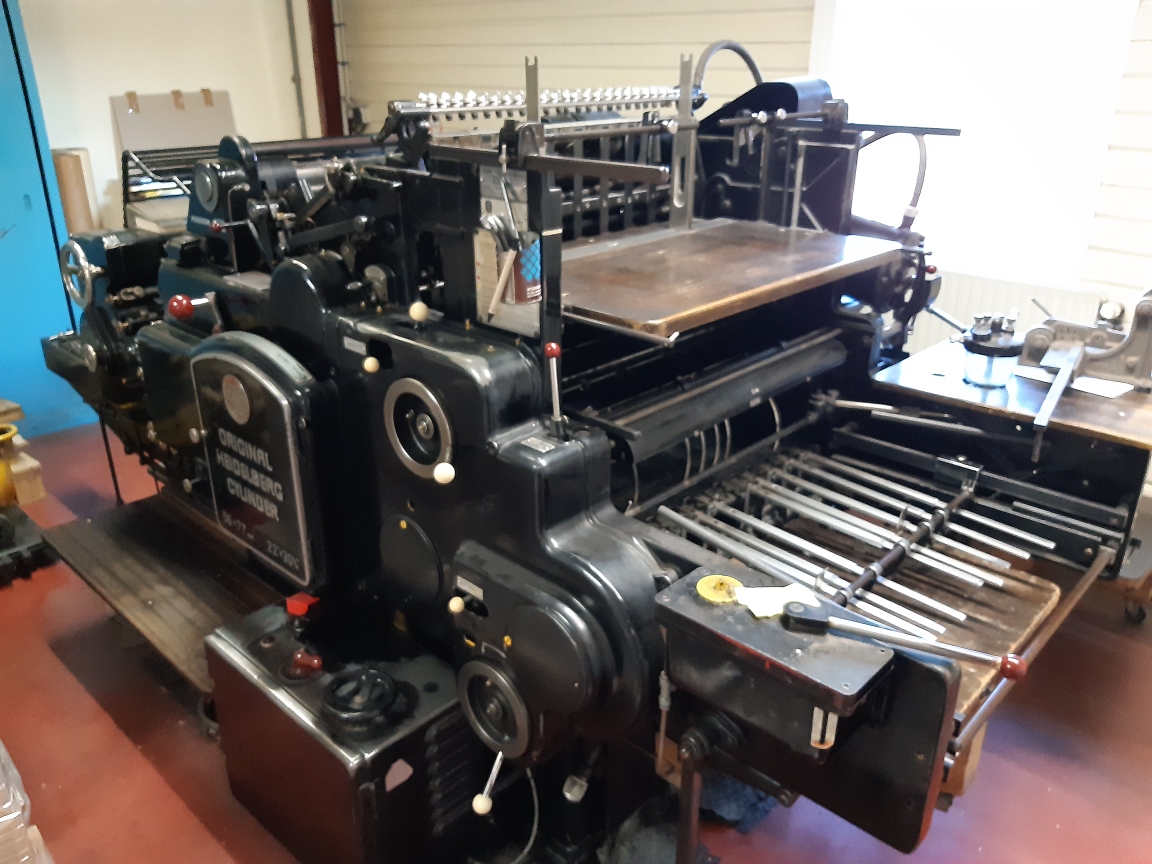

Heidelberg Cylinder SBG | 1962.
Available Now1962used
Spécifications Techniques
Catégorie
Packaging
Marque
Heidelberg
Modèle
Heidelberg Cylinder SBG
Année
1962
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Heidelberg Cylinder SBG |
| Format Max Feuille | 77 x 56 cm (30 x 22 inch) |
| Vitesse d'Impression Max | 4,000 sheets / hour |
| Dimensions | 3.50 m x 2.00 m x 1.85 m |
| Poids | 5300.00 kg |
Description
Configuration: Single-color automatic cylinder letterpress / die-cutting press.
Model: Heidelberg Cylinder SBG.
Year: 1962.
Max paper size: 56 x 77 cm (22 x 30 inches).
Min paper size: 21 x 28 cm.
Max printing / die-cutting area: approximately 54 x 76 cm.

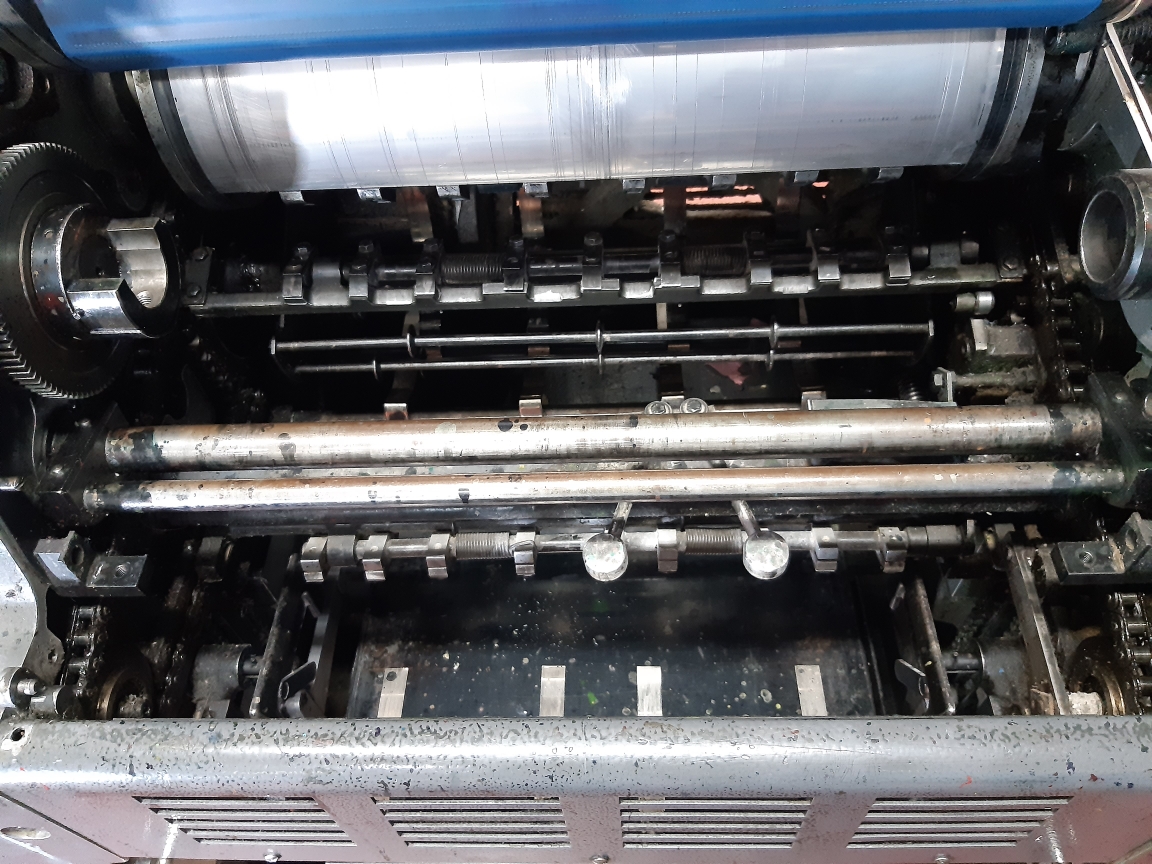

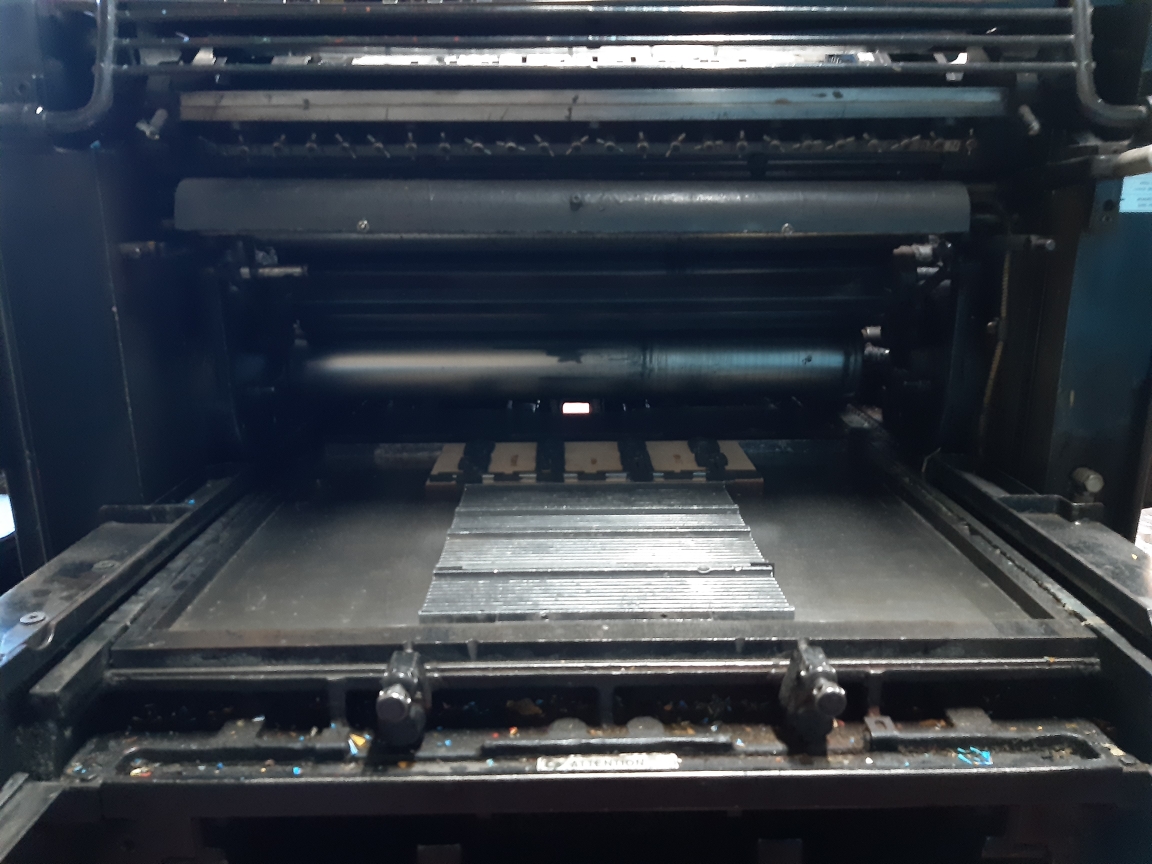

Printing system: Automatic cylinder letterpress printing and die-cutting system with reciprocating flat bed and impression cylinder.
Inking system: Oscillating cylinder inking unit with multiple distribution rollers (printing versions).
Form locking: Standard Heidelberg cylinder chase locking system.
Max speed: up to 4,600 sheets / hour.

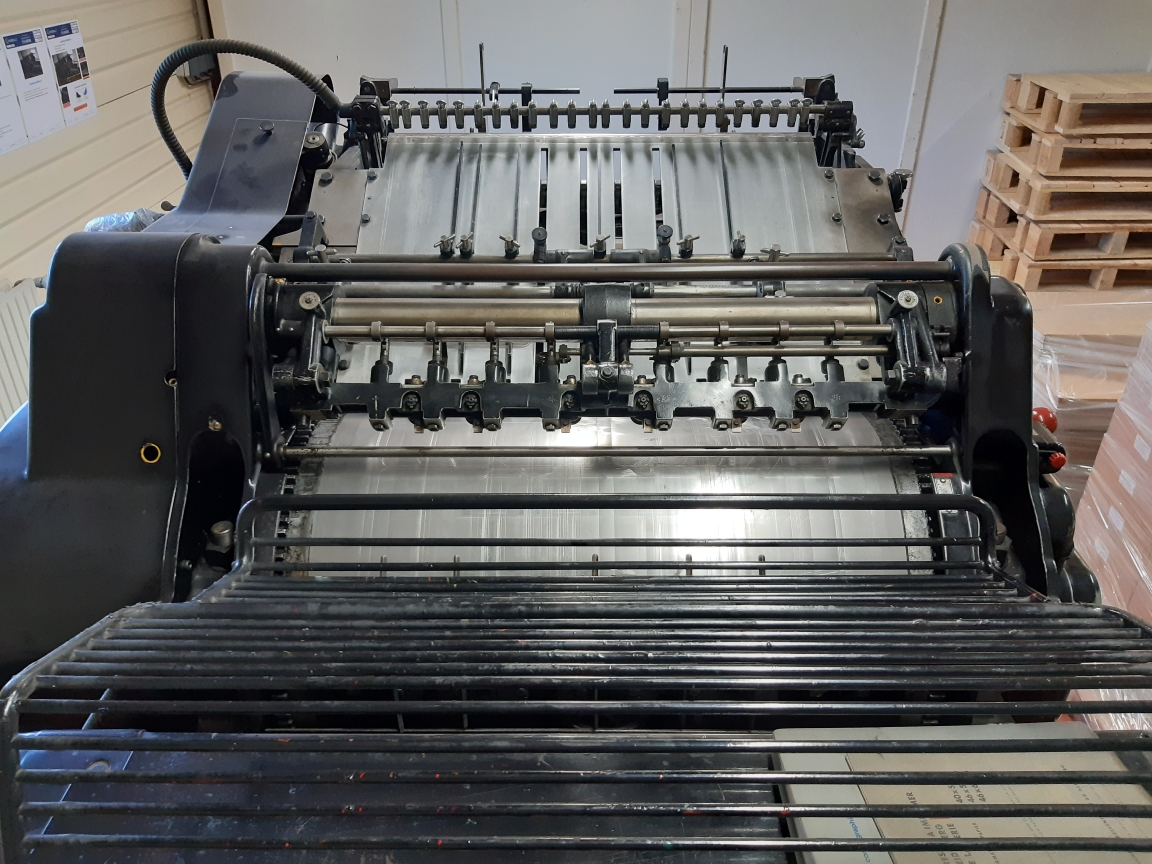

Feeder type: Automatic single-sheet feeder with mechanical gripper transport system.
Delivery system: High pile delivery with continuous automatic sheet output.
Substrate thickness: approximately 0.04 mm up to 0.60 mm.
Registration: High-precision mechanical grippers and side lays for accurate sheet alignment.
Applications: Letterpress printing, die-cutting, embossing, creasing, perforating, numbering, foil stamping, and packaging production.
Drive system: Heavy-duty mechanical cylinder drive with flywheel transmission.
Control system: Electromechanical operator controls with manual pressure and ink adjustment.
Machine dimensions (L x W x H): approximately 3.50 m x 2.00 m x 1.85 m.
Total weight: approximately 5,300 kg.
Power consumption: approximately 5.5–6.5 kW (three-phase industrial supply).
