HeidelbergREF: TECH202604f9d0

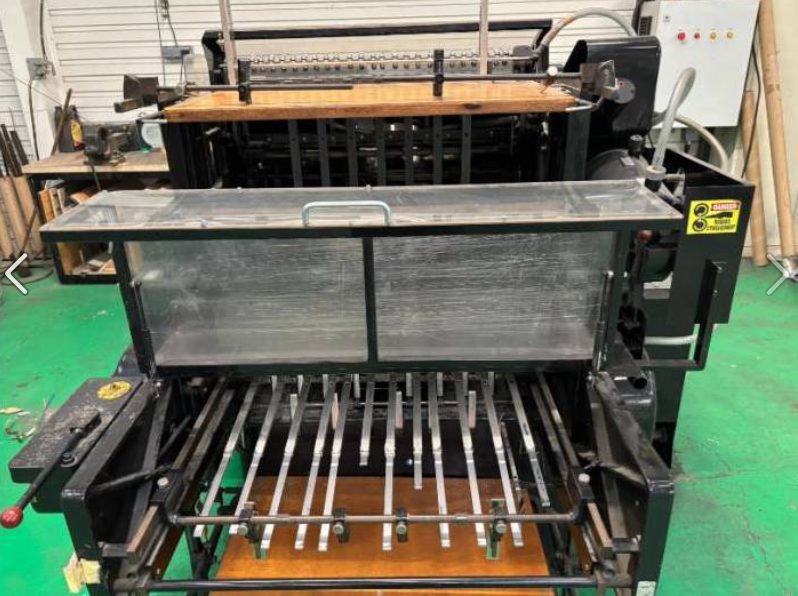

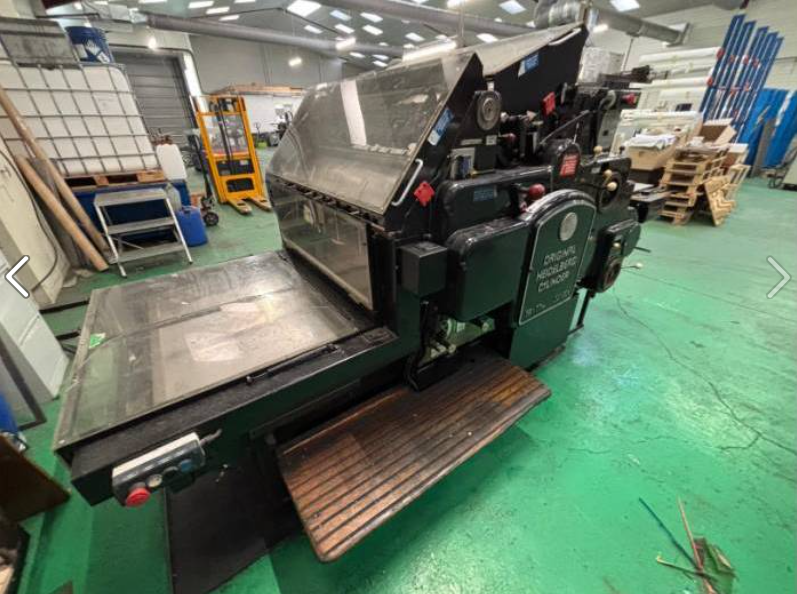

Heidelberg Cylinder SBG | 1960
Available Now1960used
Spécifications Techniques
Catégorie
Packaging
Marque
Heidelberg
Modèle
Heidelberg Cylinder SBG
Année
1960
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Heidelberg Cylinder SBG |
| Format Max Feuille | 74 x 52 cm (29 x 20 inch) |
| Vitesse d'Impression Max | 4,000 sheets / hour |
| Dimensions | 3.50 m x 2.00 m x 1.85 m |
| Poids | 5200.00 kg |
Description
Configuration: Large format cylinder letterpress.
Year: 1960.
Max paper size: 56 x 77 cm (22 x 30.25 inches).
Min paper size: 21 x 28 cm.
Max printing size: 54 x 72 cm.
Inking system: Cylinder distribution system (if the unit is a printing model; many have been converted for die-cutting only).
Form locking: Standard letterpress chase.
Max speed: 4,000 sheets / hour.
Inking control: Manual screw adjustment on the ink duct.
Washing devices: Manual.
Powder spray system: Optional (Weko).
Delivery capacity: High pile delivery.
Substrate thickness: 0.04 mm up to 1.0 mm (extremely robust for heavy board).
Registration: Mechanical front and side lays with precision swing grippers.
Total weight: approximately 5,200 kg (11,464 lbs).
Machine dimensions (L x W x H): 3.50 m x 2.00 m x 1.85 m.
Power consumption: approximately 5.5 kW.
Power supply: 3-phase 380V/400V.
