HeidelbergREF: TECH202604a2d2

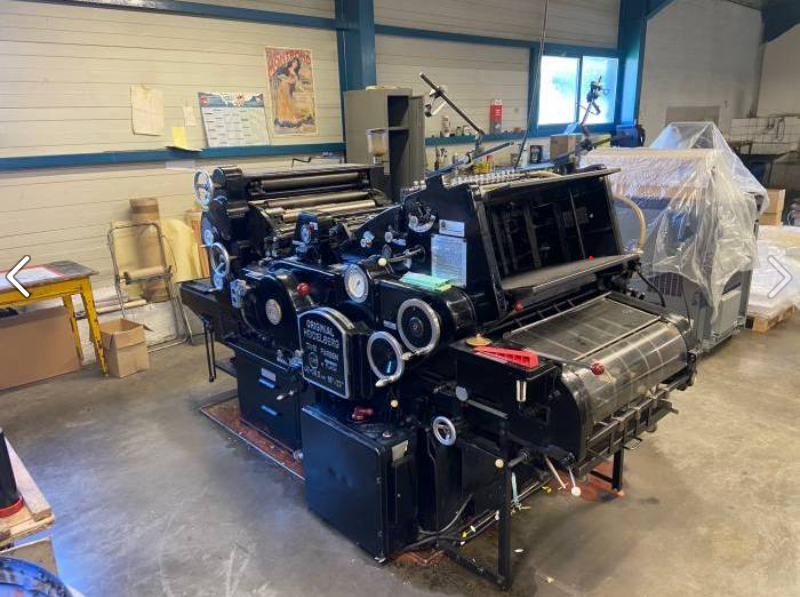

Heidelberg Cylinder KSBAZ | 1965
Available Now1965used
Technical Specifications
Category
Packaging
Brand
Heidelberg
Model
Heidelberg Cylindre KSBAZ
Year
1965
Printing Colors
1 Color
Location
L'Isère, France
Technical Specifications
| Model | Heidelberg Cylindre KSBAZ |
| Max Sheet Size | 58 x 46 cm (22 x 18 inch) |
| Max Printing Speed | 5,000 sheets / hour |
| Dimensions | 3.50 m x 1.55 m x 1.70 m |
| Weight | 5500.00 kg |
Description

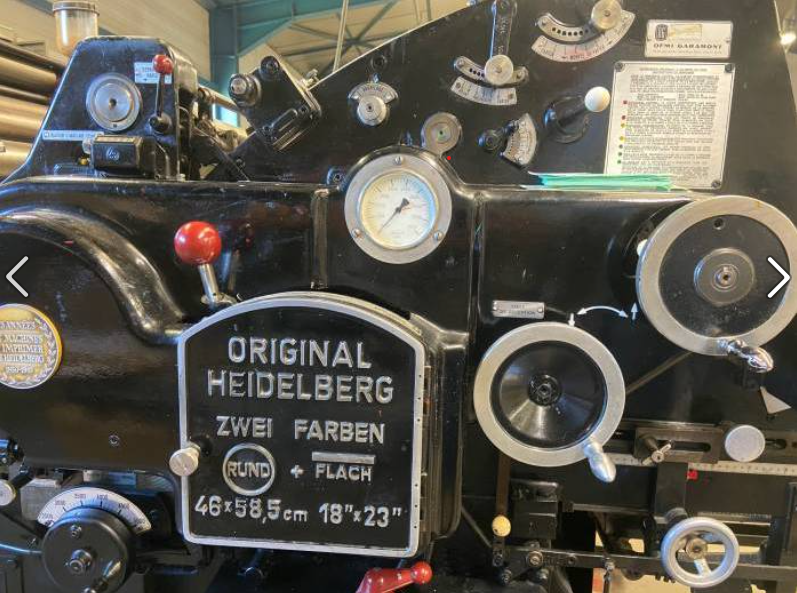

Configuration: 2-color cylinder letterpress machine.
Year: 1965.
Max paper size: 46 x 58.5 cm (18 x 23 inches).
Min paper size: 14 x 18 cm.
Max printing size: 43.5 x 57 cm.
Inking system: Two separate inking units with dual distribution and form rollers.
Form locking: Standard letterpress chases for two separate forms.
Max speed: 5,000 sheets / hour.
Inking control: Manual screw adjustment on both ink ducts.
Washing devices: Manual.
Powder spray system: Optional (standard on printing models).
Delivery capacity: High pile delivery.
Substrate thickness: 0.04 mm to 0.70 mm.
Registration: High-precision mechanical grippers designed for multi-color registration.
Total weight: approximately 5,500 kg (significantly heavier than the single-color version).
Machine dimensions (L x W x H): approximately 3.50 m x 1.55 m x 1.70 m.
Power consumption: approximately 5.5 kW to 7 kW.
