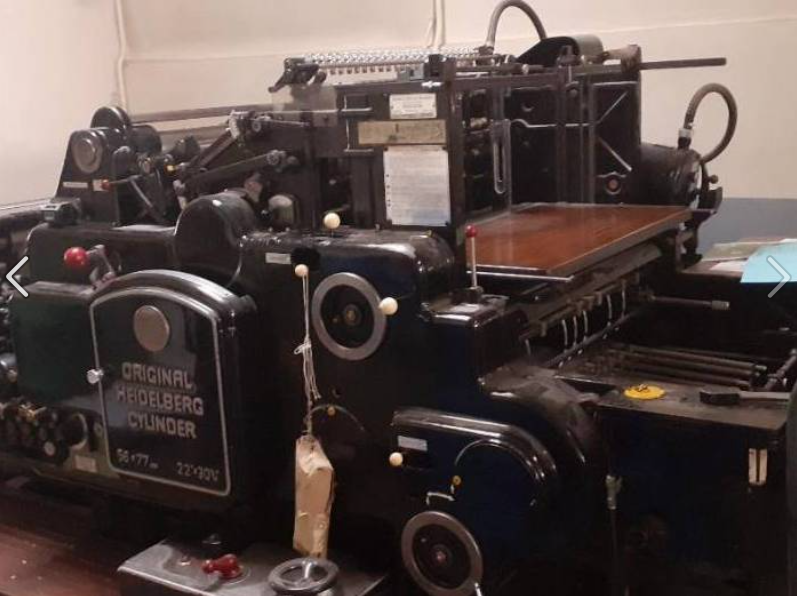

Heidelberg Cylinder SBG | 1951.
Sold1951used
Technical Specifications
| Model | Heidelberg Cylindre SBG |
| Max Sheet Size | 77 x 56 cm (30 x 22 inch) |
| Max Printing Speed | 4,000 sheets / hour |
| Dimensions | 3.50 m x 2.00 m x 1.85 m |
| Weight | 5200.00 kg |
Description
Configuration: Large format cylinder letterpress.
Year: 1951.
Max paper size: 56 x 77 cm (22 x 30.25 inches).
Min paper size: 21 x 28 cm.
Max printing size: 54 x 72 cm.
Inking system: Full cylinder inking unit (often removed or disconnected if used solely for die-cutting).
Form locking: Standard letterpress chase or die-cutting plate.
Max speed: 4,000 sheets / hour.
Inking control: Manual screw adjustment.
Washing devices: Manual.
Powder spray system: Optional.
Delivery capacity: High pile delivery.
Substrate thickness: 0.04 mm up to 1.0 mm.
Registration: Mechanical front and side lays with swing gripper.
Total weight: approximately 5,200 kg.
Machine dimensions (L x W x H): 3.50 m x 2.00 m x 1.85 m.
Power consumption: approximately 5.5 kW.
Year: 1951.
Max paper size: 56 x 77 cm (22 x 30.25 inches).
Min paper size: 21 x 28 cm.
Max printing size: 54 x 72 cm.
Inking system: Full cylinder inking unit (often removed or disconnected if used solely for die-cutting).
Form locking: Standard letterpress chase or die-cutting plate.
Max speed: 4,000 sheets / hour.
Inking control: Manual screw adjustment.
Washing devices: Manual.
Powder spray system: Optional.
Delivery capacity: High pile delivery.
Substrate thickness: 0.04 mm up to 1.0 mm.
Registration: Mechanical front and side lays with swing gripper.
Total weight: approximately 5,200 kg.
Machine dimensions (L x W x H): 3.50 m x 2.00 m x 1.85 m.
Power consumption: approximately 5.5 kW.
