HeidelbergREF: TECH202604b9ca

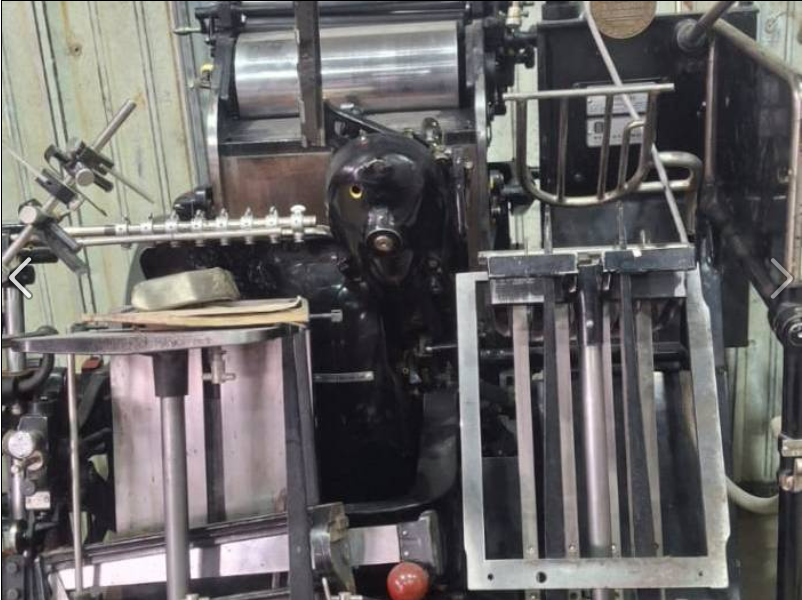

Heidelberg OHT | 1961.
Available Now1961used
Spécifications Techniques
Catégorie
Packaging
Marque
Heidelberg
Modèle
Heidelberg OHT
Année
1961
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Heidelberg OHT |
| Format Max Feuille | 38 x 28 cm (14 x 11 inch) |
| Vitesse d'Impression Max | 5,500 sheets / hour |
| Dimensions | 1.70 m x 1.25 m x 1.65 m |
| Poids | 1300.00 kg |
Description
Configuration: Automatic platen letterpress (“Windmill” press).
Year: 1961.
Max paper size: 28 x 38 cm (10 x 14 inches).
Min paper size: 4 x 7 cm.
Max printing size: approximately 26 x 34 cm.
Inking system: Automatic roller inking system with oscillating ink drum and multiple distribution rollers.
Form locking: Standard Heidelberg chase locking system.
Max speed: up to 5,500 sheets / hour.
Inking control: Manual ink duct adjustment with precision feed screws.
Washing devices: Manual roller and ink disc cleaning.
Feeding system: Automatic “Windmill” sheet feeder and delivery arms.
Delivery capacity: Continuous automatic delivery with high pile output.
Substrate thickness: Lightweight paper up to approximately 1.0 mm board.
Registration: High-precision mechanical grippers and side guides.
Applications: Letterpress printing, numbering, perforating, creasing, embossing, and die-cutting.
Total weight: approximately 1,100–1,300 kg (2,425–2,866 lbs).
Machine dimensions (L x W x H): approximately 1.70 m x 1.25 m x 1.65 m.
Power consumption: approximately 1.1 kW to 1.5 kW.
Year: 1961.
Max paper size: 28 x 38 cm (10 x 14 inches).
Min paper size: 4 x 7 cm.
Max printing size: approximately 26 x 34 cm.
Inking system: Automatic roller inking system with oscillating ink drum and multiple distribution rollers.
Form locking: Standard Heidelberg chase locking system.
Max speed: up to 5,500 sheets / hour.
Inking control: Manual ink duct adjustment with precision feed screws.
Washing devices: Manual roller and ink disc cleaning.
Feeding system: Automatic “Windmill” sheet feeder and delivery arms.
Delivery capacity: Continuous automatic delivery with high pile output.
Substrate thickness: Lightweight paper up to approximately 1.0 mm board.
Registration: High-precision mechanical grippers and side guides.
Applications: Letterpress printing, numbering, perforating, creasing, embossing, and die-cutting.
Total weight: approximately 1,100–1,300 kg (2,425–2,866 lbs).
Machine dimensions (L x W x H): approximately 1.70 m x 1.25 m x 1.65 m.
Power consumption: approximately 1.1 kW to 1.5 kW.
