PaperplastREF: TECH2026043be1

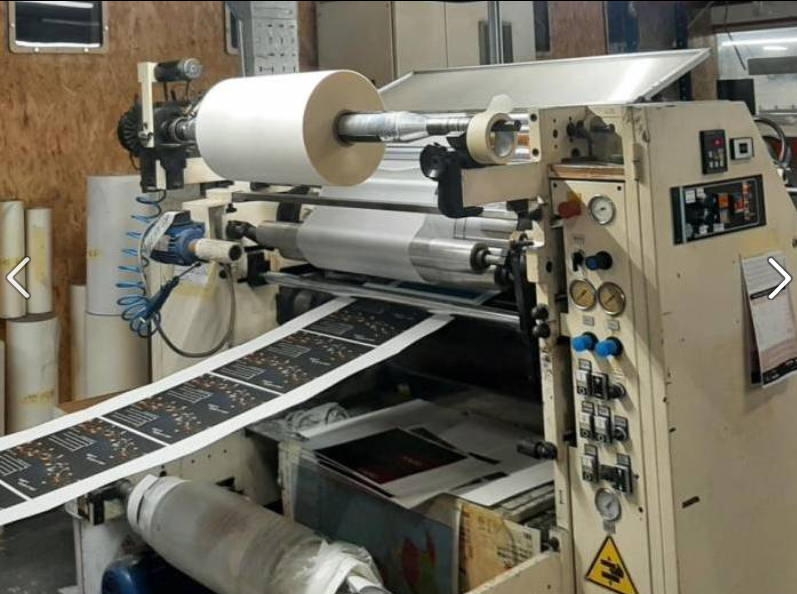

Paperplast 102 Dry | 1999
Available Now1999used
Spécifications Techniques
Catégorie
Packaging
Marque
Paperplast
Modèle
Paperplast 102 Dry
Année
1999
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Paperplast 102 Dry |
| Format Max Feuille | 120 x 72 cm (47 x 28 inch) |
| Vitesse d'Impression Max | 60–70 m / min |
| Dimensions | 7.4 m x 3.1 m x 2.0 m |
| Poids | 6500.00 kg |
Description
Configuration: Automatic thermal / wet glue roll-to-sheet laminating machine (industrial dry lamination system).
Year: 1999.
Max paper size: 120 x 72 cm (47 x 28 inch).
Min paper size: approximately 30 x 28 cm (varies slightly by configuration).
Max working width: 1020 mm.
Laminating system: Heated oil-calender roller system with pressure nip for film bonding.
Heating system: Oil-heated chrome cylinder with adjustable temperature control.

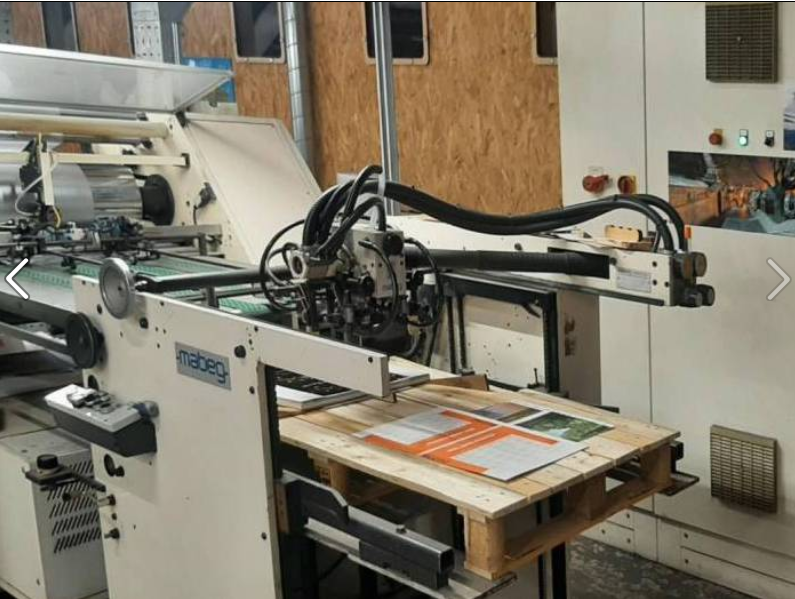

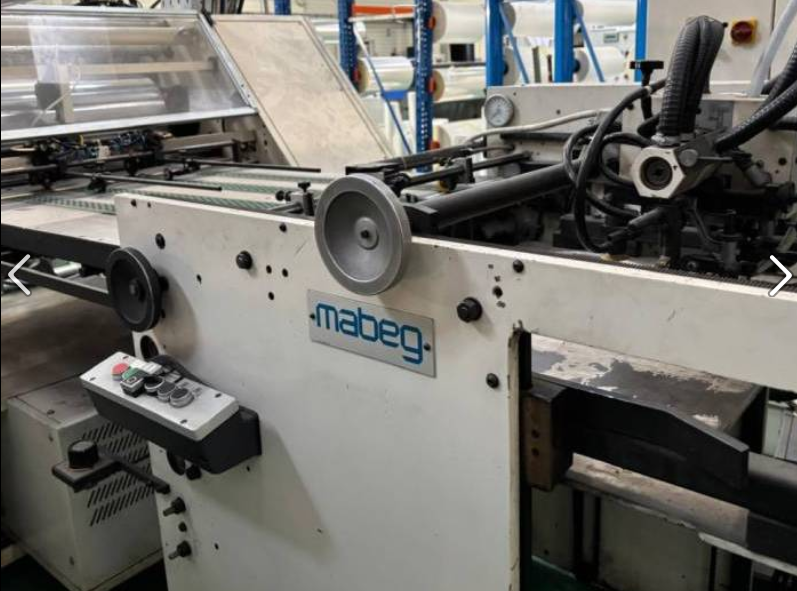

Feeder type: Automatic high pile feeder (commonly Mabeg or equivalent).
Max speed: approximately 60–70 m/min.
Production capacity: up to 10,000 sheets/hour depending on format and substrate.
Pressure system: Pneumatic pressure adjustment on laminating rollers.
Film system: BOPP thermal films and adhesive-coated films with controlled tension unwinding system.
Cooling system: Integrated chill roller for sheet stabilization and anti-curl control.
Separation system: Automatic cutting / separating unit with self-cleaning knife system.
Delivery system: High pile stacker with sheet alignment and braking system.
Substrate thickness: approximately 100 gsm up to 1 mm board.
Compatible materials: Coated paper, printed sheets, cardboard, packaging materials, and commercial print stock.
Applications: High-volume lamination for packaging, book covers, brochures, posters, and commercial print finishing.
Control system: Electronic speed control with temperature, pressure, and overlap adjustment.
Additional features: Powder removal system, anti-static brushes, decurling system, film centering unit, and waste rewinder.
Machine dimensions (L x W x H): approximately 7.4 m x 3.1 m x 2.0 m.
Total weight: approximately 5,000–6,500 kg depending on configuration.
Power consumption: approximately 16 kW to 22 kW (three-phase industrial supply).
