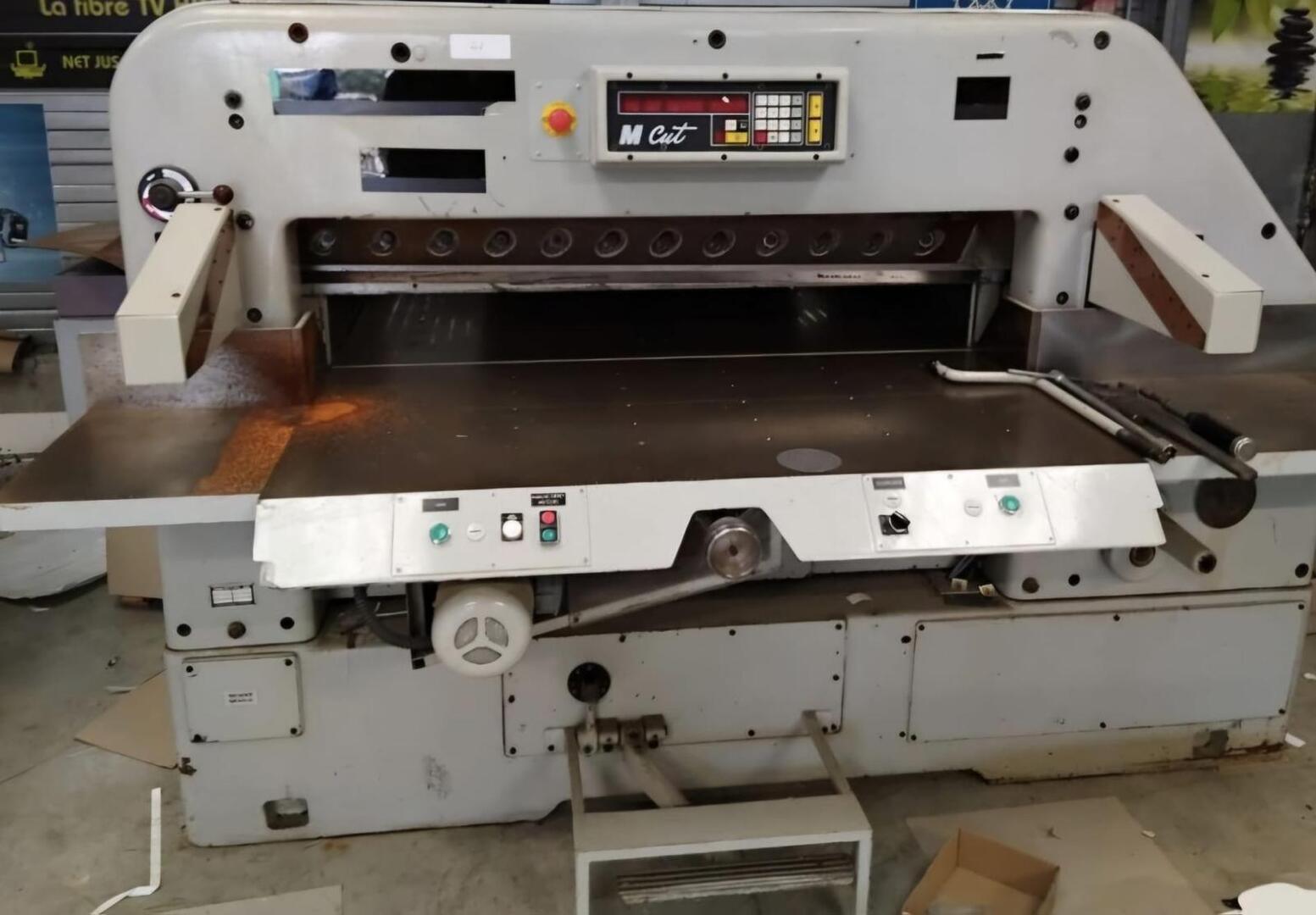

Schneider Senator 132 | 1978

Configuration: Hydraulic programmable guillotine paper cutting machine.
Year: 1978.
Cutting width: 132 cm (1320 mm / 52 inches).
Max cutting height: approximately 140 mm.
Min cut without false clamp plate: approximately 25–30 mm.
Table depth: approximately 132–135 cm.
Cutting system: Heavy-duty hydraulic guillotine cutting system with mechanical knife drive.
Clamp system: Hydraulic paper clamp with adjustable pressure control.
Backgauge system: Motorized programmable backgauge with digital positioning system (varies by retrofit version).
Control system: Electromechanical / programmable cutting control for repeat operations.
Feeding table: Chrome air-table work surface with left and right side air tables.
Safety system: Two-hand operation, photoelectric safety cells, emergency stop, and transparent safety guards.
Blade material: Industrial high-speed steel cutting knife.
Applications: Commercial print finishing, book production, packaging, labels, offset print trimming, and industrial paper cutting operations.
Drive system: Hydraulic cutting drive with electric motorized backgauge movement.
Max cutting speed: approximately 40–45 cutting cycles per minute.
Machine dimensions (L x W x H): approximately 2.57 m x 2.33 m x 1.56 m.
Total weight: approximately 3,600 kg.
Power supply: 220/380V – 50 Hz industrial three-phase supply.
Power consumption: approximately 5.5–8 kW depending on configuration.
