DuploREF: TECH202604c69b
Duplo DPB 500 PUR | 2009
Available Now2009used
Spécifications Techniques
Catégorie
Post-Press
Marque
Duplo
Modèle
Duplo DPB 500 PUR
Année
2009
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Duplo DPB 500 PUR |
| Vitesse d'Impression Max | 525 books / hour |
| Dimensions | 2790 x 928 x 1343 mm |
| Poids | 725.01 kg |
Description

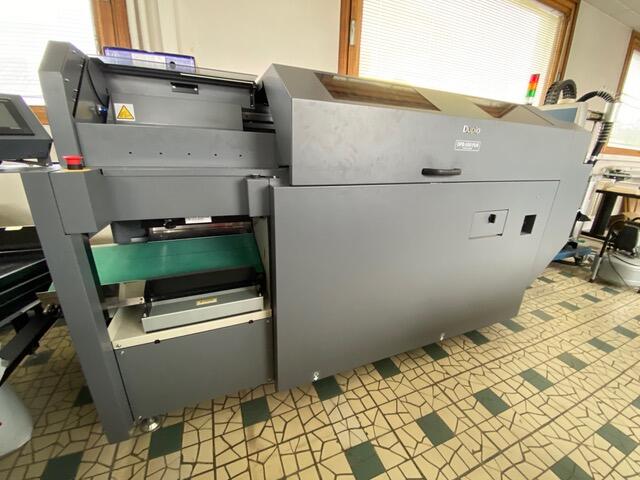

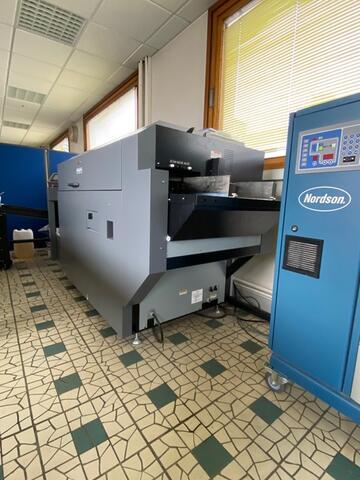

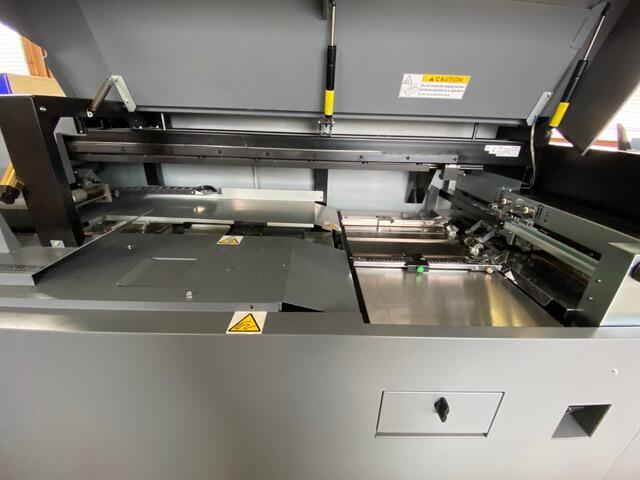

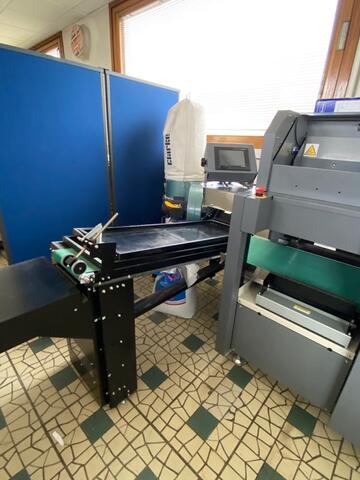

Configuration: Single-clamp automatic PUR perfect binding machine.
Model: Duplo DPB-500 PUR.
Year: Unknown.
Binding system: PUR (Polyurethane Reactive) perfect binding with automated single-clamp operation.
Binding type: Softcover perfect binding with or without cover.
Max book size: 360 x 320 mm (14.17 x 12.6 inches).
Min book size: 120 x 120 mm.
Max cover size: 360 x 696 mm.
Min cover size: 120 x 250 mm.
Binding thickness: 1 mm up to 51 mm + cover thickness.
Production speed: up to 525 books / hour.
Clamp system: Fully automated single-clamp binder with automatic thickness detection.

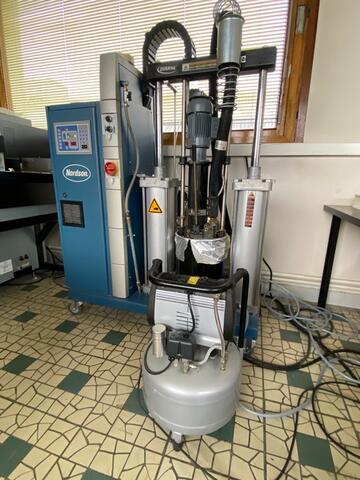

Glue system: Closed-tank PUR glue application system with Nordson EP48VSB slot nozzle.
Glue application: Automatic pressure-controlled spine and side gluing.
Warm-up time: approximately 15–40 minutes depending on glue type and operating conditions.
Milling system: Integrated spine milling and notching unit with adjustable depth up to 4 mm.
Scoring system: Automatic cover creasing / hinge scoring with 4 scoring tools.
Feeder type: Automatic cover feeder with belt suction separation and double-feed detection.
Delivery system: Internal vertical stacking tray with stack height up to 200 mm.
Paper type: Fine paper, coated paper, digitally printed stock, and heavy covers.
Cover weight: approximately 80–302 gsm.
Applications: Paperback books, photobooks, catalogs, manuals, corporate reports, magazines, yearbooks, and short-run digital publishing.
Control system: Touchscreen programmable control panel with job memory storage.
Safety system: Sensors for incorrect book blocks, missing covers, and automatic cycle monitoring.
Machine dimensions (L x W x H): approximately 2790 x 928 x 1343 mm.
Total weight: approximately 695–725 kg depending on configuration.
Power consumption: approximately 3.2 kW.
Power supply: 380–415V three-phase industrial supply.
Model: Duplo DPB-500 PUR.
Year: Unknown.
Binding system: PUR (Polyurethane Reactive) perfect binding with automated single-clamp operation.
Binding type: Softcover perfect binding with or without cover.
Max book size: 360 x 320 mm (14.17 x 12.6 inches).
Min book size: 120 x 120 mm.
Max cover size: 360 x 696 mm.
Min cover size: 120 x 250 mm.
Binding thickness: 1 mm up to 51 mm + cover thickness.
Production speed: up to 525 books / hour.
Clamp system: Fully automated single-clamp binder with automatic thickness detection.
Glue system: Closed-tank PUR glue application system with Nordson EP48VSB slot nozzle.
Glue application: Automatic pressure-controlled spine and side gluing.
Warm-up time: approximately 15–40 minutes depending on glue type and operating conditions.
Milling system: Integrated spine milling and notching unit with adjustable depth up to 4 mm.
Scoring system: Automatic cover creasing / hinge scoring with 4 scoring tools.
Feeder type: Automatic cover feeder with belt suction separation and double-feed detection.
Delivery system: Internal vertical stacking tray with stack height up to 200 mm.
Paper type: Fine paper, coated paper, digitally printed stock, and heavy covers.
Cover weight: approximately 80–302 gsm.
Applications: Paperback books, photobooks, catalogs, manuals, corporate reports, magazines, yearbooks, and short-run digital publishing.
Control system: Touchscreen programmable control panel with job memory storage.
Safety system: Sensors for incorrect book blocks, missing covers, and automatic cycle monitoring.
Machine dimensions (L x W x H): approximately 2790 x 928 x 1343 mm.
Total weight: approximately 695–725 kg depending on configuration.
Power consumption: approximately 3.2 kW.
Power supply: 380–415V three-phase industrial supply.
