HeidelbergREF: TECH20260460e9

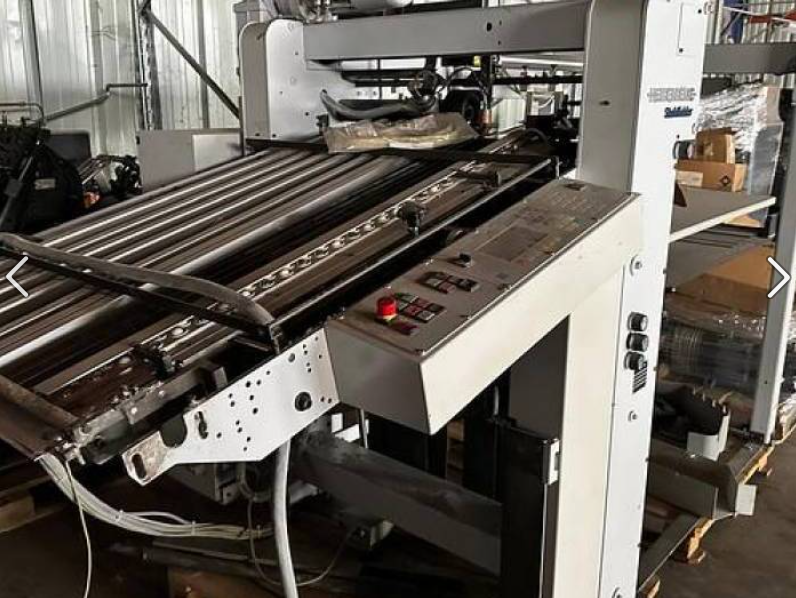

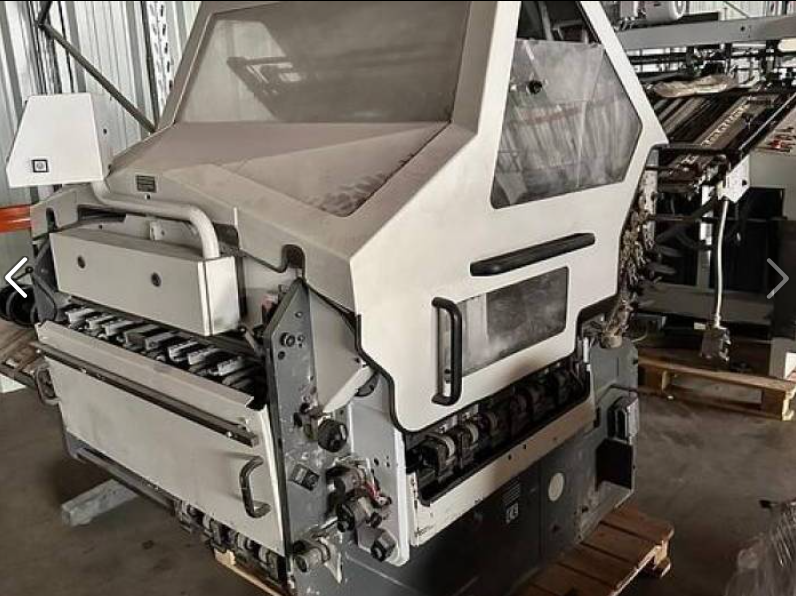

Heidelberg Stahlfolder KD 78 KTL | 2004
Available Now2004used
Spécifications Techniques
Catégorie
Folding Machines
Marque
Heidelberg
Modèle
Heidelberg Stahlfolder KD 78 KTL
Année
2004
Emplacement
L'Isère, France
CETTE MACHINE A ÉTÉ VENDUE
Spécifications Techniques
| Modèle | Heidelberg Stahlfolder KD 78 KTL |
| Format Max Feuille | 78 x 108 cm (30.7 x 42.5 inches) |
| Vitesse d'Impression Max | 180–200 m/min |
| Dimensions | 6.0–8.5 m x 1.8–2.5 m x 1.8–2.1 m |
| Poids | 7000.00 kg |
Description
Configuration: Automated buckle-plate and knife folding machine with cross-fold unit.
Model: Heidelberg Stahlfolder KD 78 KTL.
Year: 2004.
Max paper size: 78 x 108 cm (30.7 x 42.5 inches).
Min paper size: approximately 14 x 18 cm.
Folding system: Combination buckle-plate folding with KTL cross-fold knife unit.
Feeder type: Pallet feeder / Tremat flat pile feeder with suction feeding system.
Max speed: up to 180–200 m/min depending on configuration and fold type.
Production capacity: up to 50,000 sheets/hour in parallel fold mode.
Folding units: Typically equipped with 4 to 6 buckle plates and 2 to 3 folding knives depending on setup.
Cross-fold configuration: KTL cross-fold unit with multi-stage right-angle folding capability.
Fold types: Parallel fold, letter fold, zig-zag fold, gate fold, cross fold, map fold, and signature folding.
Roller system: Precision steel/polyurethane folding rollers with 44 mm roller diameter.
Control system: MCT electronic control system with digital display / touchscreen interface.
Delivery system: Stream delivery / stacker delivery (SAK or VSA delivery depending on configuration).
Paper weight range: approximately 40–250 gsm.
Applications: Book signatures, brochures, pharmaceutical inserts, maps, catalogs, commercial print folding, and high-volume finishing operations.
Additional features: Sound hoods, perforating shafts, gate-fold buckle options, automated setup functions, and vacuum transport system depending on installed modules.
Machine dimensions (L x W x H): approximately 6.0–8.5 m x 1.8–2.5 m x 1.8–2.1 m depending on feeder and delivery modules.
Total weight: approximately 4,500–7,000 kg depending on configuration.
Power consumption: approximately 10–12.5 kVA (three-phase industrial supply).
