MinipackREF: TECH2026042860
MINIPACK FC 76 | 2012
Available Now2012used
Spécifications Techniques
Catégorie
Packaging
Marque
Minipack
Modèle
MINIPACK
Année
2012
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | MINIPACK |
| Vitesse d'Impression Max | 300 packages / hour |
| Dimensions | Machine dimensions (open hood): approximately 1260 x 810 x 1310 mm. Machine dimensions (closed hood): approximately 1260 x 810 x 1165 mm. |
| Poids | 150.00 kg |
Description

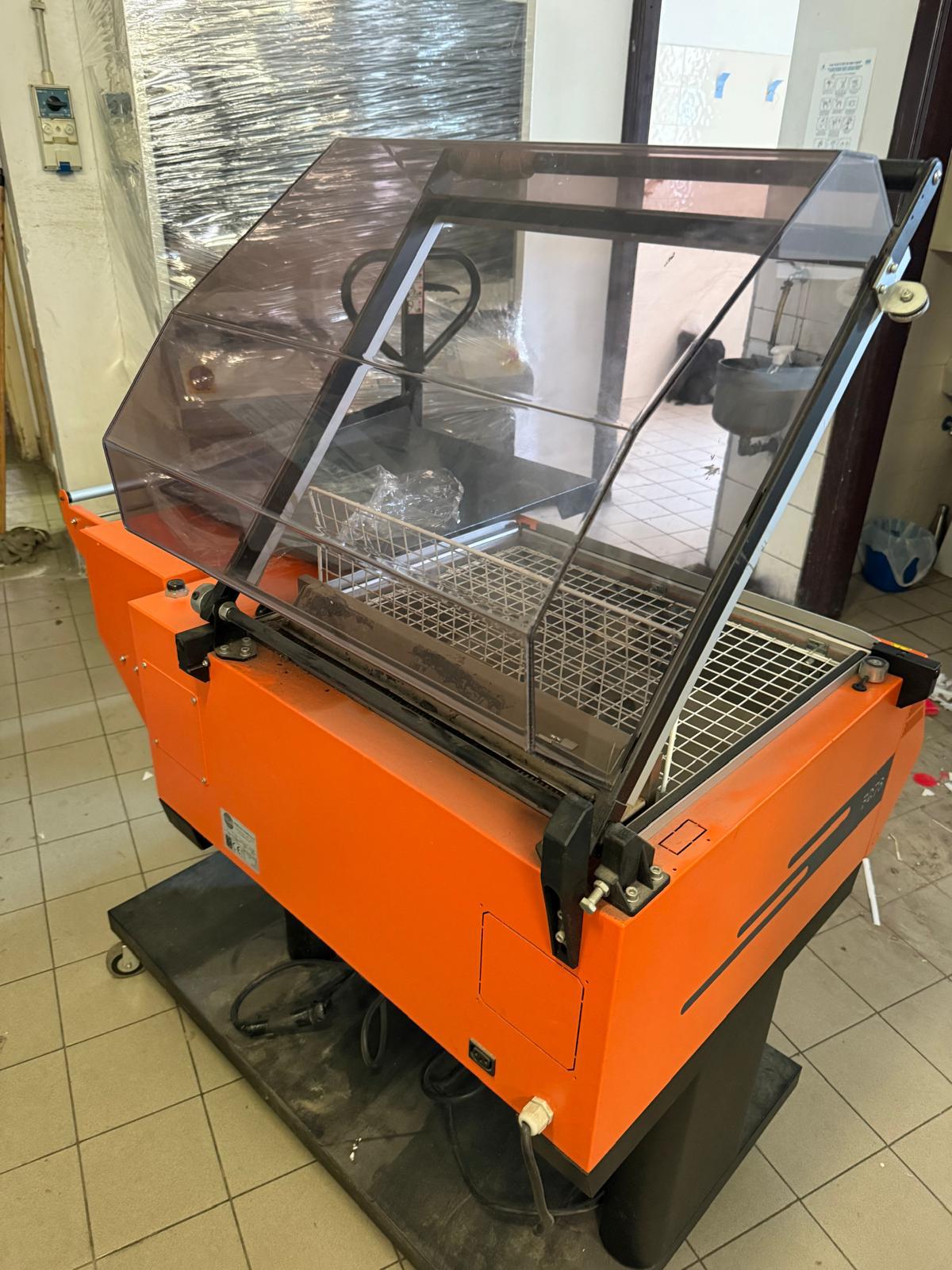

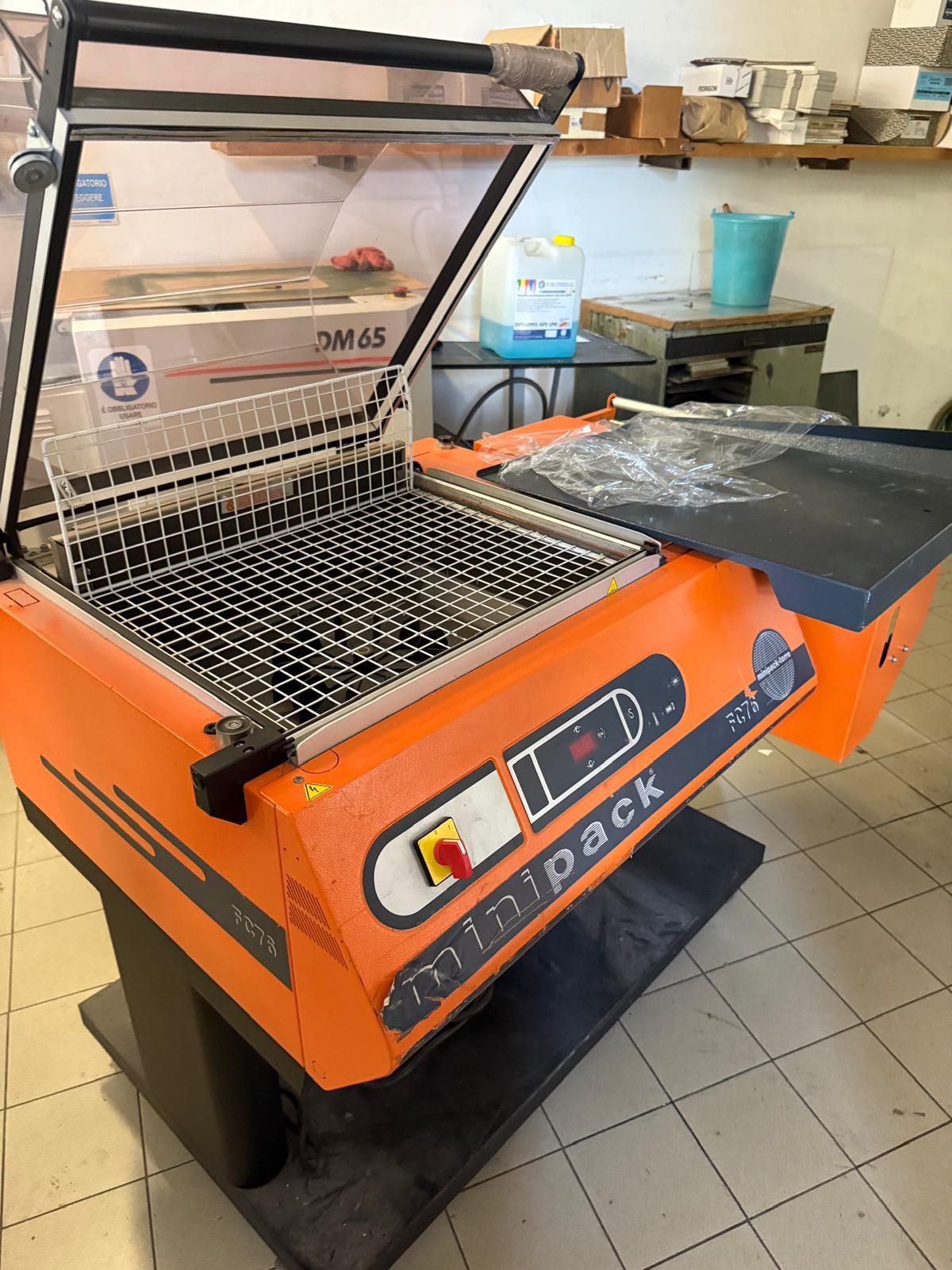

Configuration: Semi-automatic chamber shrink wrapping machine.
Model: MINIPACK FC 76.
Year: 2012.
Packaging system: L-sealing and heat-shrink chamber packaging system.
Sealing system: Manual / semi-automatic hood sealing with integrated shrink chamber.
Sealing bar dimensions: 540 x 390 mm.
Max product dimensions: 500 x 380 x 200 mm.
Max film roll dimensions: Ø250 x 600 mm.
Packaging speed: up to 300 packages / hour depending on product size and operator workflow.
Film compatibility: PVC, Polyolefin (PPL), and centerfold shrink films.
Film thickness range: approximately 15–50 microns.
Heating system: Integrated hot-air shrink chamber with electronically controlled temperature adjustment.
Cooling system: Sealing bar cooling system with controlled shrink fan technology.
Control system: Digital electronic control panel with programmable packaging cycles and production counter.
Operation modes: Manual mode and automatic cycle mode with programmable pauses.
Safety system: Hood safety locking system, sealing blade protection, emergency stop, and thermal protection controls.
Applications: Printed products, cosmetics, retail packaging, books, food products, boxes, promotional items, and industrial shrink wrapping.
Machine dimensions (open hood): approximately 1260 x 810 x 1310 mm.
Machine dimensions (closed hood): approximately 1260 x 810 x 1165 mm.
Total weight: approximately 126–150 kg depending on configuration.

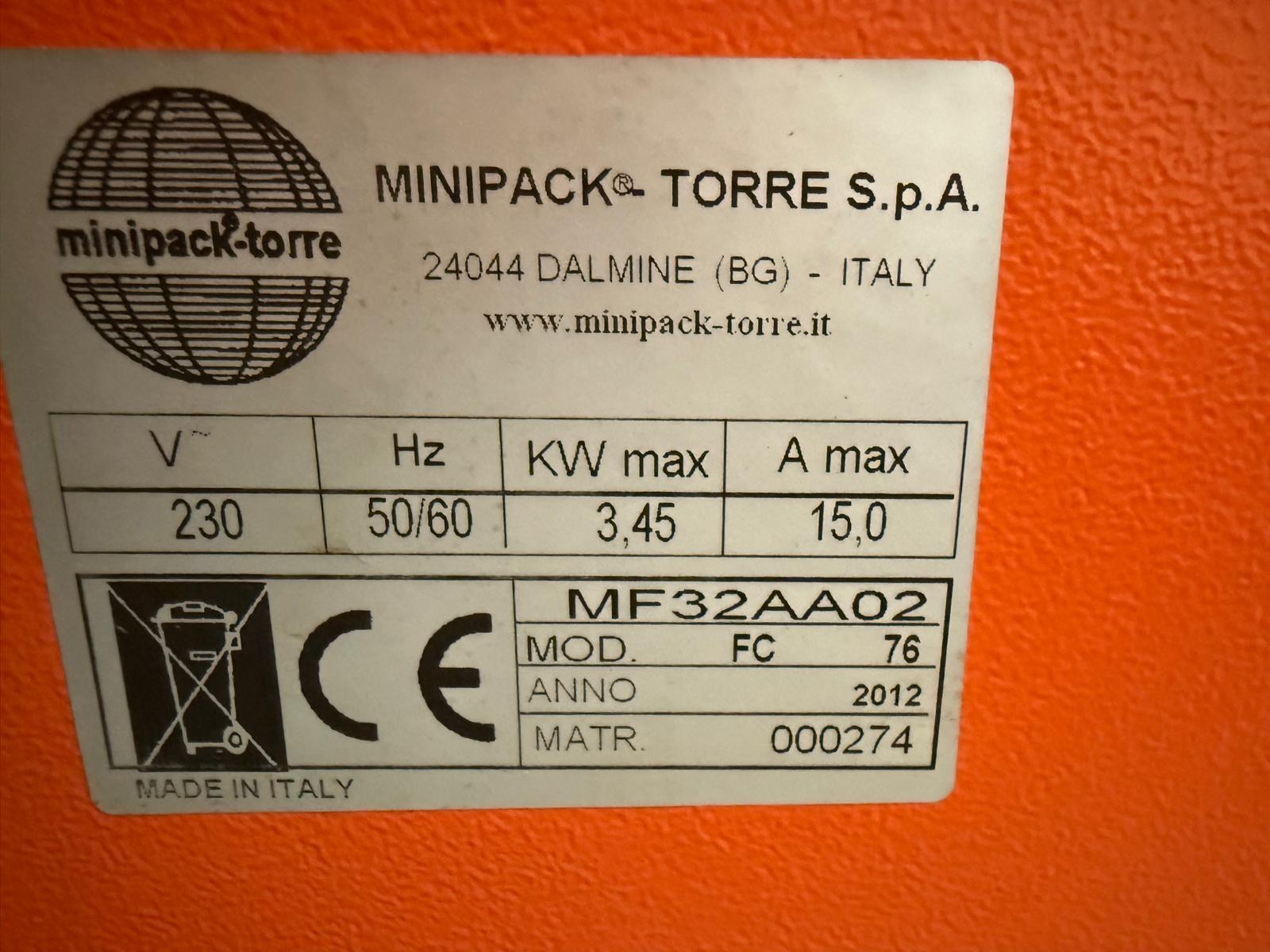

Power supply: 220–240V single-phase supply.
Power consumption: approximately 3.35–3.45 kW.
