HeidelbergREF: TECH202604fcaf

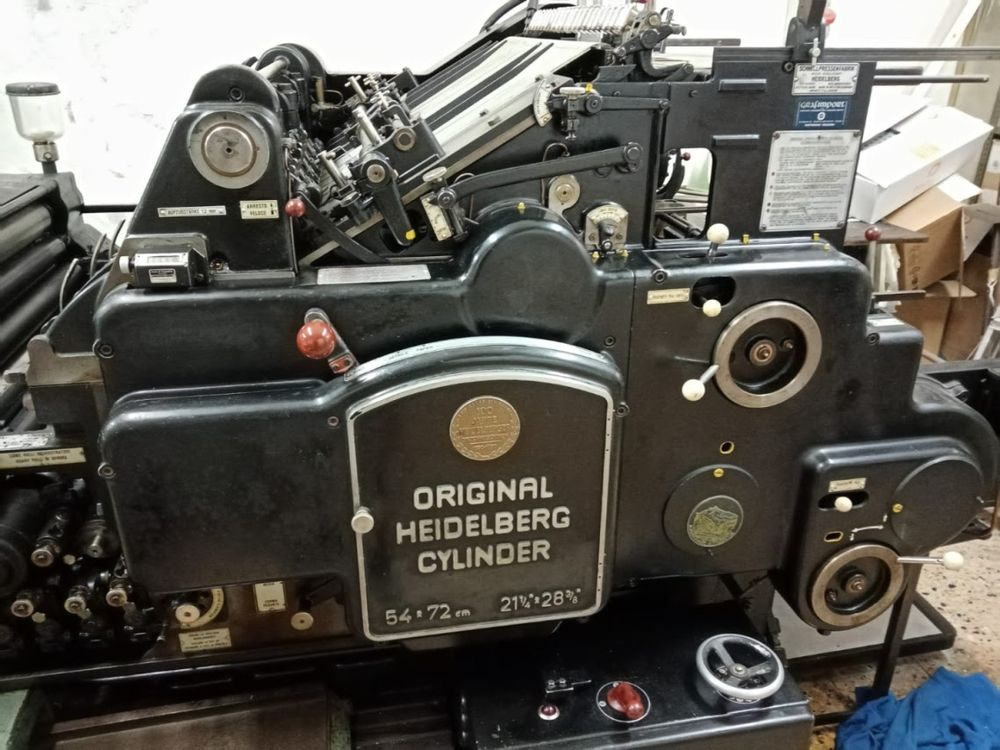

Heidelberg Cylinder S | Unkn.
Available Nowused
Spécifications Techniques
Catégorie
Offset Printing Presses
Marque
Heidelberg
Modèle
Heidelberg Cylinder S
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Heidelberg Cylinder S |
| Format Max Feuille | 54 x 72 cm (21 x 28 inches) |
| Vitesse d'Impression Max | 3,500–4,000 sheets / hour |
| Dimensions | 3.34 m x 1.96 m x 1.60 m |
| Poids | 4800.00 kg |
Description
Configuration: Cylinder letterpress / die-cutting press.
Year: Unknown.
Max paper size: 54 x 72 cm (21 x 28 inches).
Min paper size: approximately 11.5 x 16 cm.
Max printing size: approximately 51.5 x 69 cm.
Printing system: Automatic cylinder letterpress printing system with reciprocating bed and impression cylinder.
Inking system: Oscillating cylinder inking unit with multiple distribution rollers.
Form locking: Standard Heidelberg cylinder chase locking system.
Max speed: approximately 3,500–4,000 sheets / hour.
Feeder type: Automatic single-sheet feeder with mechanical gripper transport.
Delivery system: High pile delivery with continuous automatic sheet output.
Registration: High-precision mechanical grippers and side lays for accurate sheet alignment.
Substrate thickness: Thin paper up to heavy cardboard and carton stock.
Applications: Letterpress printing, die-cutting, creasing, embossing, perforating, numbering, and packaging production.
Drive system: Heavy-duty mechanical cylinder drive with flywheel transmission.
Control system: Electromechanical operator controls with manual pressure and ink adjustment.
Renovation work (2018): Complete cleaning, mechanical servicing, lubrication overhaul, repainting, and operational restoration for production use.
Machine dimensions (L x W x H): approximately 3.34 m x 1.96 m x 1.60 m.
Total weight: approximately 4,500–4,800 kg.
Power consumption: approximately 5.5 kW to 7 kW (three-phase industrial supply).
Year: Unknown.
Max paper size: 54 x 72 cm (21 x 28 inches).
Min paper size: approximately 11.5 x 16 cm.
Max printing size: approximately 51.5 x 69 cm.
Printing system: Automatic cylinder letterpress printing system with reciprocating bed and impression cylinder.
Inking system: Oscillating cylinder inking unit with multiple distribution rollers.
Form locking: Standard Heidelberg cylinder chase locking system.
Max speed: approximately 3,500–4,000 sheets / hour.
Feeder type: Automatic single-sheet feeder with mechanical gripper transport.
Delivery system: High pile delivery with continuous automatic sheet output.
Registration: High-precision mechanical grippers and side lays for accurate sheet alignment.
Substrate thickness: Thin paper up to heavy cardboard and carton stock.
Applications: Letterpress printing, die-cutting, creasing, embossing, perforating, numbering, and packaging production.
Drive system: Heavy-duty mechanical cylinder drive with flywheel transmission.
Control system: Electromechanical operator controls with manual pressure and ink adjustment.
Renovation work (2018): Complete cleaning, mechanical servicing, lubrication overhaul, repainting, and operational restoration for production use.
Machine dimensions (L x W x H): approximately 3.34 m x 1.96 m x 1.60 m.
Total weight: approximately 4,500–4,800 kg.
Power consumption: approximately 5.5 kW to 7 kW (three-phase industrial supply).
