CartecREF: TECH2026040870
BHW ONIX OX5 | 1996
Available Now1996used
Spécifications Techniques
Catégorie
Packaging
Marque
Cartec
Modèle
BHW ONIX OX5
Année
1996
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | BHW ONIX OX5 |
| Dimensions | 3.5 m x 2.5 m x 1.5 m |
| Poids | 2500.00 kg |
Description

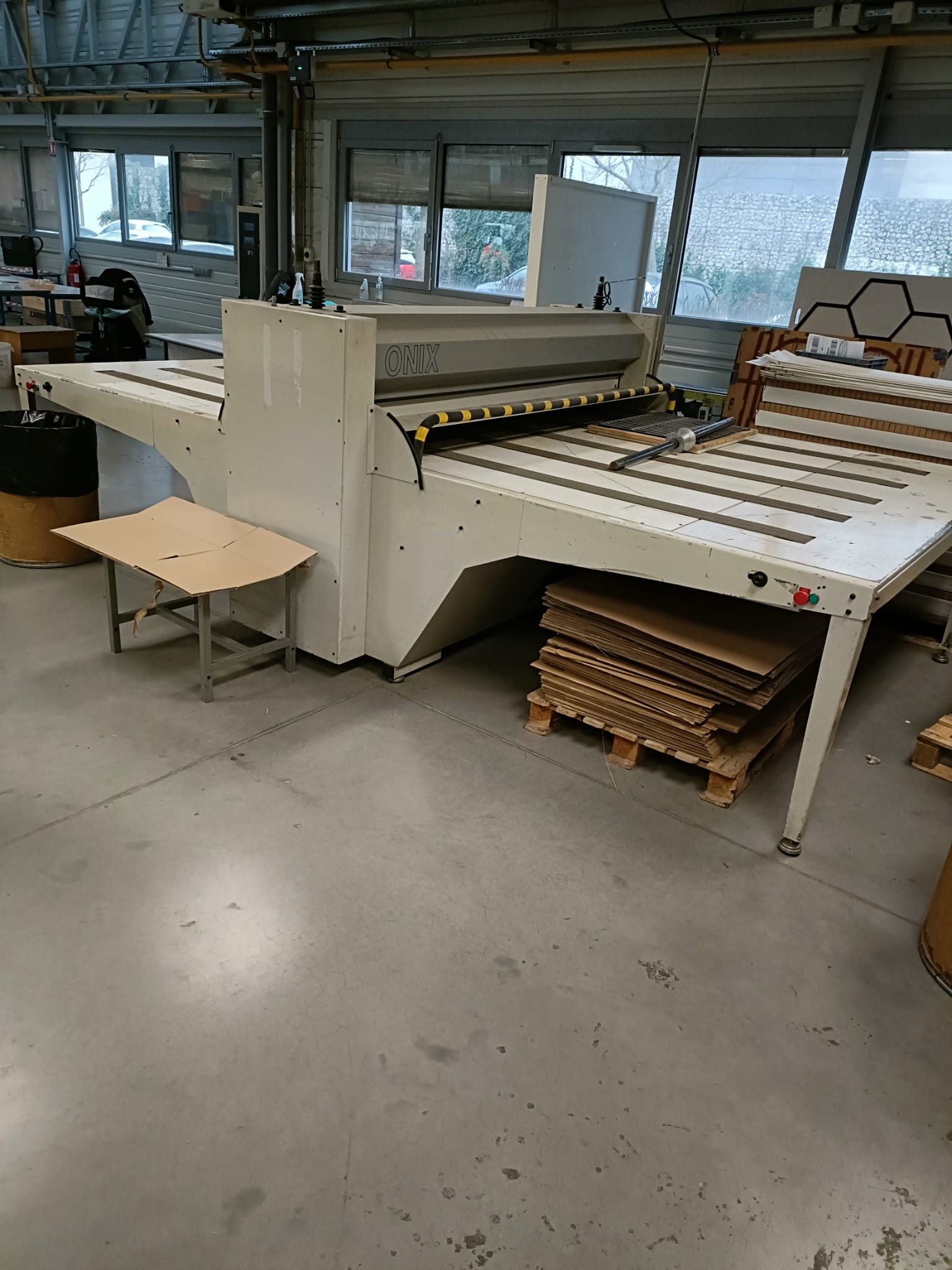

Configuration: Industrial flatbed cutting and creasing machine.
Model: BHW ONIX OX5.

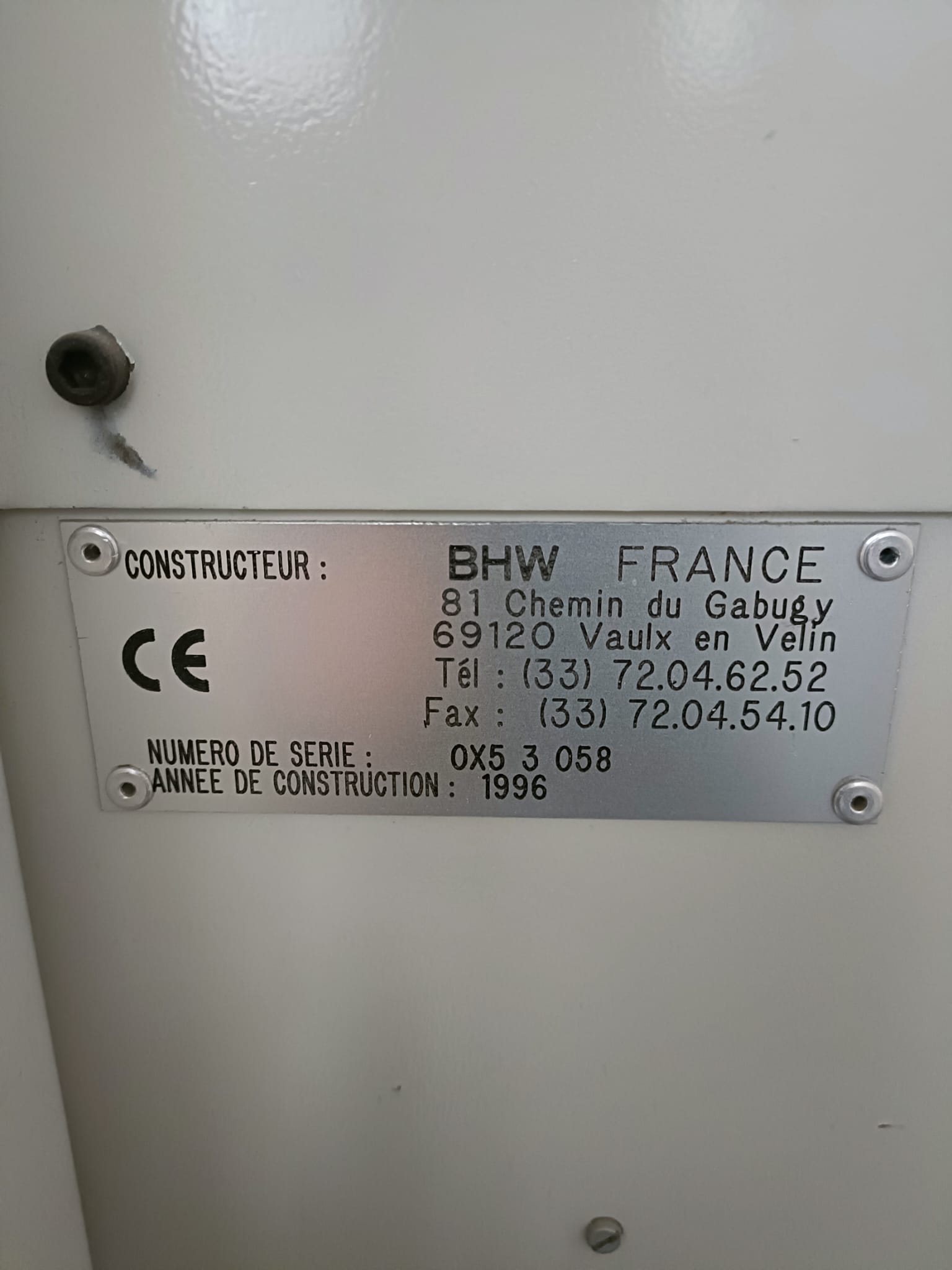

Manufacturer: BHW France.
Year: 1996.
Machine type: Flatbed die-cutting and sample-making table for cardboard, corrugated board, foam, plastics, and display materials.
Cutting system: Oscillating / reciprocating blade cutting system with pressure beam technology

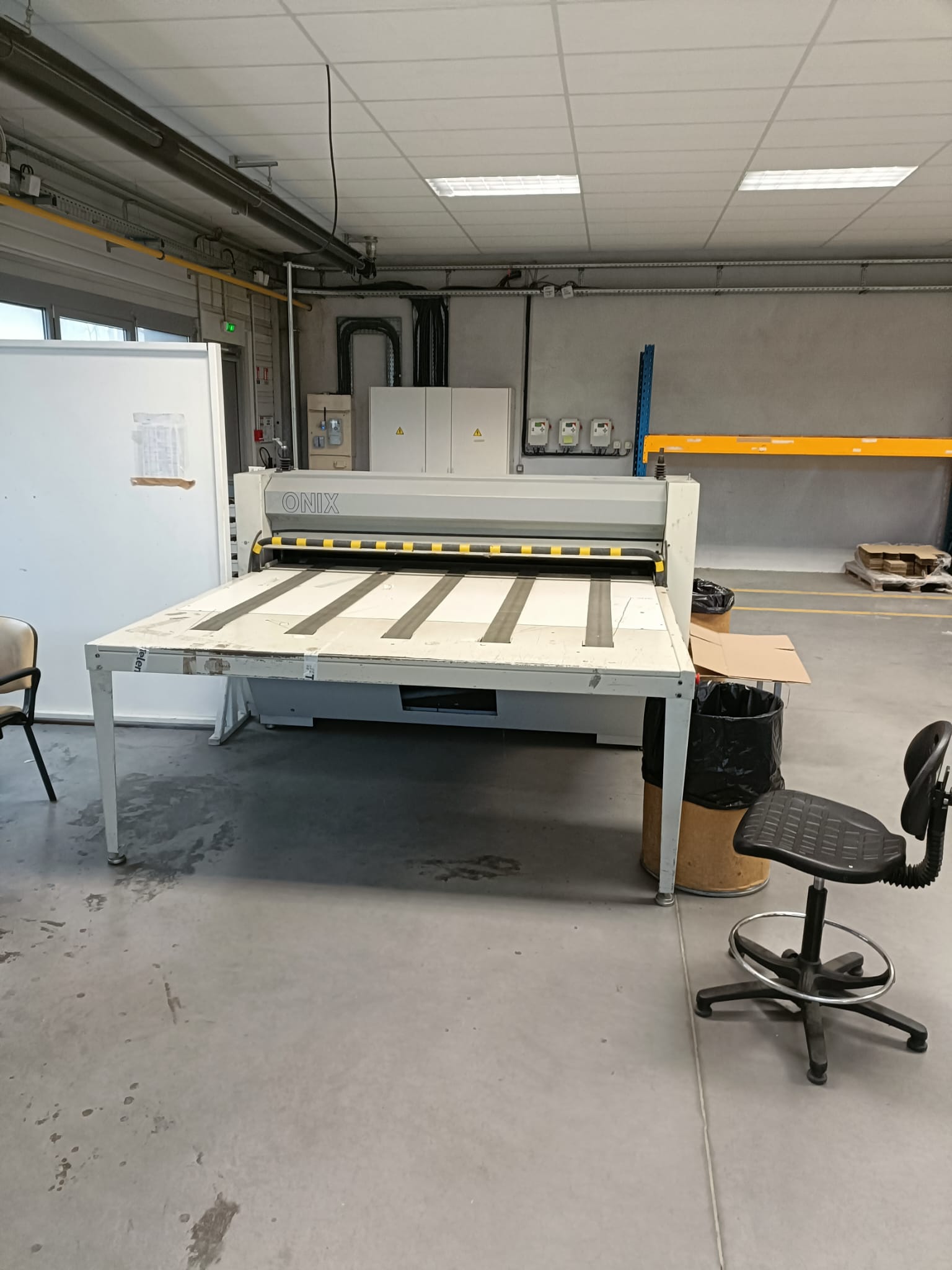

Working table: Large-format flat support table with longitudinal material guides.
Material feeding: Manual sheet positioning with front alignment stops.
Applications: Packaging prototyping, POS display production, corrugated cardboard cutting, foam board processing, technical materials cutting, and short-run packaging production.
Compatible materials: Corrugated cardboard, Compact cardboard, Foam board, PVC sheets, Rubber, Cork, Leather and synthetic leather, Technical insulation materials.
Max working width: approximately 1600–2000 mm.
Material thickness capacity: up to approximately 20–30 mm depending on substrate density.

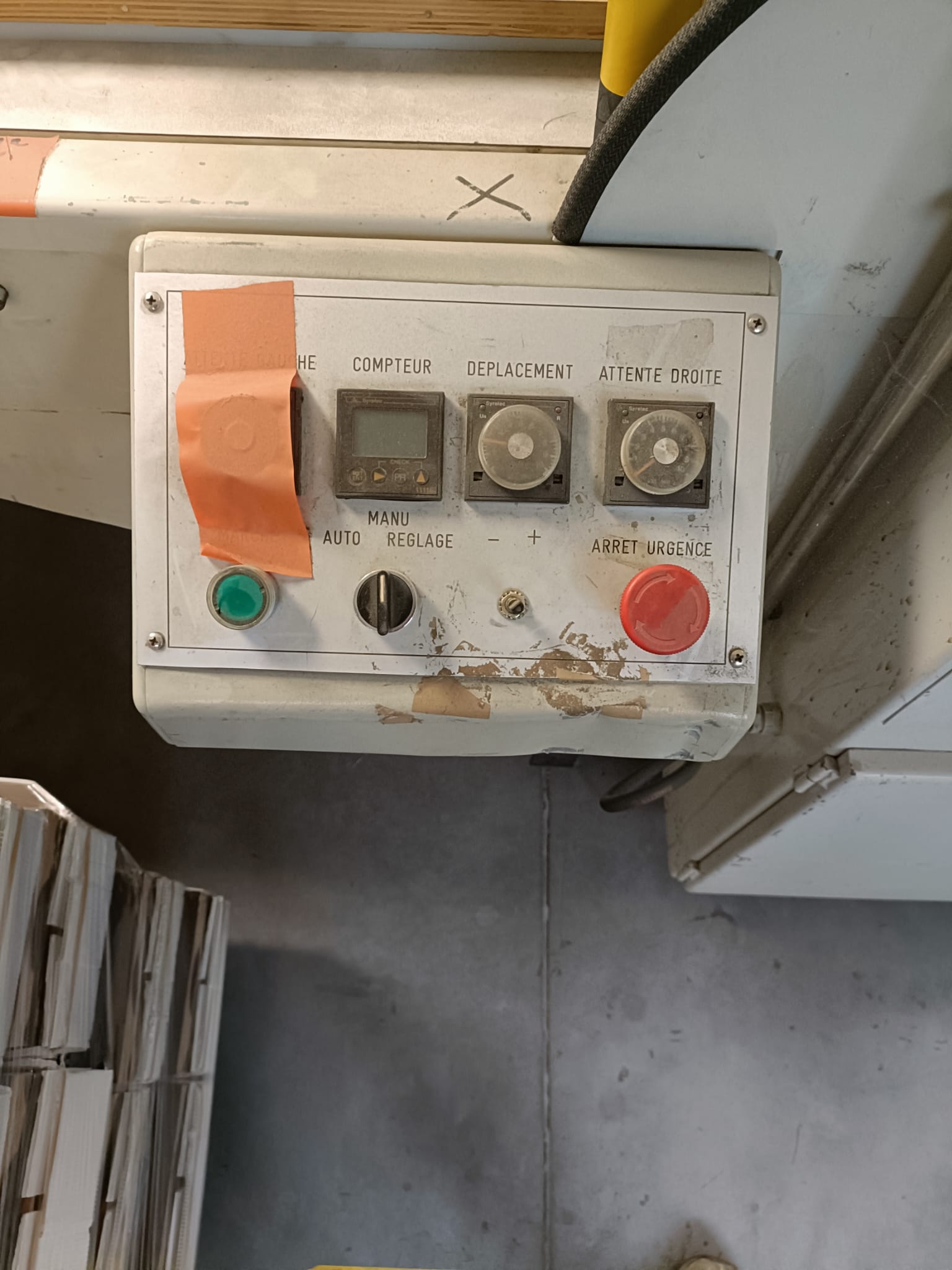

Control system: Electronic operator control system with manual and automatic operating modes.
Positioning system: Mechanical guide rails and calibrated adjustment system.
Drive system: Electric motorized cutting beam system.
Safety system: Emergency stop controls, front safety bar, and protected cutting area.
Operation mode: Semi-automatic industrial cutting workflow
Power supply: 380V three-phase industrial supply.
Power consumption: approximately 4–7 kW depending on configuration
Machine dimensions (L x W x H): approximately 3.5 m x 2.5 m x 1.5 m.
Total weight: approximately 1,500–2,500 kg depending on table configuration.
Model: BHW ONIX OX5.
Manufacturer: BHW France.
Year: 1996.
Machine type: Flatbed die-cutting and sample-making table for cardboard, corrugated board, foam, plastics, and display materials.
Cutting system: Oscillating / reciprocating blade cutting system with pressure beam technology
Working table: Large-format flat support table with longitudinal material guides.
Material feeding: Manual sheet positioning with front alignment stops.
Applications: Packaging prototyping, POS display production, corrugated cardboard cutting, foam board processing, technical materials cutting, and short-run packaging production.
Compatible materials: Corrugated cardboard, Compact cardboard, Foam board, PVC sheets, Rubber, Cork, Leather and synthetic leather, Technical insulation materials.
Max working width: approximately 1600–2000 mm.
Material thickness capacity: up to approximately 20–30 mm depending on substrate density.
Control system: Electronic operator control system with manual and automatic operating modes.
Positioning system: Mechanical guide rails and calibrated adjustment system.
Drive system: Electric motorized cutting beam system.
Safety system: Emergency stop controls, front safety bar, and protected cutting area.
Operation mode: Semi-automatic industrial cutting workflow
Power supply: 380V three-phase industrial supply.
Power consumption: approximately 4–7 kW depending on configuration
Machine dimensions (L x W x H): approximately 3.5 m x 2.5 m x 1.5 m.
Total weight: approximately 1,500–2,500 kg depending on table configuration.
