HeidelbergREF: TECH202605890a

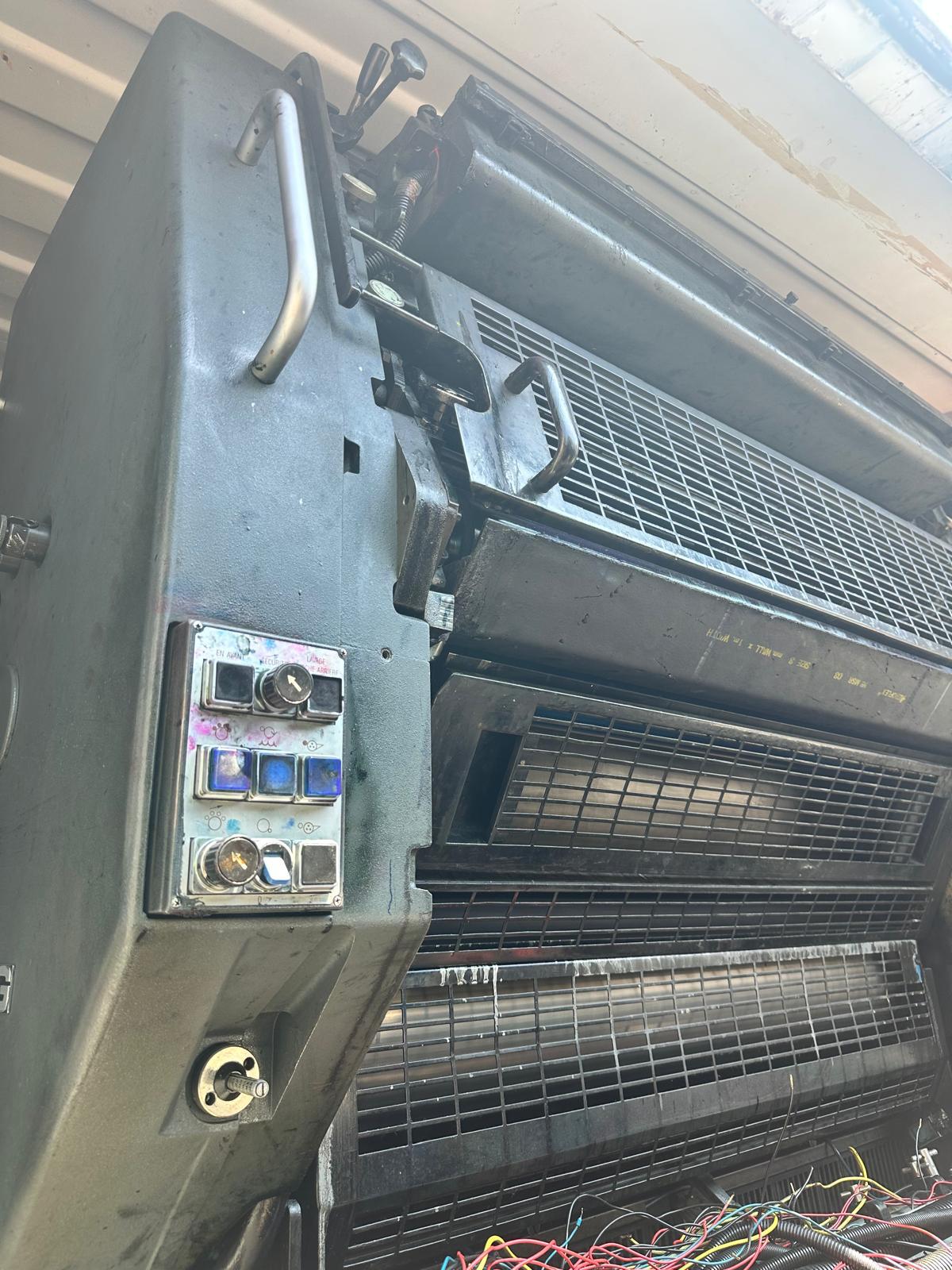

Heidelberg SORS | 1991
Available Now1991used
Spécifications Techniques
Catégorie
Offset Printing Presses
Marque
Heidelberg
Modèle
Heidelberg SORS
Année
1991
Couleurs d'Impression
1 Color
Emplacement
L'Isère, France
CETTE MACHINE A ÉTÉ VENDUE
Spécifications Techniques
| Modèle | Heidelberg SORS |
| Format Max Feuille | 72 x 102 cm (28 x 40 inches) |
| Vitesse d'Impression Max | 12,000 sheets / hour |
| Dimensions | 3.0 m x 2.4 m x 2.2 m |
| Poids | 10000.00 kg |
Description

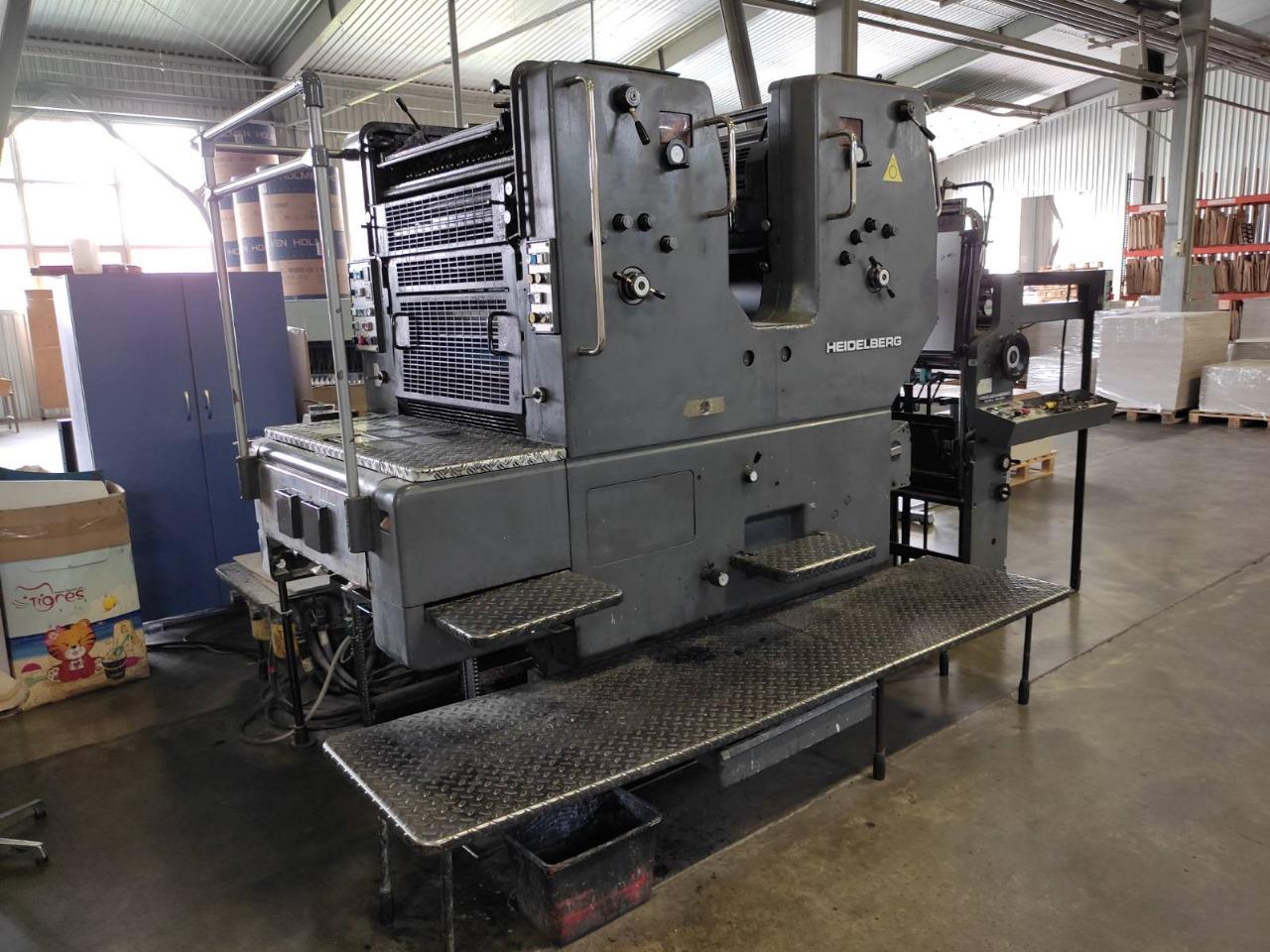

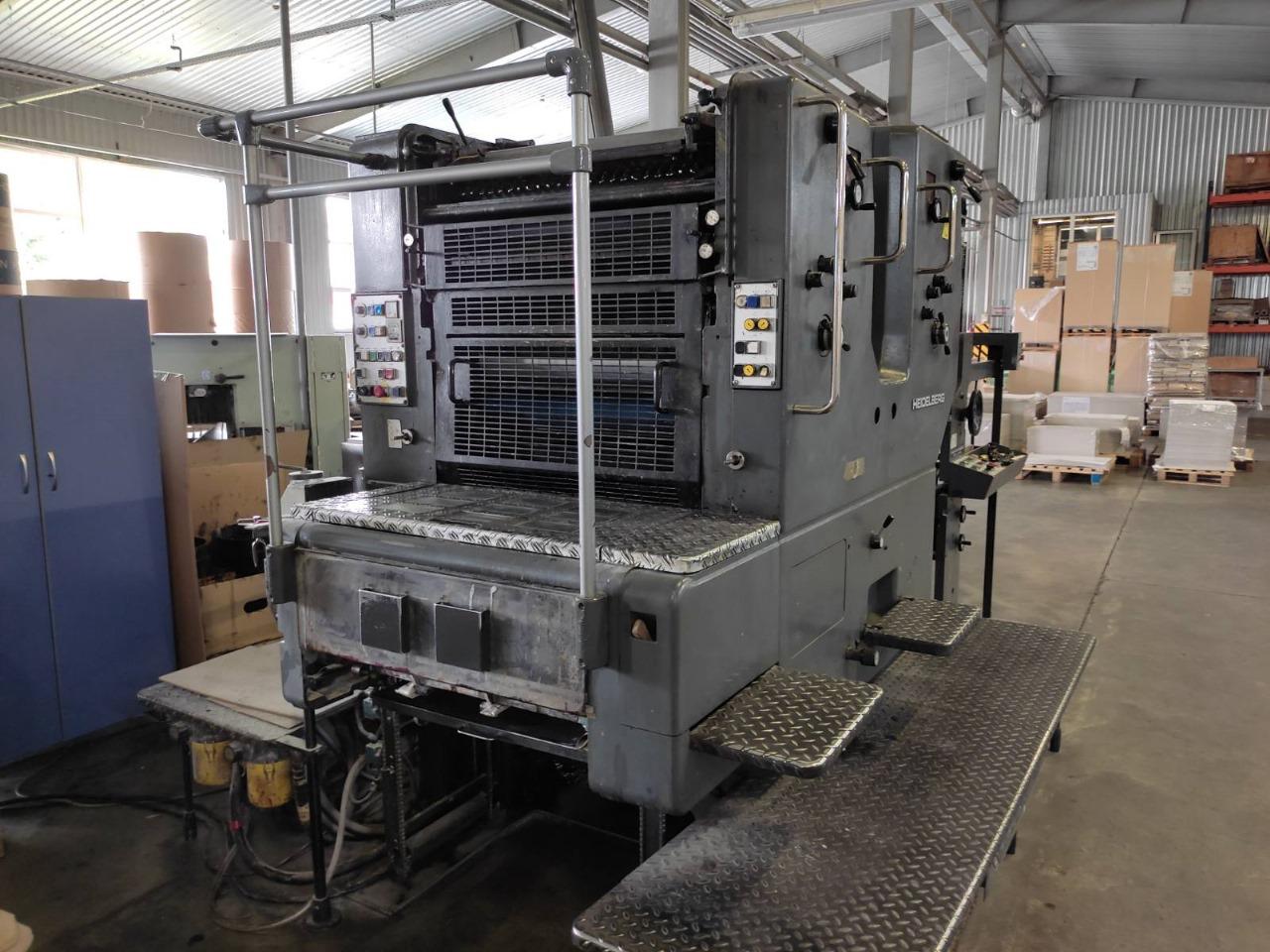

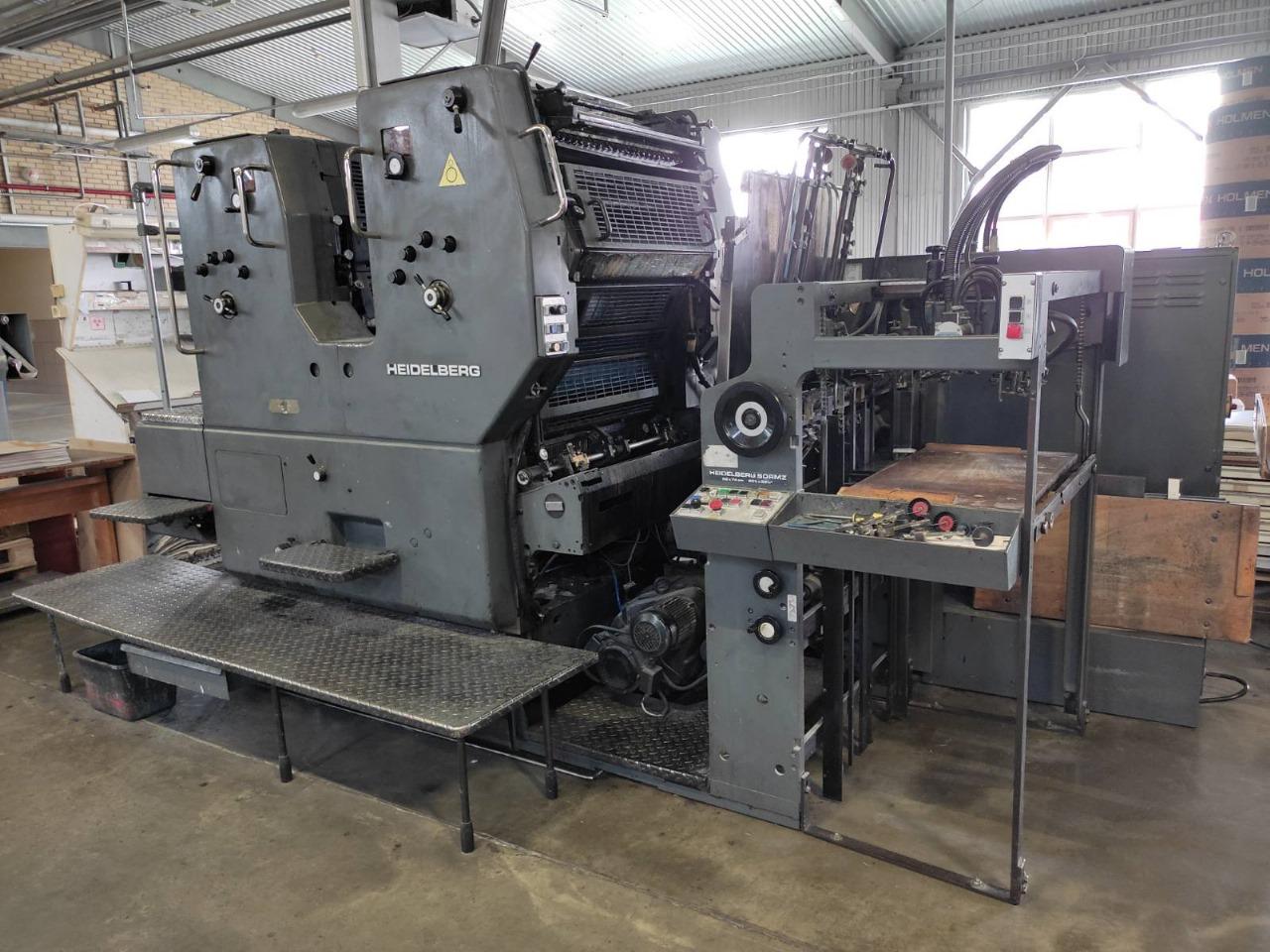

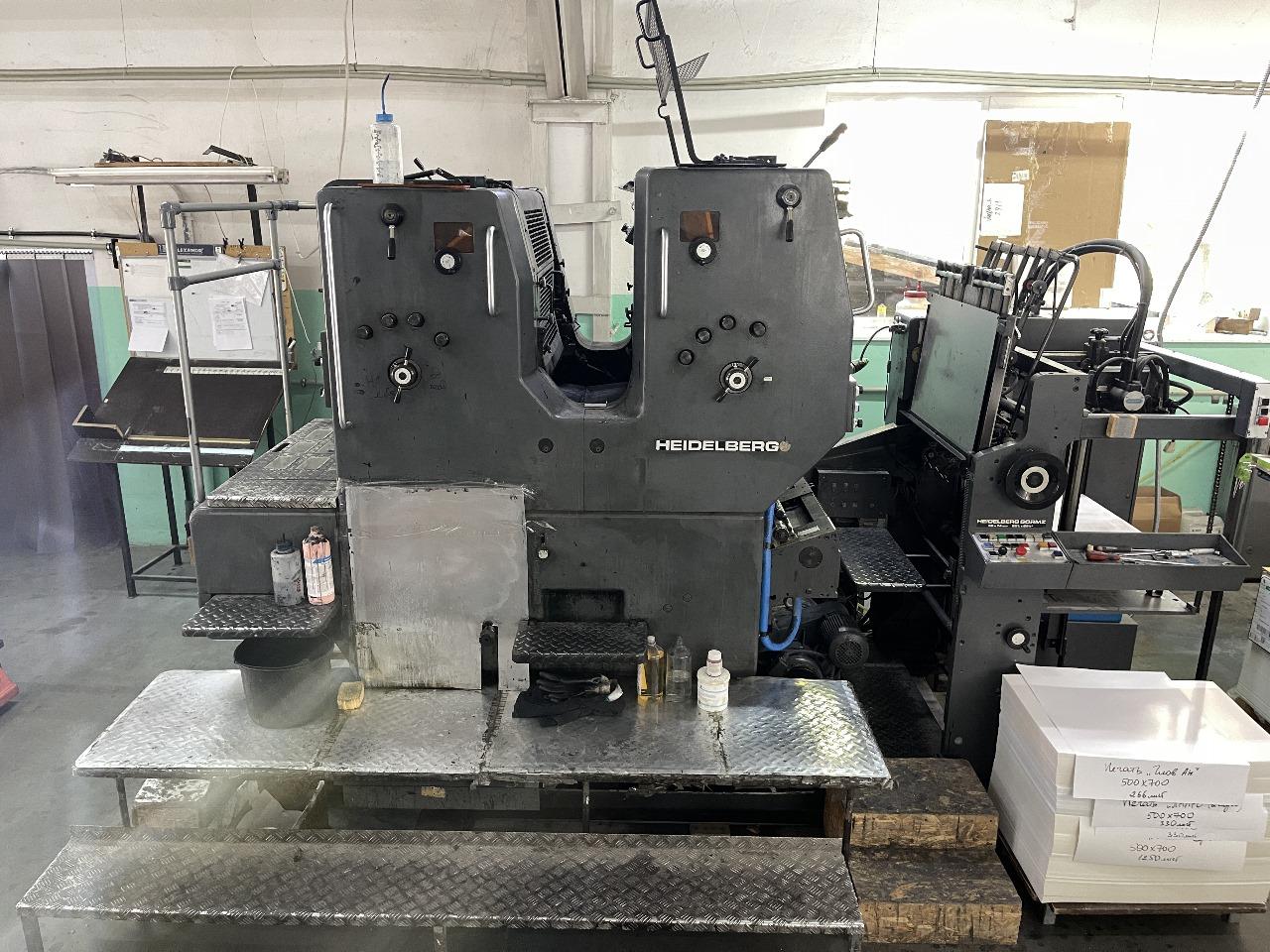

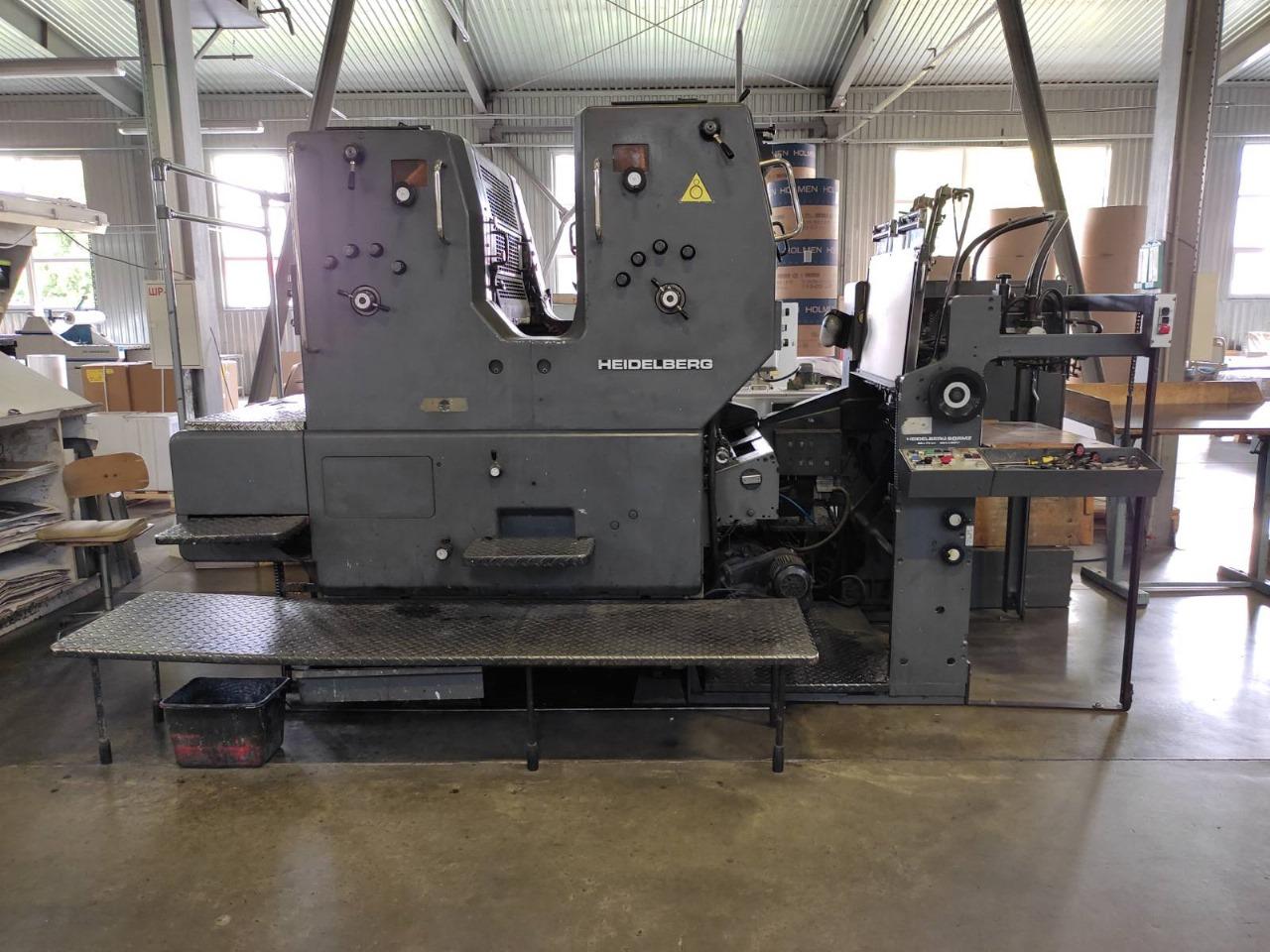

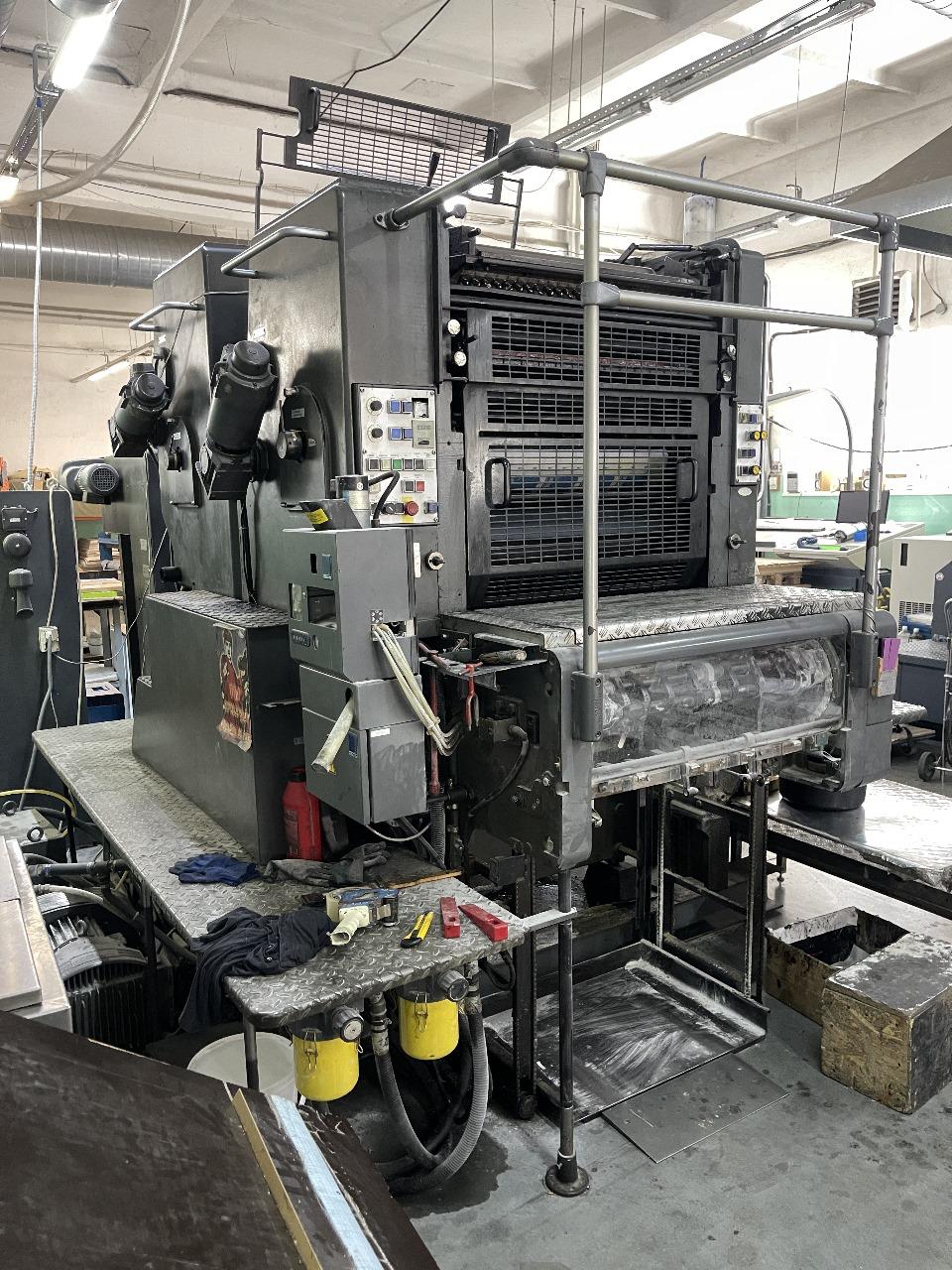

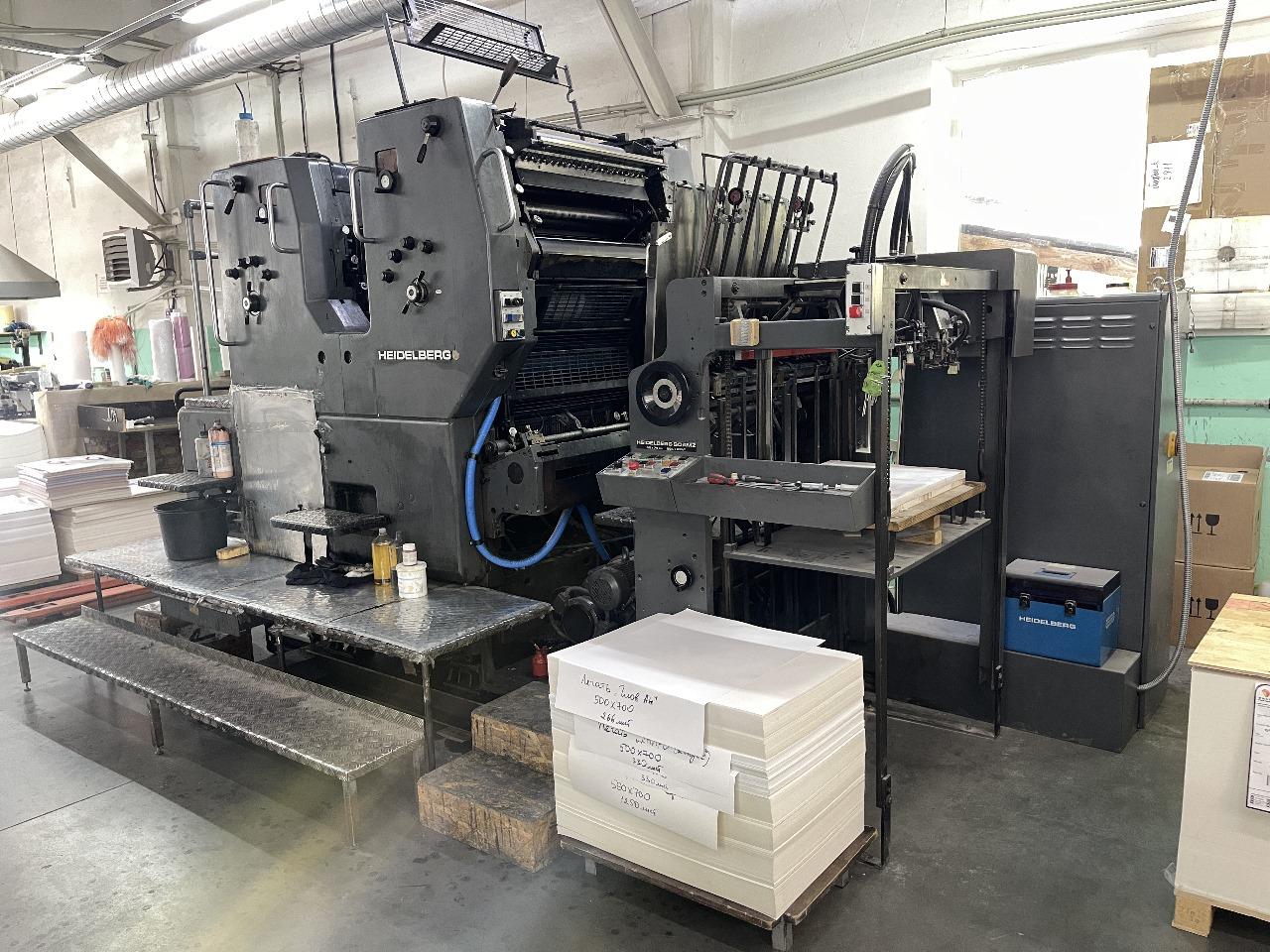

Configuration: Single-color sheetfed offset printing press.
Model: Heidelberg SORS.
Year: 1991.
Machine type: Industrial B1-format offset printing machine for commercial printing.
Number of colors: 1 printing unit.
Max paper size: 72 x 102 cm (28 x 40 inches).
Min paper size: 28 x 42 cm.
Max printing area: approximately 70 x 102 cm.
Paper thickness range: 0.04 mm up to 0.40 mm.
Printing system: Sheetfed offset lithographic system.
Inking system: Conventional Heidelberg inking system with oscillating rollers.

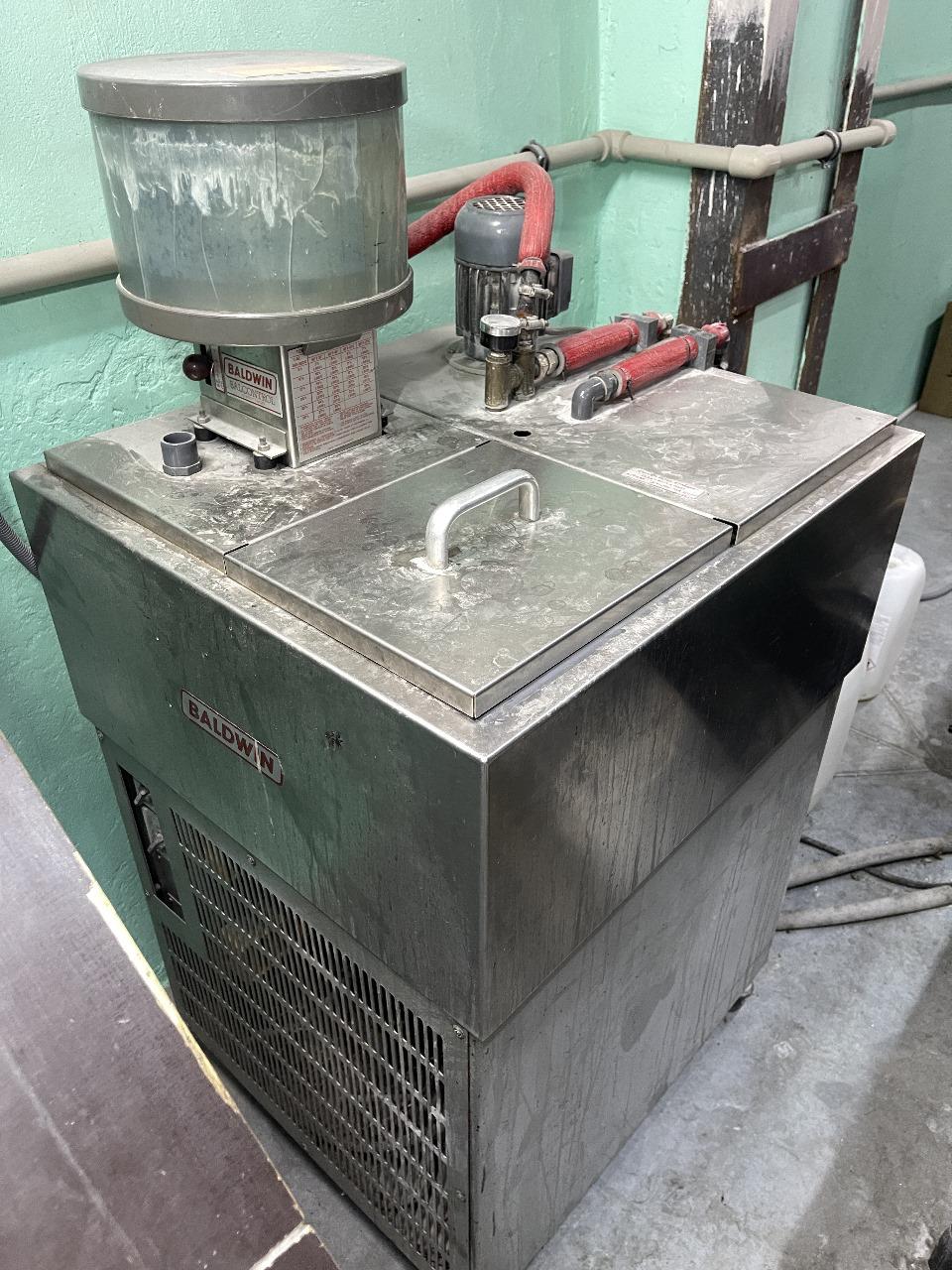

Dampening system: Alcolor continuous dampening system with alcohol metering and cooling unit.
Plate size: approximately 770 x 1030 mm.
Plate thickness: approximately 0.30 mm.
Blanket size: approximately 1045 x 790 mm.
Blanket thickness: approximately 1.90 mm.
Max speed: up to 12,000 sheets / hour.
Feeder type: Stream feeder with belt system and double-sheet detection.
Delivery system: Low pile delivery with powder spray unit.
Registration: Mechanical side lays with high-precision gripper system.
Cylinders: Chromed impression cylinders for improved durability and print quality.
Drying system: Powder spray drying (UV dryer optional on some configurations).
Control system: Electromechanical control with manual plate change.
Applications: Flyers, brochures, posters, packaging sheets, commercial print jobs, and medium-to-large format production.
Machine dimensions (L x W x H): approximately 3.0 m x 2.4 m x 2.2 m.
Total weight: approximately 7,000 – 10,000 kg depending on configuration.
Power supply: 380V industrial supply.
Power consumption: approximately 8–12 kW (typical for B1 single-color offset presses of this class).
Model: Heidelberg SORS.
Year: 1991.
Machine type: Industrial B1-format offset printing machine for commercial printing.
Number of colors: 1 printing unit.
Max paper size: 72 x 102 cm (28 x 40 inches).
Min paper size: 28 x 42 cm.
Max printing area: approximately 70 x 102 cm.
Paper thickness range: 0.04 mm up to 0.40 mm.
Printing system: Sheetfed offset lithographic system.
Inking system: Conventional Heidelberg inking system with oscillating rollers.
Dampening system: Alcolor continuous dampening system with alcohol metering and cooling unit.
Plate size: approximately 770 x 1030 mm.
Plate thickness: approximately 0.30 mm.
Blanket size: approximately 1045 x 790 mm.
Blanket thickness: approximately 1.90 mm.
Max speed: up to 12,000 sheets / hour.
Feeder type: Stream feeder with belt system and double-sheet detection.
Delivery system: Low pile delivery with powder spray unit.
Registration: Mechanical side lays with high-precision gripper system.
Cylinders: Chromed impression cylinders for improved durability and print quality.
Drying system: Powder spray drying (UV dryer optional on some configurations).
Control system: Electromechanical control with manual plate change.
Applications: Flyers, brochures, posters, packaging sheets, commercial print jobs, and medium-to-large format production.
Machine dimensions (L x W x H): approximately 3.0 m x 2.4 m x 2.2 m.
Total weight: approximately 7,000 – 10,000 kg depending on configuration.
Power supply: 380V industrial supply.
Power consumption: approximately 8–12 kW (typical for B1 single-color offset presses of this class).
