RyobiREF: TECH202605743b

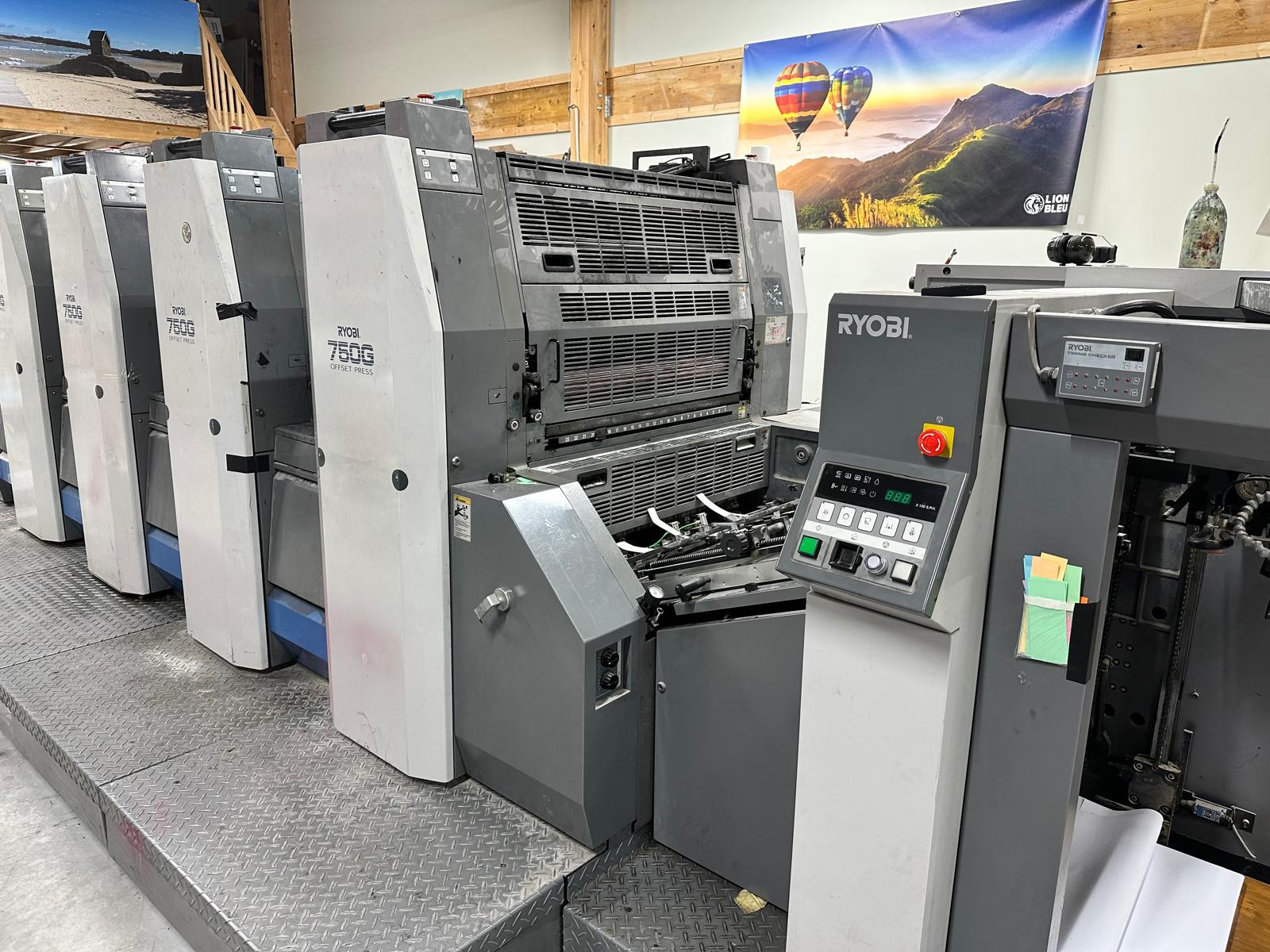

Ryobi 750G | Unkn.
Available Nowused
Spécifications Techniques
| Modèle | Ryobi 750G |
| Format Max Feuille | 788 x 600 mm |
| Vitesse d'Impression Max | 16,000 sheets / hour |
| Dimensions | approximately 7–10 m length depending on number of units |
| Poids | 25000.00 kg |
Description

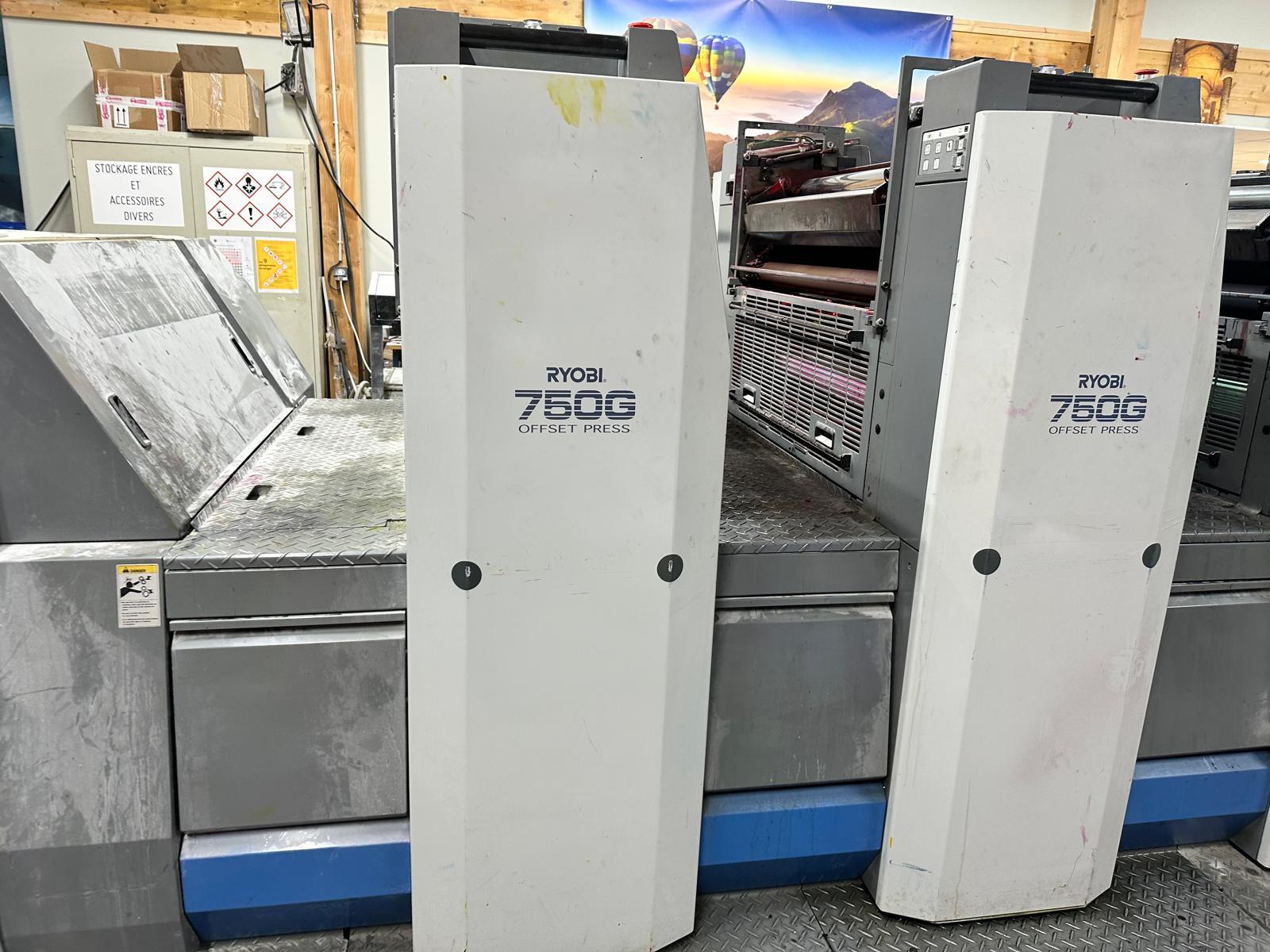

Configuration: Multi-color sheetfed offset printing press.
Model: Ryobi 750G (750 Series).
Year: Introduced around 2010 (exact year depends on configuration).
Machine type: B2-format offset printing press for commercial and packaging printing.

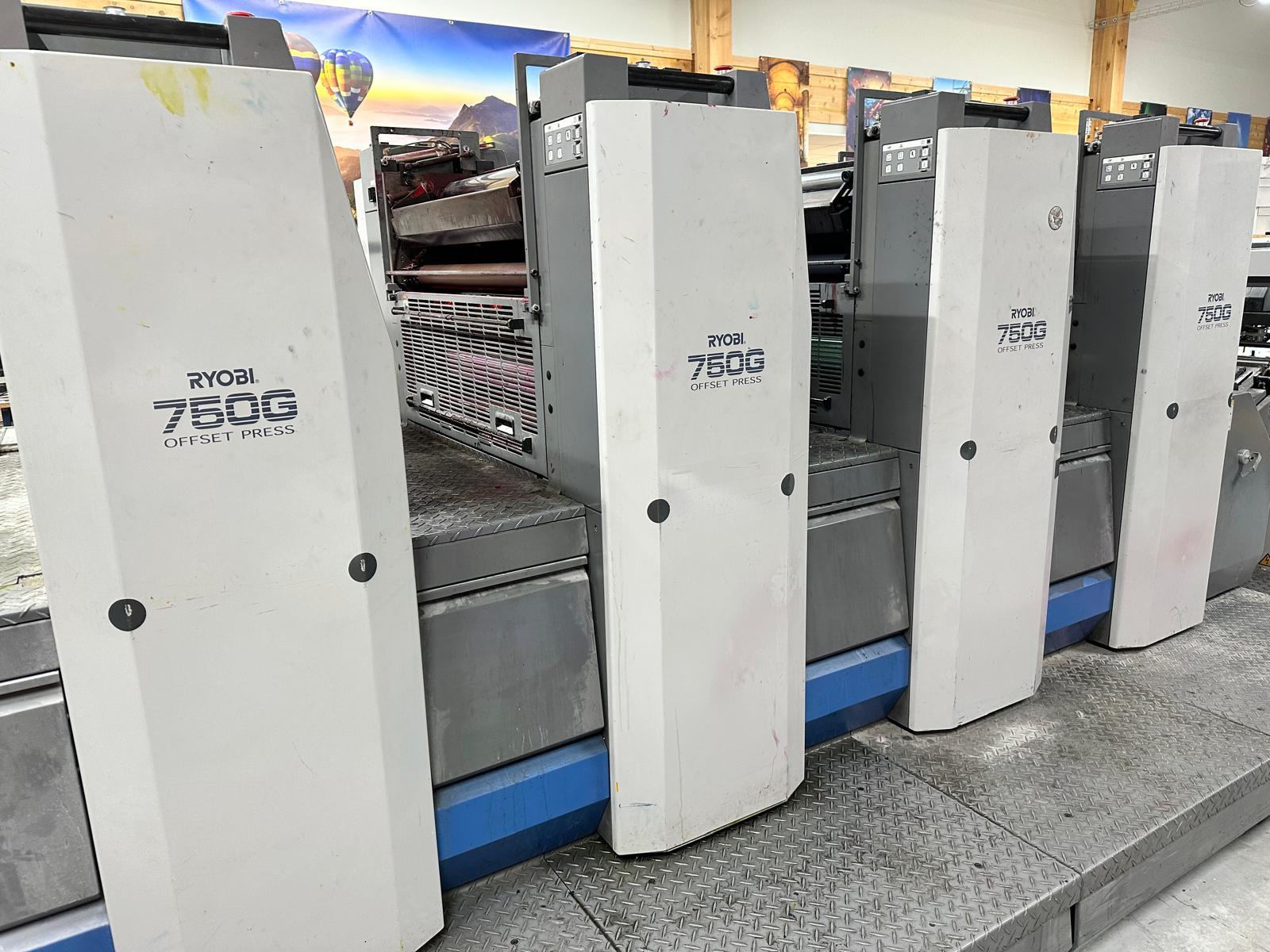

Number of colors: 2 to 10 units (modular configurations available).
Max paper size: approximately 788 x 600 mm.
Min paper size: approximately 279 x 200 mm.
Max printing area:
765 x 545 mm (S type)
765 x 580 mm (XL type)
Paper thickness range:
Standard: 0.04 mm to 0.60 mm
Optional: up to 0.80 mm (cardboard)
Printing system: Sheetfed offset lithographic system.
Inking system: High-precision inking system with programmable ink keys (up to 400 gradations).
Dampening system: Continuous dampening system with automatic control.
Plate changing system:
Semi-automatic plate change (standard)
Full automatic RPC plate changing (optional).
Max speed: up to 16,000 sheets / hour.

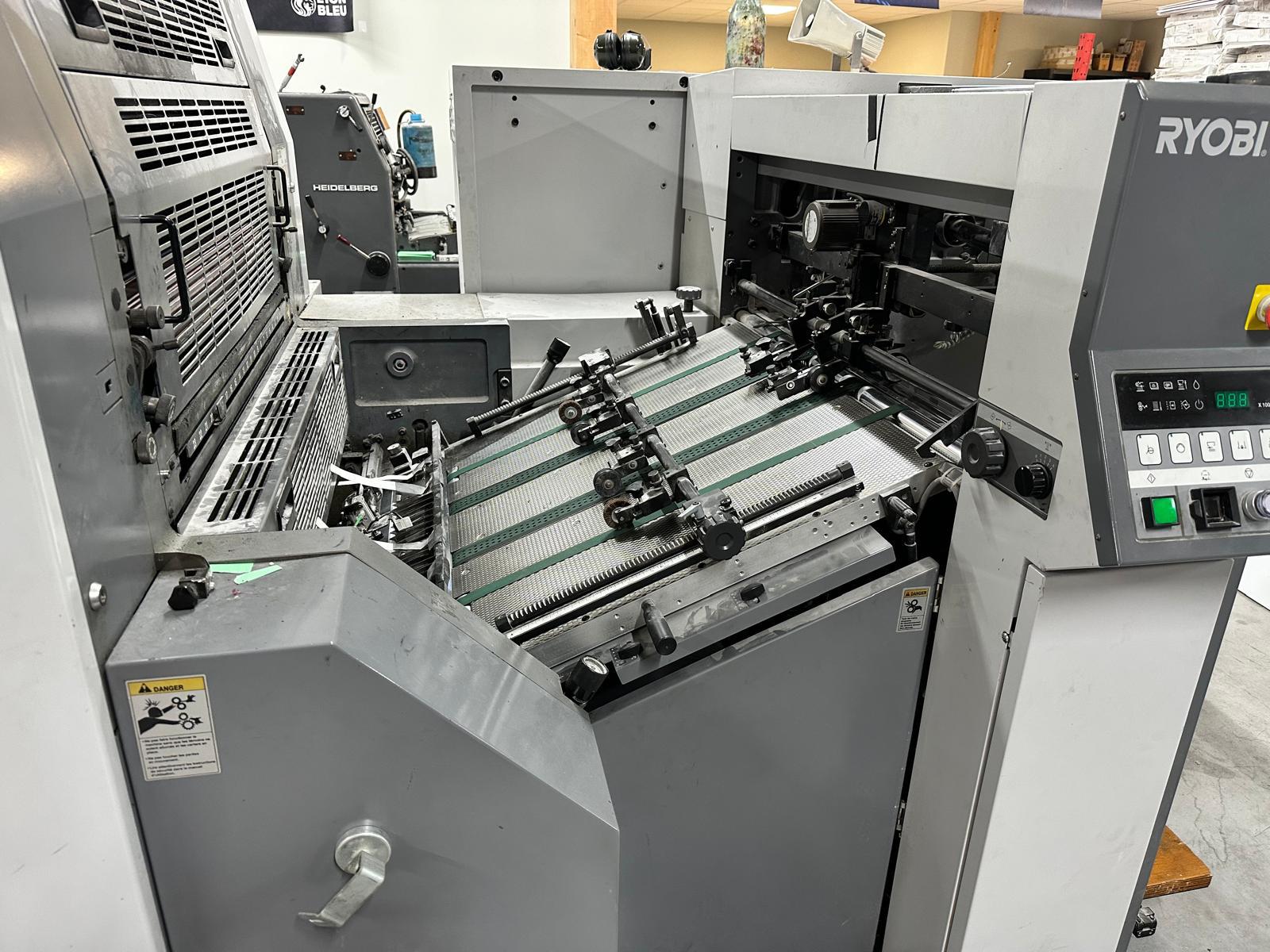

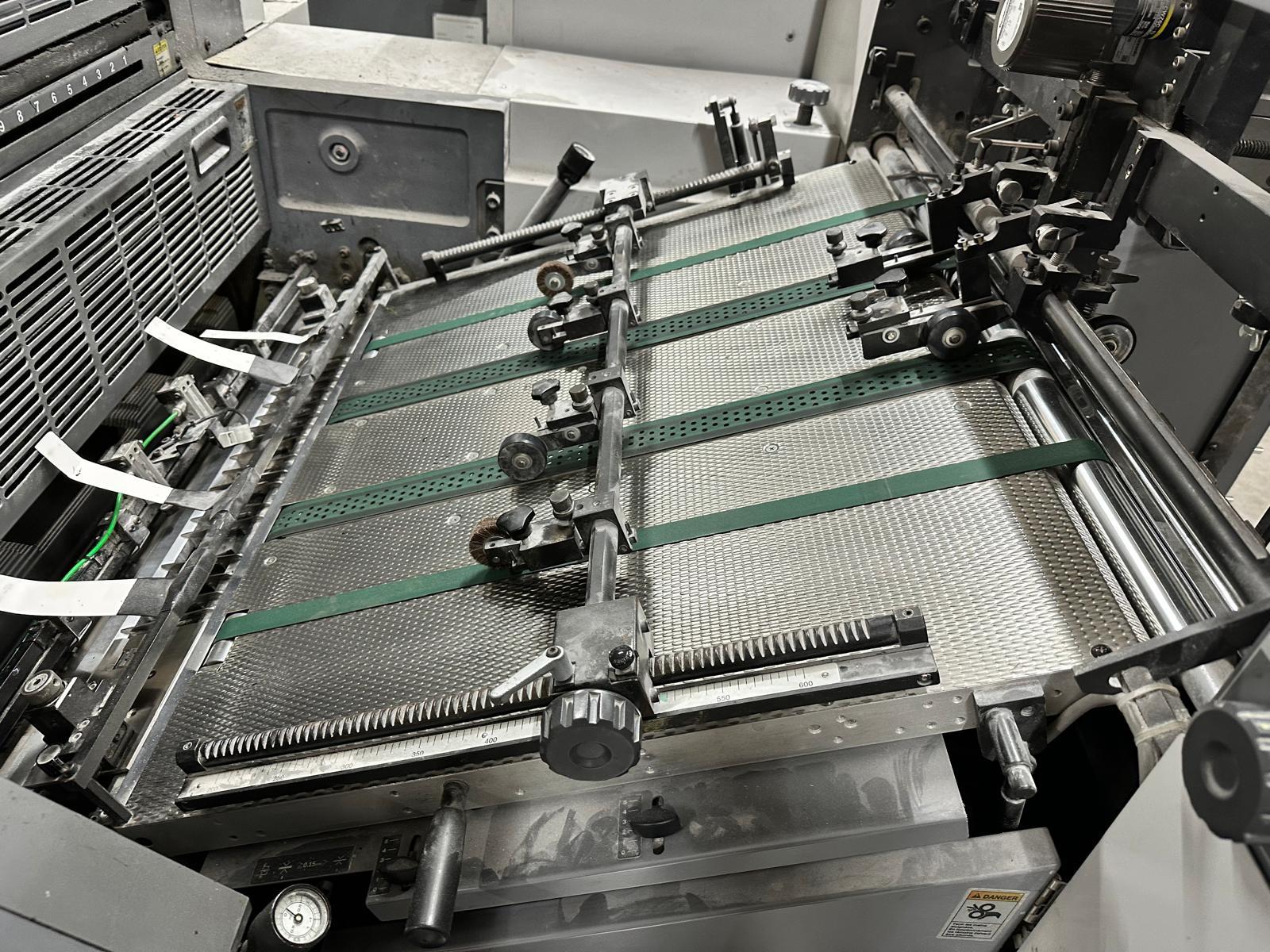

Feeder type: High-grade suction feeder with double-sheet detection.

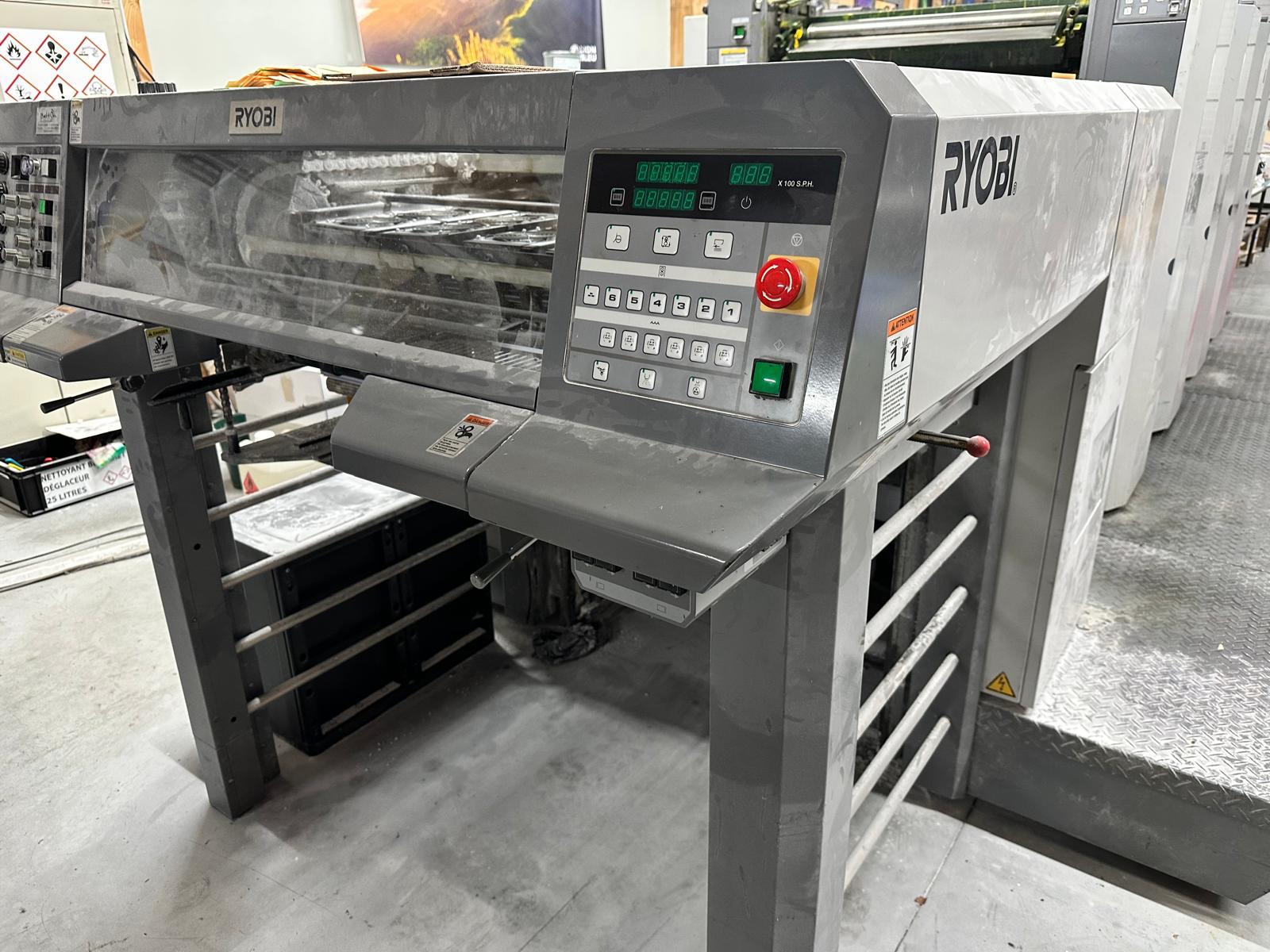

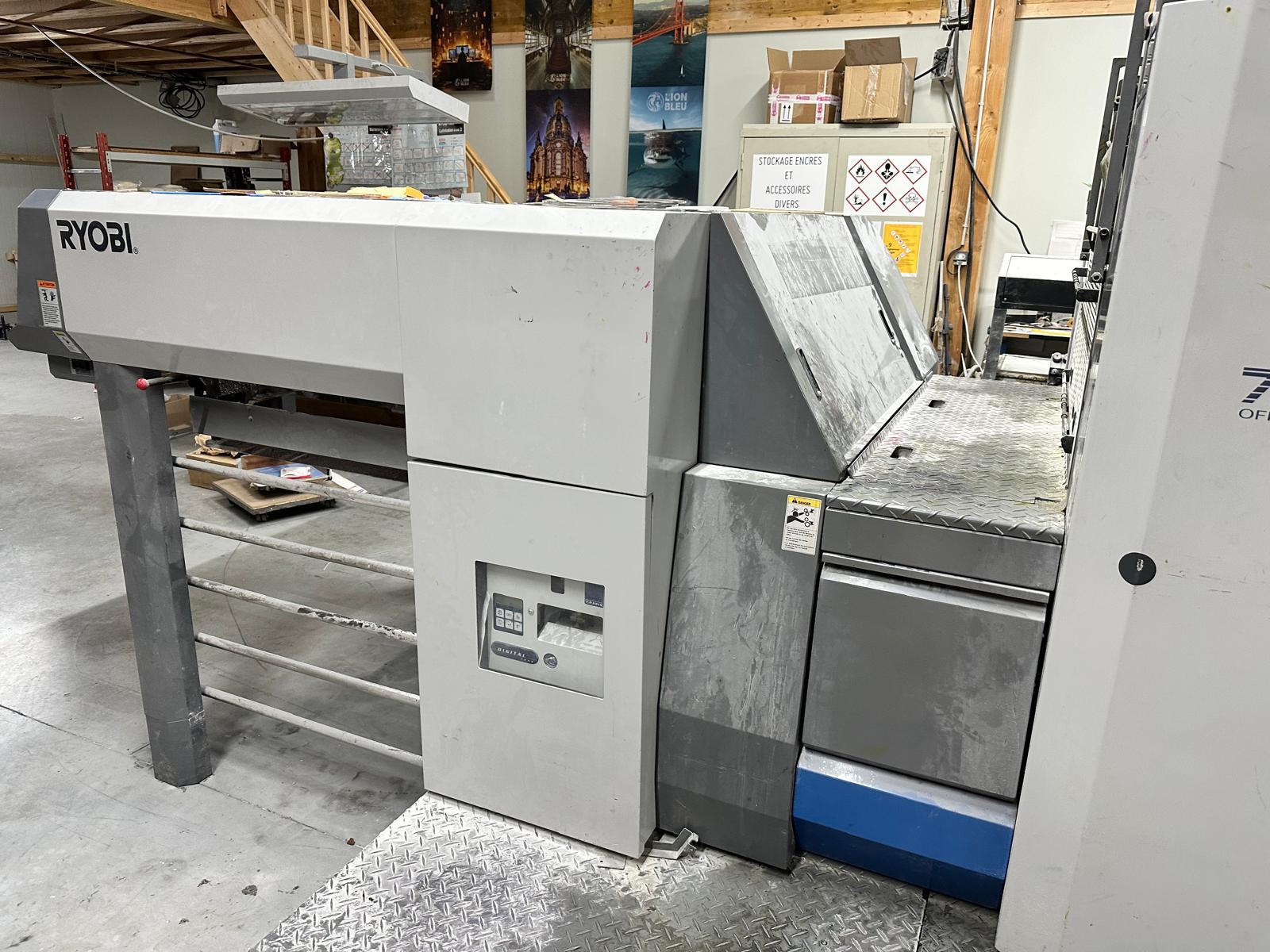

Delivery system: High pile delivery with advanced sheet piling and air management system.
Registration system: High-precision gripper system with stable paper transport using double-diameter cylinders.
Automation features:
Smart Make-Ready system (automatic setup and job changeover)
CIP3 / CIP4 ink preset compatibility

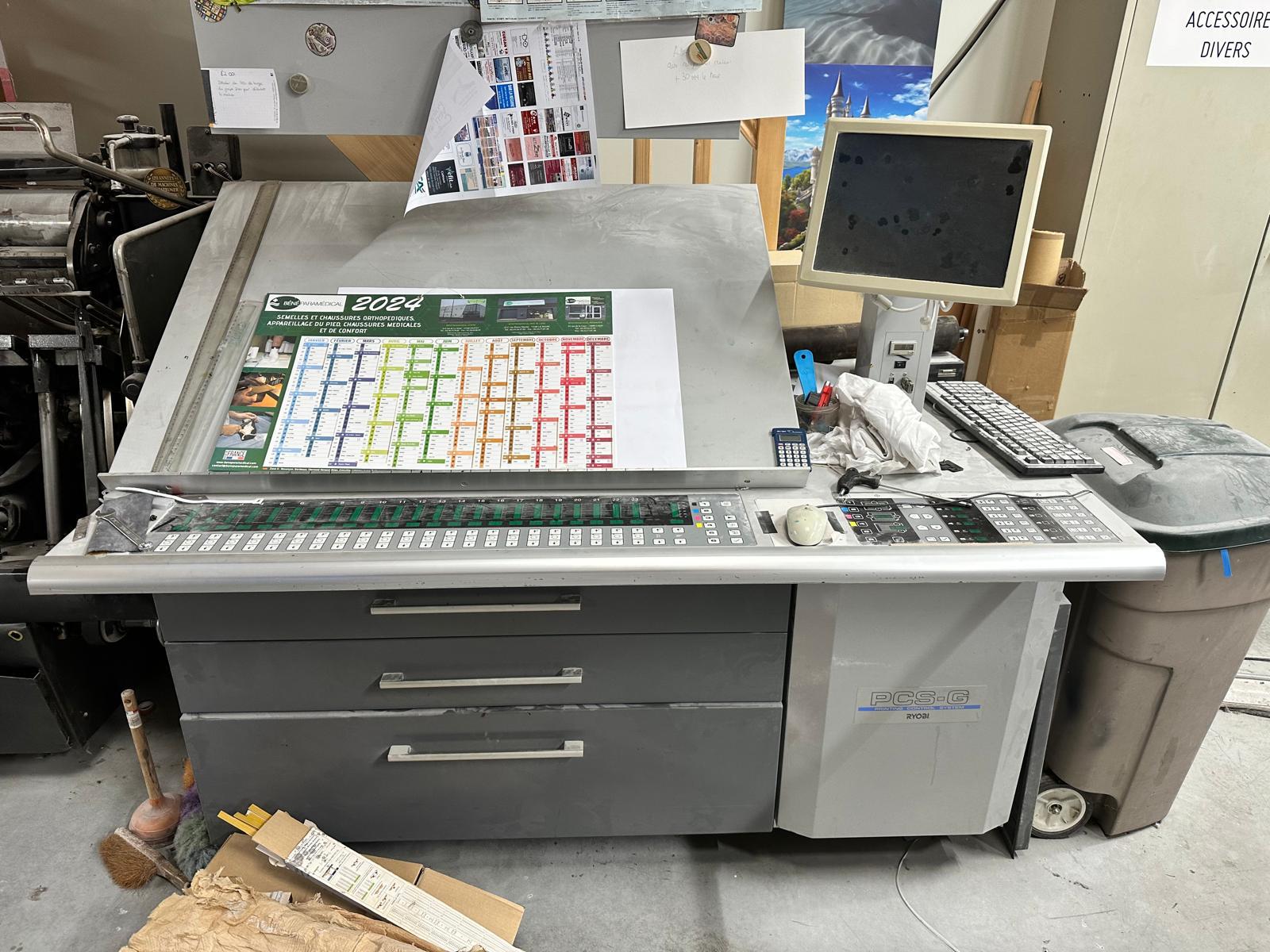

Centralized touch-screen control (PCS-G system)
Automatic washing systems (optional)
Drying / finishing options:
Powder spray
Infrared drying
UV / LED-UV curing
Inline coating unit (optional)
Applications:
Commercial printing (brochures, flyers, magazines)
Packaging (carton printing, covers)
High-quality color production
Short to medium run jobs
Machine dimensions: approximately 7–10 m length depending on number of units.
Total weight: approximately 15,000 – 25,000 kg depending on configuration.

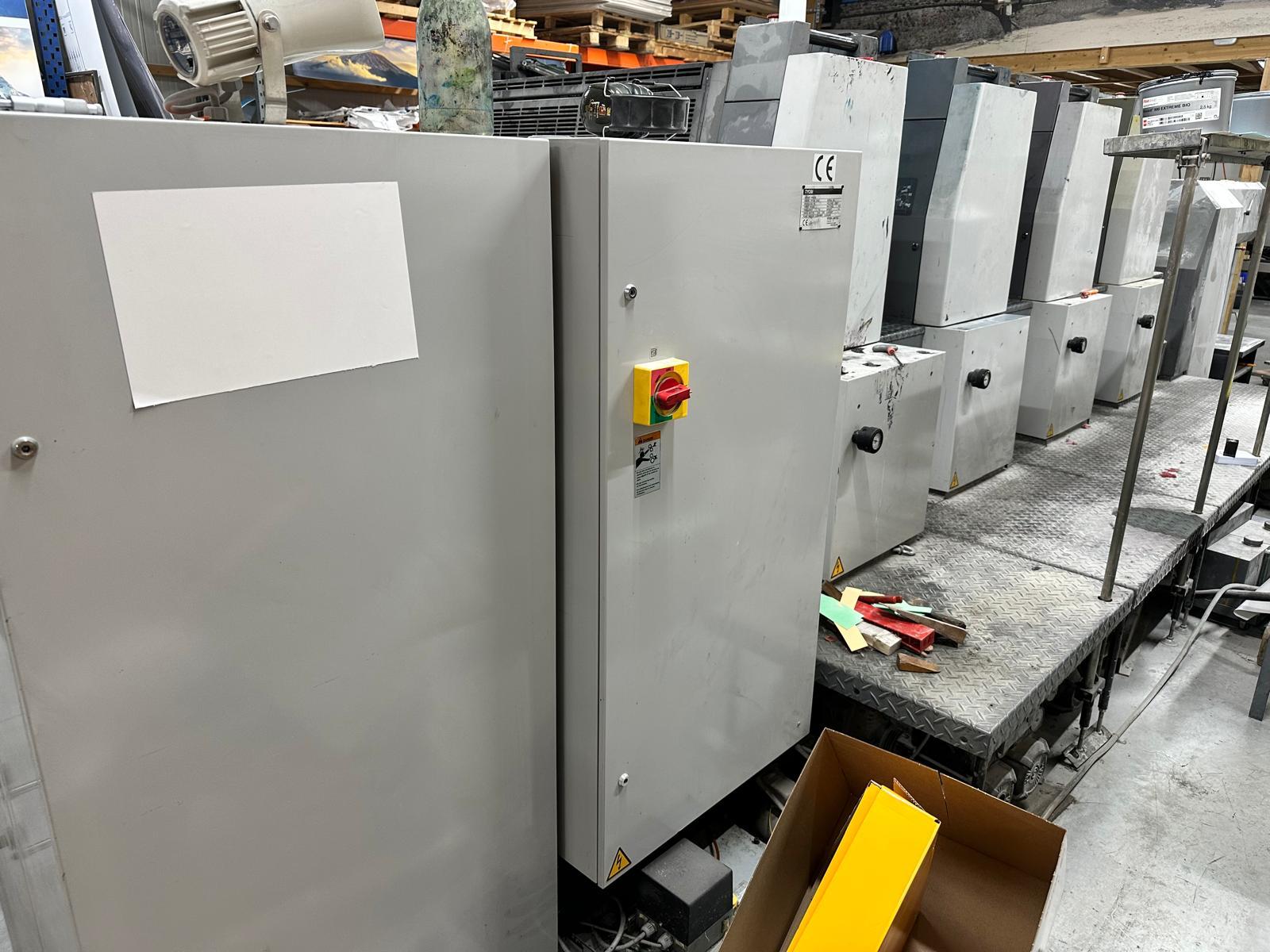

Power supply: 380–400V industrial supply.
Power consumption: approximately 20–40 kW depending on configuration and options.
