HeidelbergREF: TECH2026050ff8

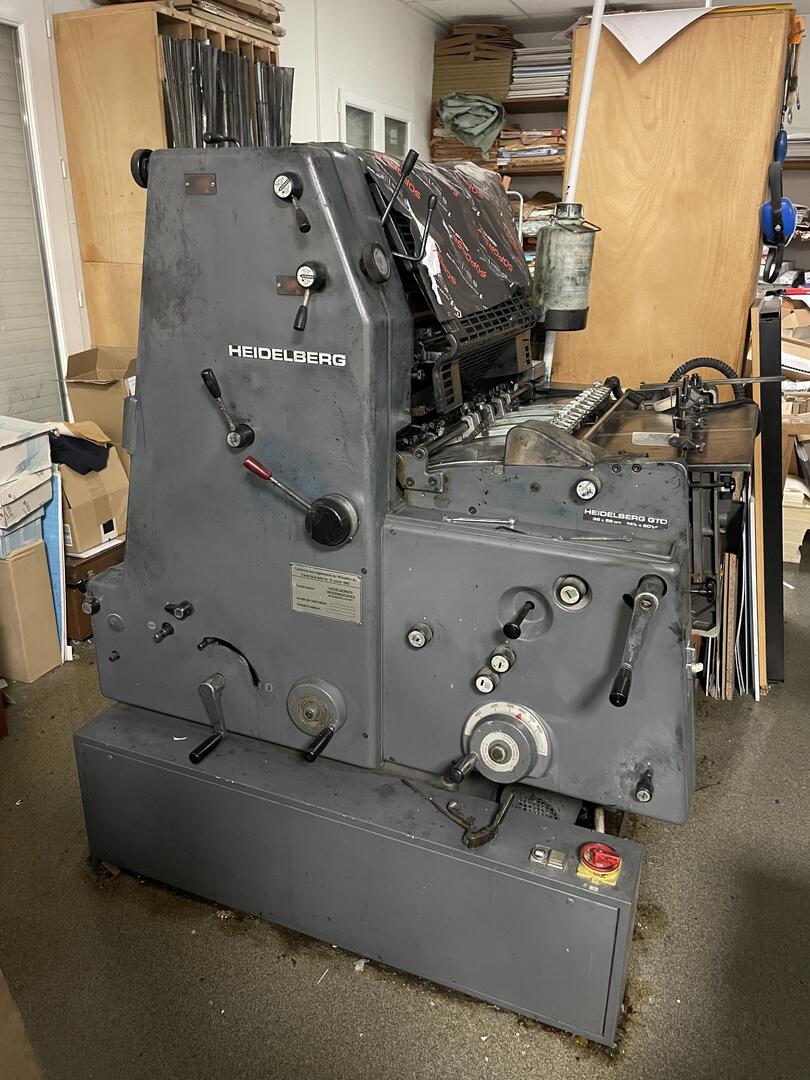

Heidelberg GTO 52 | 1985
Available Now1985used
Spécifications Techniques
Catégorie
Offset Printing Presses
Marque
Heidelberg
Modèle
Heidelberg GTO 52
Année
1985
Couleurs d'Impression
1 Color
Emplacement
L'Isère, France
Spécifications Techniques
| Modèle | Heidelberg GTO 52 |
| Format Max Feuille | 36 x 52 cm (360 x 520 mm) |
| Vitesse d'Impression Max | 8,000 sheets / hour |
| Dimensions | 1.35 m x 1.40 m x 1.55 m |
| Poids | 1370.00 kg |
Description
Configuration: Single-color sheetfed offset printing press.
Model: Heidelberg GTO 52.
Year: 1985.
Machine type: Small-format offset printing press for commercial and jobbing printing.
Number of colors: 1 printing unit.
Max paper size: 36 x 52 cm (360 x 520 mm).
Min paper size: approximately 10.5 x 18 cm.
Max printing area: approximately 34 x 50.5 cm.
Paper thickness range: approximately 0.04 mm up to 0.40 mm (typical for this class).
Printing system: Sheetfed offset lithographic system.
Inking system: Conventional Heidelberg inking system with oscillating rollers.
Dampening system: Conventional dampening system (alcohol dampening optional).
Max speed: up to 8,000 sheets / hour.
Feeder type: Friction / suction feeder with manual or semi-automatic feeding.
Delivery system: Standard delivery with optional powder spray unit.
Registration: Mechanical side lays with precise gripper system.
Special features (optional depending on version):
Numbering unit
Perforating unit
Plus version (GTO 52+) with additional accessories
Applications:
Business cards
Flyers and brochures
Forms and stationery
Short-run commercial printing
Machine dimensions (L x W x H): approximately 1.35 m x 1.40 m x 1.55 m.
Total weight: approximately 1,370 kg.
Power supply: 380V industrial supply.
Power consumption: approximately 2.0 kW.
